swaploader SL-212 - Page 71

Section V: Parts
5.0.PAR.SL-212

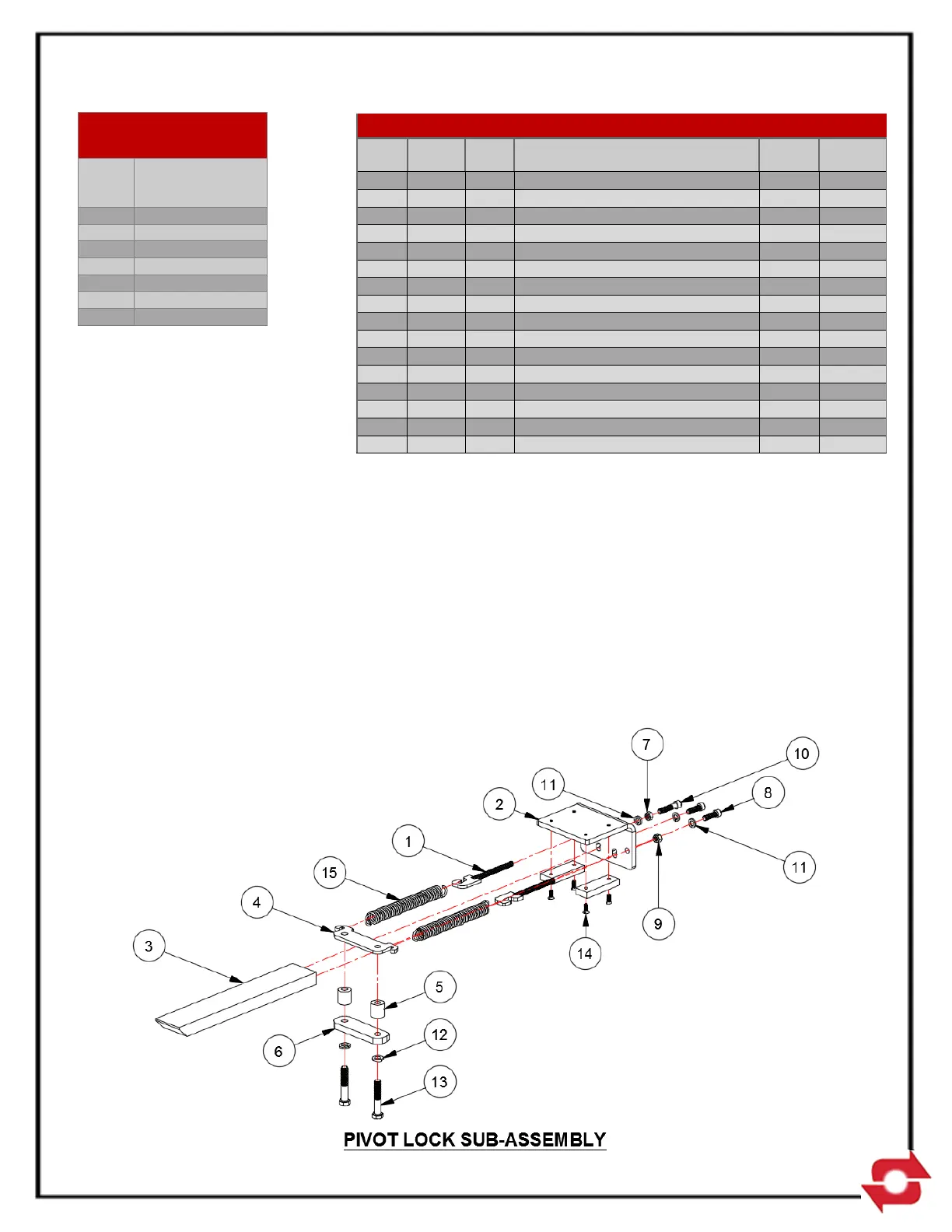

13H06 – PIVOT LOCK SUB-ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 13H24 2
Take Up Wdmt, 3/8-16UNCx4-1/2
0.21 0.42
2 25H72 1
Slide, Pivot Lock, SL-212
4.90 4.90
3 25H74 1 Pivot Lock Bar, SL-212 10.07 10.07
4 25H76 1
Retainer, Lock Bar, SL-212
0.58 0.58
5 25H77 2
Spacer, Pivot Lock 1-1/8
0.10 0.20
6 25H78 1
Spring Plate, SL-212
0.98 0.98
7 00P14 1
Nut, Hex 3/8-16 UNC Gr8
0.02 0.02
8 00P32 2
SHCS 3/8-16 UNC x 1-1/4
0.07 0.14
9 00P34 2
Nut, Lock 3/8-16
0.02 0.04
10 00P79 4
FHCS 3/8-16 UNC x 3/4 Brass
0.09 0.36
11 01P20 1
SHCS 3/8-16 UNC x 1-3/4 Gr8
0.07 0.07
12 01P28 3
Washer, Lock, Disc 3/8 Pr
0.01 0.03
13 01P30 2
Washer, Lock, Disc 1/2 Pr
0.02 0.04
14 01P65 2
1/2-13 UNC X 2-3/4 HHCS GR-8
0.01 0.02
15 90P04 2 Spring, Extension 7/8 OD x 6 Lg 0.40 0.80
16 91P21 2
Wear Pad, 1-1/4 x 1/2 x 3-1/2
0.09 0.18
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-5
