swaploader SL-212 - Page 72

Section V: Parts
5.0.PAR.SL
-
212

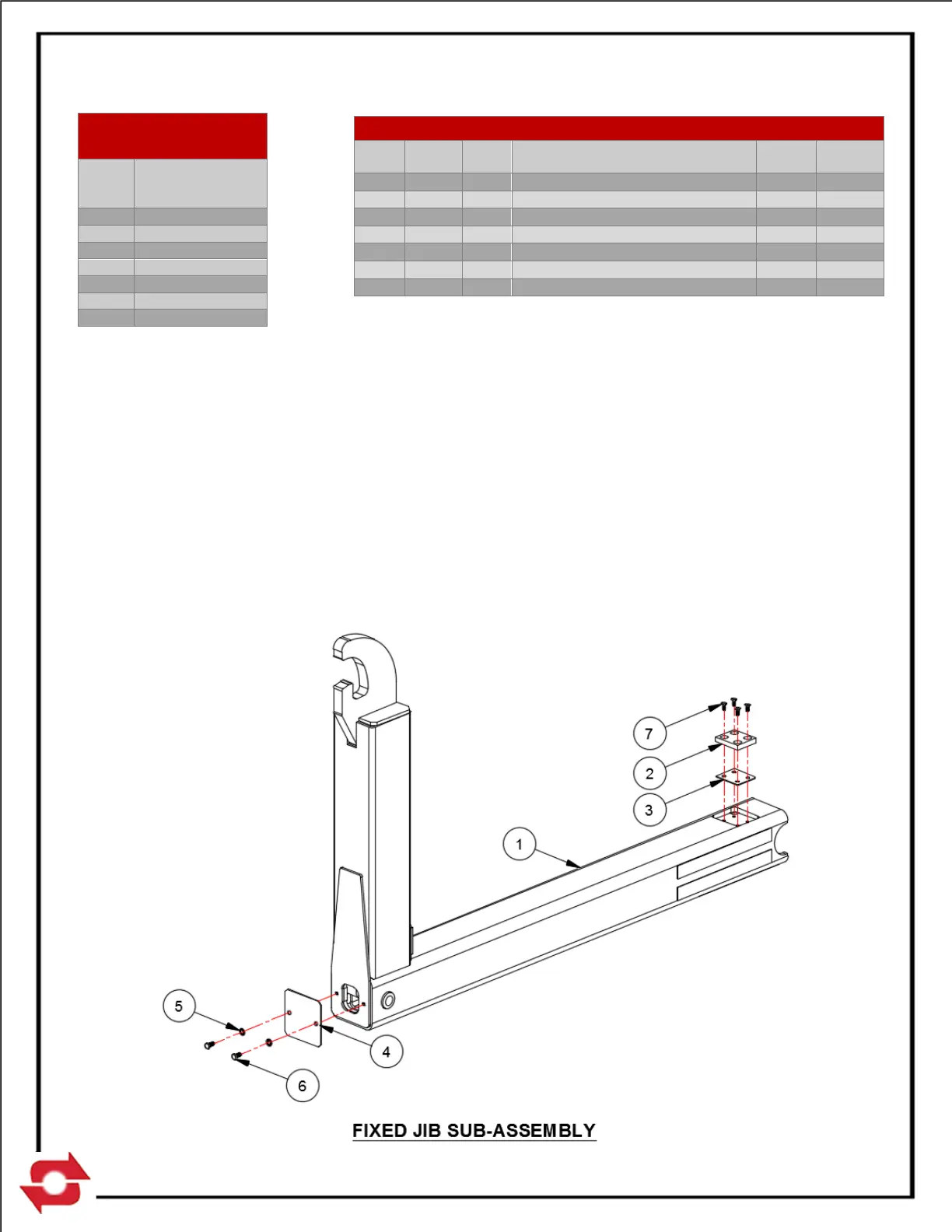

13H08 – FIXED JIB SUB-ASSEMBLY SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1 13H19 1
Fixed Jib Weldment 36"
310.44 310.44
2 23H54 1
Wear Pad, 2-3/4x1/2x3-1/4
0.19 0.19
3 24H67 1
Shim, Jib 2-3/4 x 14GA x3-1/4
0.20 0.20
4 62H11 1
Cover, Jib 5-1/4x11GAx5-1/4
0.90 0.90
5 00755 2
Washer, Lock - 3/8 Dia
0.03 0.06
6 00P03 2
HHCS 3/8-16 UNC x 3/4
0.04 0.08
7 01P50 4
FHCS 5/16-18 UNC x 3/4
0.02 0.08
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-6
