swaploader SL-212 - Page 73

Section V: Parts
5.0.PAR.SL-212

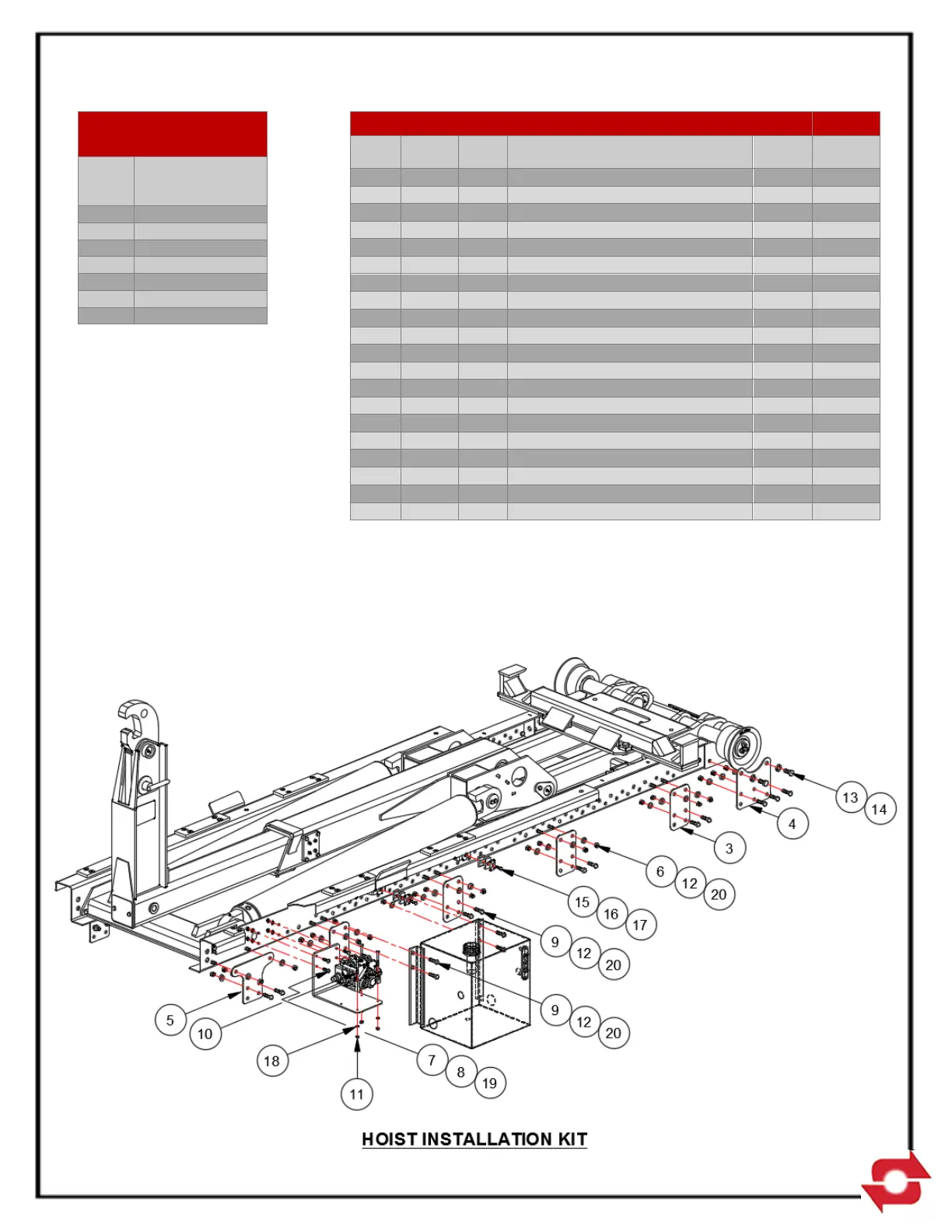

13H25 – HOIST INSTALLATION KIT SL-212
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
*
1 13H09 1
Parts & Op, SL-212
1.00 1.00
*
2 13H10 1
Decal Assembly, SL-212
0.74 0.74
3 25H89 8
Mount Bkt, 8 1/4 x 5
2.08 16.64
4 25H90 2
Mount Bkt, 8 1/4 x 8 3/4
4.41 8.82
5 25H91 2
Mount Bkt, 8 1/4 x 11
3.68 7.36
6 00P01 20
HHCS 1/2-13 UNC x 1-1/2 Gr8
0.21 4.20
7 00P13 4 HHCS 3/8-16 UNC x 1-1/4 Gr8 0.10 0.40
8 00P14 4
Nut, Hex 3/8-16 UNC Gr8
0.02 0.08
9 00P15 30
HHCS 1/2-13 UNC x 1-3/4 Gr8
0.20 6.00
10 00P19 3
HHCS 5/16-18 UNC x 2-3/4
0.02 0.06
11 00P20 3
Nut, Hex 5/16-18 UNC
0.10 0.30
12 00P35 50
Nut, Lock 1/2-13 UNC
0.05 2.50
13 00P56 4
HHCS 5/8-11 UNCS x 1-1/2
0.18 0.72
14 01P31 4
Washer, Lock, Disc 5/8 Pr
0.03 0.12
15 10P28 2
HHCS 5-16 x 1-1/4
0.03 0.06
16 10P29 2
Cover Plate, Clamp 7/8
0.10 0.20
17 10P30 2
Clamp Assy, Twin, 1/2"
0.04 0.08
18 00752 3
Washer, Lock - 5/16 Dia
0.03 0.09
19 00755 4 Washer, Lock - 3/8 Dia 0.03 0.12
20 00784 50
Washer, Flat - 1/2 Dia HT
0.01 0.50
* Item not shown.
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT-LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-7
