swaploader SL-214 - EHV Installation w; U-Lock (Option)

Section II: Installation
2.0.INS.SL
-
214
EHV INSTALLATION w/ U-LOCK (OPTION)
1. Review all directions and diagrams provided before starting the Electric over Hydraulic Valve
Installation.

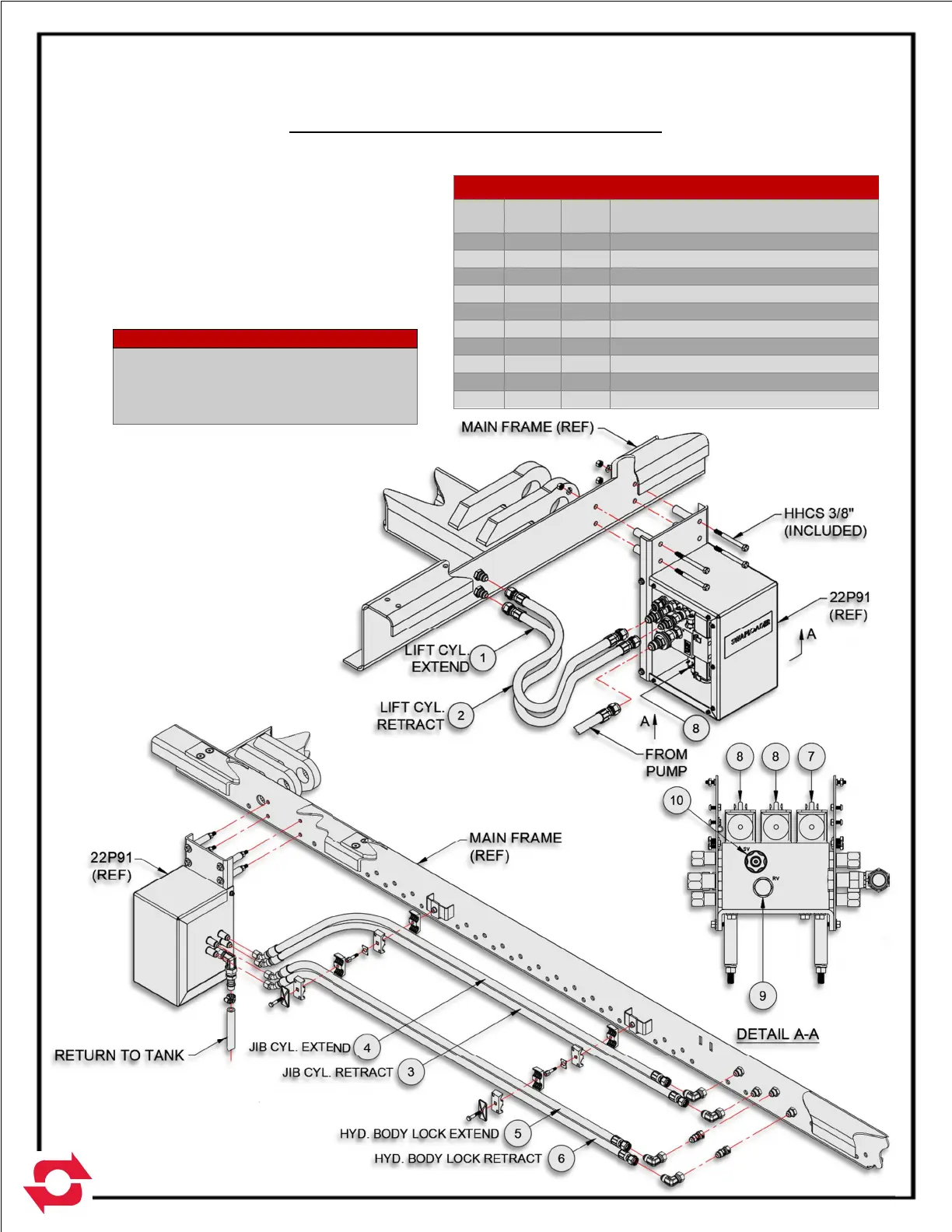

2. Mount the 22P91 EHV to the hoist’s
Main Frame and attach all hoses, hose
clamp assemblies and fittings as
shown on Pg. 6-12 (also see
Illustrations).
Electric Over Hyd. Valve - SERVICE PARTS SL-214
ITEM
PART
#
QTY DESCRIPTION
1
12P53
1
Hose Assy 21 08-08FJ/08FJ45
2
12P59
1
Hose Assy 20 08-08FJ/08FJ45
3
13P29
1
Hose Assy 75 08-08FJ/08FJ45
4
13P35
1
Hose Assy 72.5 08-08FJ/08FJ45
5
13P81
1
Hose Assy 77.5 08-08FJ/08FJ45
6
13P88
1
Hose Assy 82 08-08FJ/08FJ45
7
22P82
1
Solenoid Operated Valve, Motor
8
22P83
2
Solenoid Operated Valve, Cylinder
9
22P84
1
Relief Valve Cartridge, 3250
10
22P85
1
Dump Valve
NOTE:
THE FIGURES BELOW DO NOT NECESSARILY
DEPICT YOUR HOIST AND ARE ONLY MEANT
TO ILLUSTRATE ROUTING OF THE HYDRAULIC
LINES FROM THE VALVE TO THE CYLINDERS
2-10
