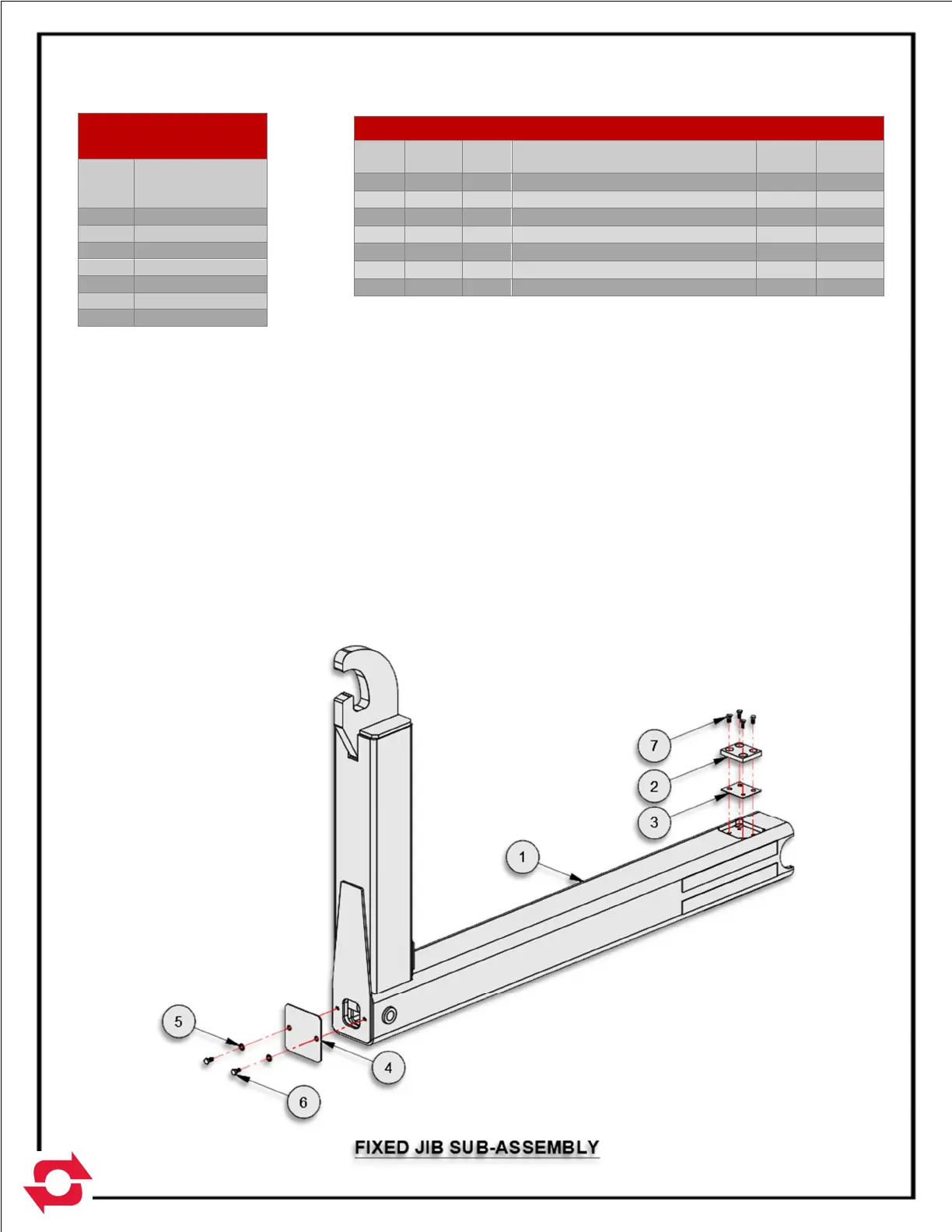

13H08 – FIXED JIB SUB-ASSEMBLY SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H19
1
Fixed Jib Weldment 36"
310.44
310.44
2
23H54
1
Wear Pad, 2-3/4x1/2x3-1/4
0.19
0.19
3
24H67
1
Shim, Jib 2-3/4 x 14GA x3-1/4
0.20
0.20
4
62H11
1
Cover, Jib 5-1/4x11GAx5-1/4
0.90
0.90
5
00755
2
Washer, Lock - 3/8 Dia
0.03
0.06
6
00P03
2
HHCS 3/8-16 UNC x 3/4
0.04
0.08
7
01P50
4
FHCS 5/16-18 UNC x 3/4
0.02
0.08
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
