swaploader SL-214 - Main Frame Sub-Assembly; Pivot Joint Sub-Assembly; Outer Tube Sub-Assembly

Section V: Parts
5.0.PAR.SL-214
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400

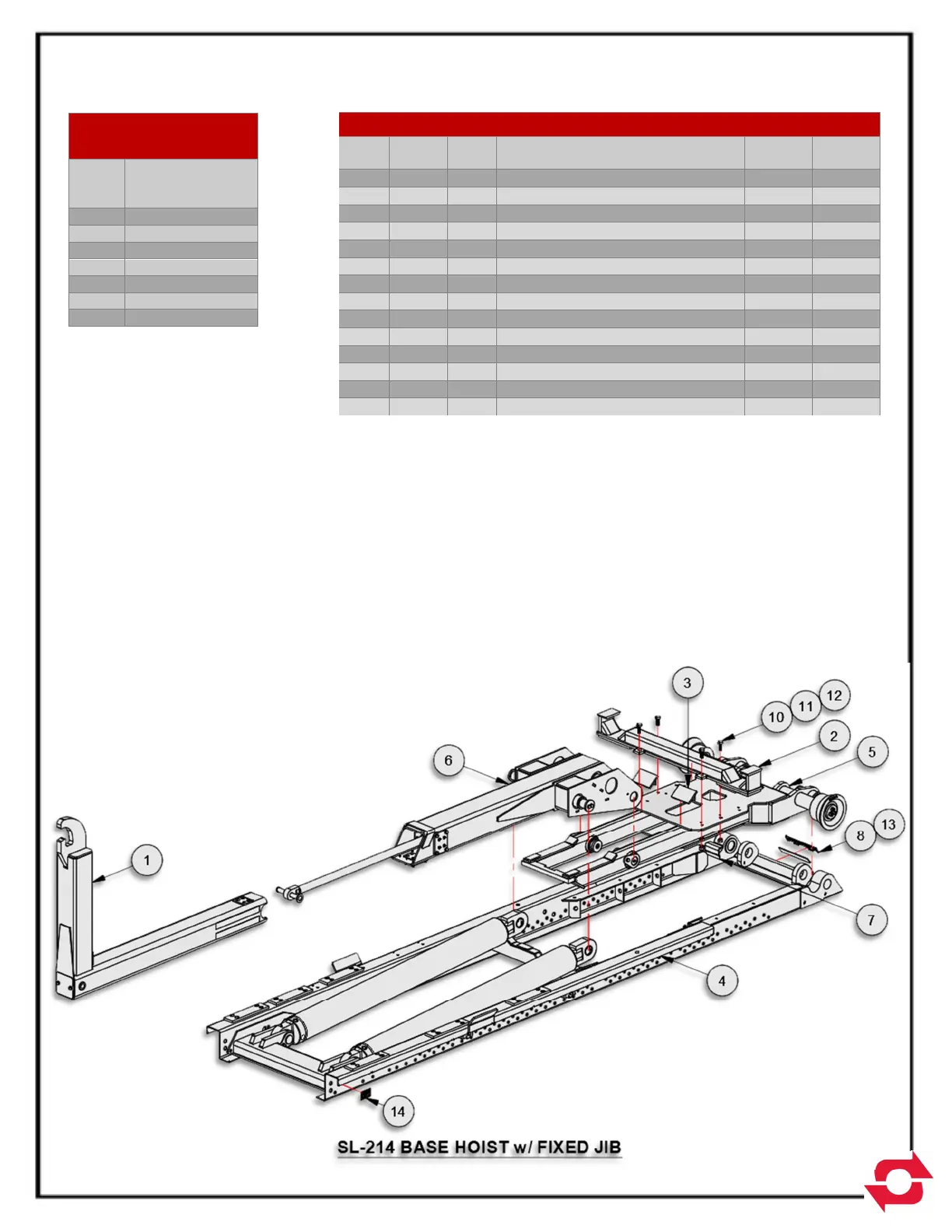

13H51 - BASE HOIST ASSEMBLY SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H08
1
Fixed Jib Sub-Assembly 291.80 291.80
2
13H22
1
Body Lock Weldment 87.31 87.31
3
13H48
2
Tube Stop Weldment 3.02 6.04
4
13H52
1
Main Frame Sub-Assembly 1175.37 1175.37
5 13H53 1
Pivot Joint Sub-Assembly 560.29 560.29
6 13H54 1 Outer Tube Sub-Assembly 435.50 435.50
7
23H56
1
Lockout Valve Ramp 1.20 1.20
8
62H99
1
Logo Name Plate .29 .29
*
9
90H92
1
Base Cylinder Circuit 21.44 21.44
10
00767
4
Washer, Lock - 5/8 Dia 0.43 0.43
11
00P24
4
Nut, Hex 5/8-11 UNC Gr8 0.09 0.36
12
00P91
4
HHCS 5/8 - 11 x 1-3/4 Gr8 0.31 1.24
13
90P90
1
Name Plate Insert 0.09 0.09
14
91P33
1
Serial Tag 0.02 0.02
* Item not shown.
