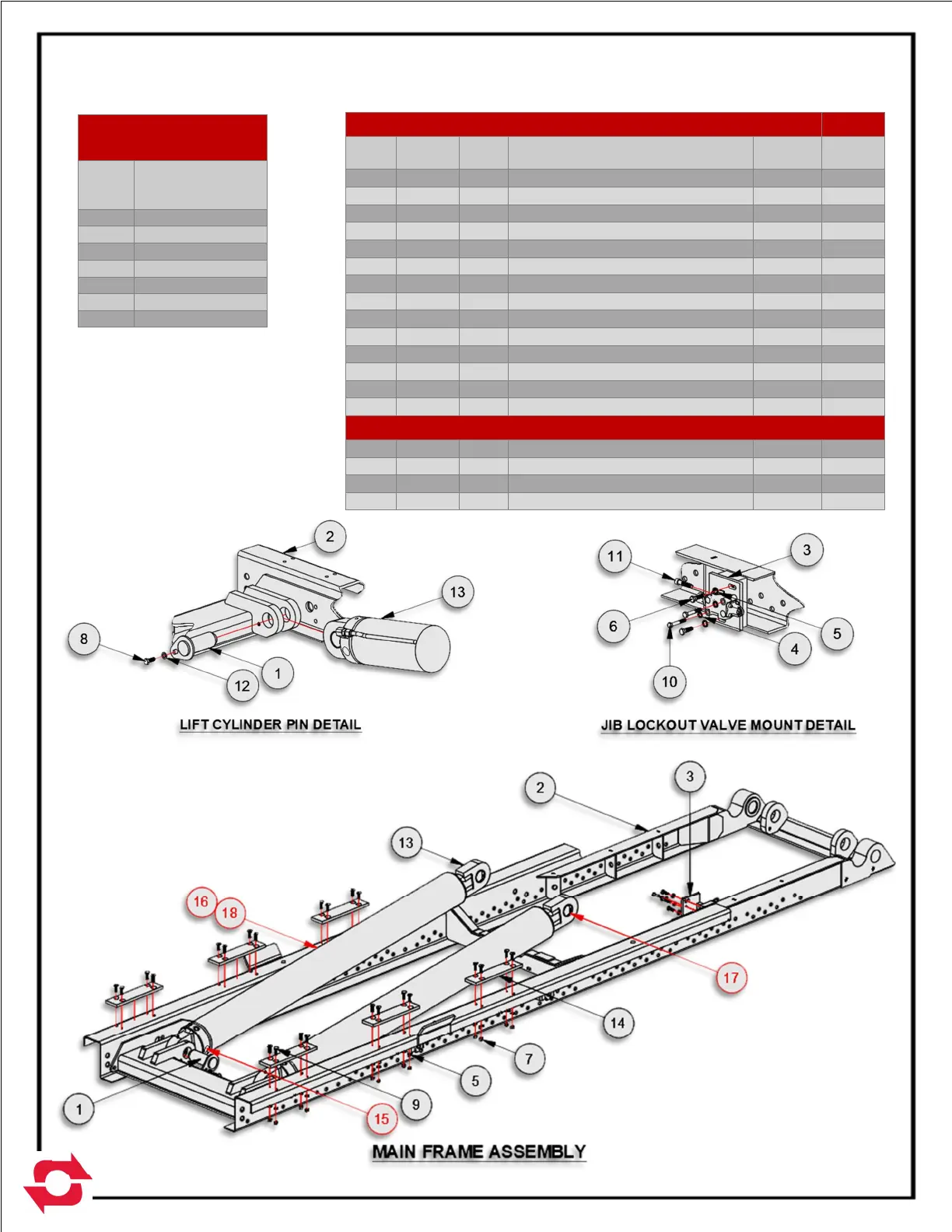

13H52 – MAIN FRAME SUB-ASSEMBLY SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
12H29
2
Main Frame Pin
5.50
11.00
2
13H55
1
Main Frame Weldment
553.36
553.36
3
42H11
1
Jib Lockout Mnt Wdmt, 5x4-1/4
2.39
2.39
4
00752
2
Washer, Lock - 5/16 Dia
0.03
0.06
5 00755 26
Washer, Lock - 3/8 Dia
0.03 0.78
6 00P13 2 HHCS 3/8-16 UNC x 1-1/4 Gr8 0.10 0.20
7
00P14
24
Nut, Hex 3/8-16 UNC Gr8
0.02
0.48
8
00P31
2
HHCS 182-13 UNC x 1-1/4
0.10
0.20
9
00P68
24
FSCS 3/8-16 UNC X 1-1/4 SS
0.11
2.64
10
01P08
2
HHCS 5/16-18 x 2 Gr8
0.12
0.24
11
01P20
1
SHCS 3/8-16 UNC x 1-3/4 Gr8
0.07
0.07
12
01P30
2
Washer, Lock, Disc 1/2 Pr
0.02
0.04
13
22P89
2
Hyd Cyl 5.5x2.5x54
301.65
603.30
14
90P71
6
Wear Pad, 2-3/4x1/2x11-3/4
0.70
4.20
LIFT CYLINDER SERVICE PARTS
15
21P11
2
Counterbalance Valve Cartridge
16
22P69
1
Seal Kit
17
22P70
2
Bronze Bearing
18
22P1
1
1
Hydraulic Return Line
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
