swaploader SL-214 - Hoist Installation Kit (EHV)

VI: Options
6.0.OPT.SL-214

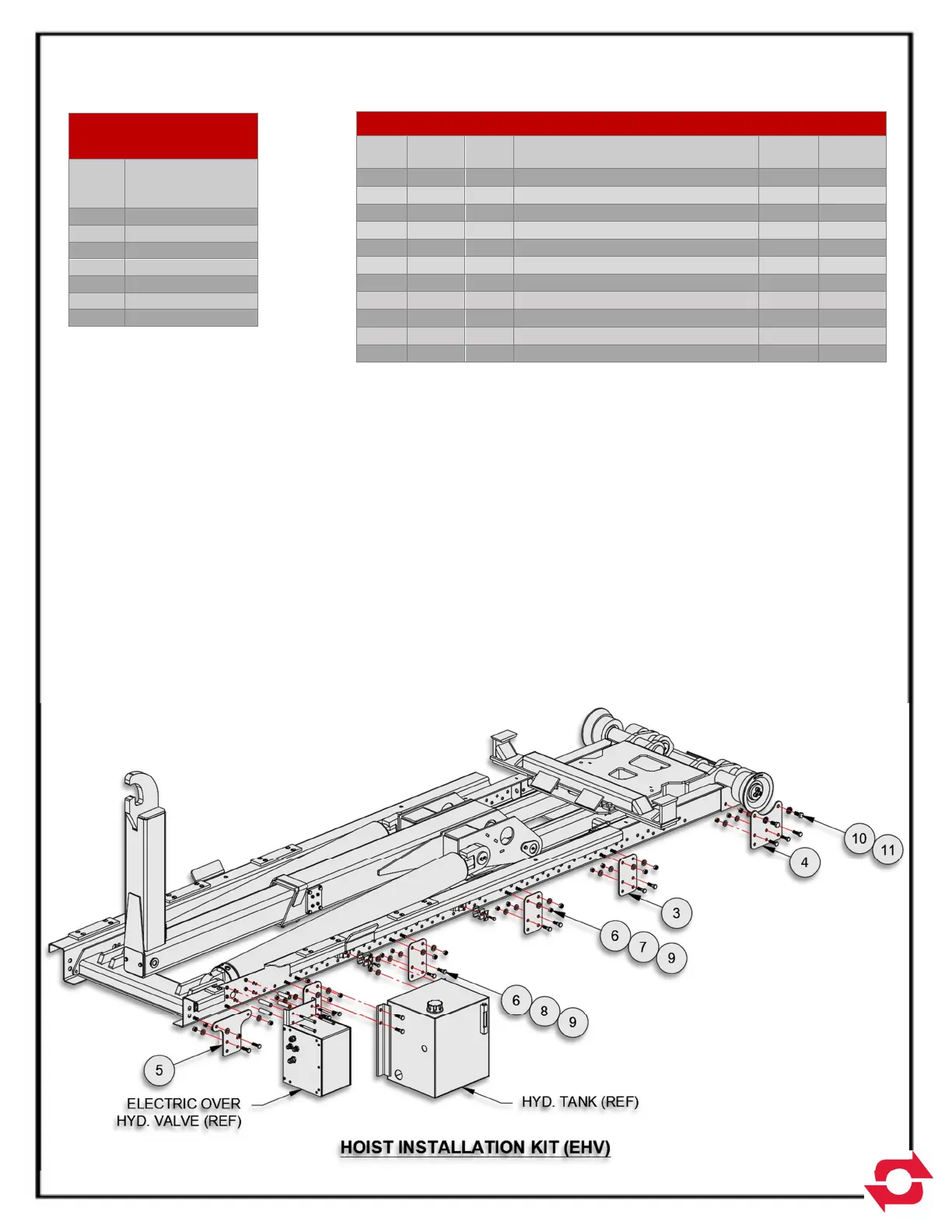

13H63 – HOIST INSTALLATION KIT (EHV) SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H
61
1
Parts & Op, SL-214
1.00
1.00
2
13H62
1
Decal Assembly, SL-214
0.74
0.74
3
25H89
8
Mount Bkt, 8 1/4 x 5
2.08
16.64
4
25H90
2
Mount Bkt, 8 1/4 x 8 3/4
4.41
8.82
5
25H91
2
Mount Bkt, 8 1/4 x 11
3.68
7.36
6
00784
50
Washer, Flat - 1/2 Dia HT
0.01
0.50
7
00P01
20
HHCS 1/2-13 UNC x 1-1/2 Gr8
0.21
4.20
8
00P15
30
HHCS 1/2-13 UNC x 1-3/4 Gr8
0.20
6.00
9 00P35 50 Nut, Lock 1/2-13 UNC 0.05 2.50
10
00P56
4
HHCS 5/8-11 UNCS x 1-1/2
0.18
0.72
11
01P31
4
Washer, Lock, Disc 5/8 Pr
0.03
0.12
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
6-9
