swaploader SL-214 - Page 83

Section V: Parts
5.0.PAR.SL-214

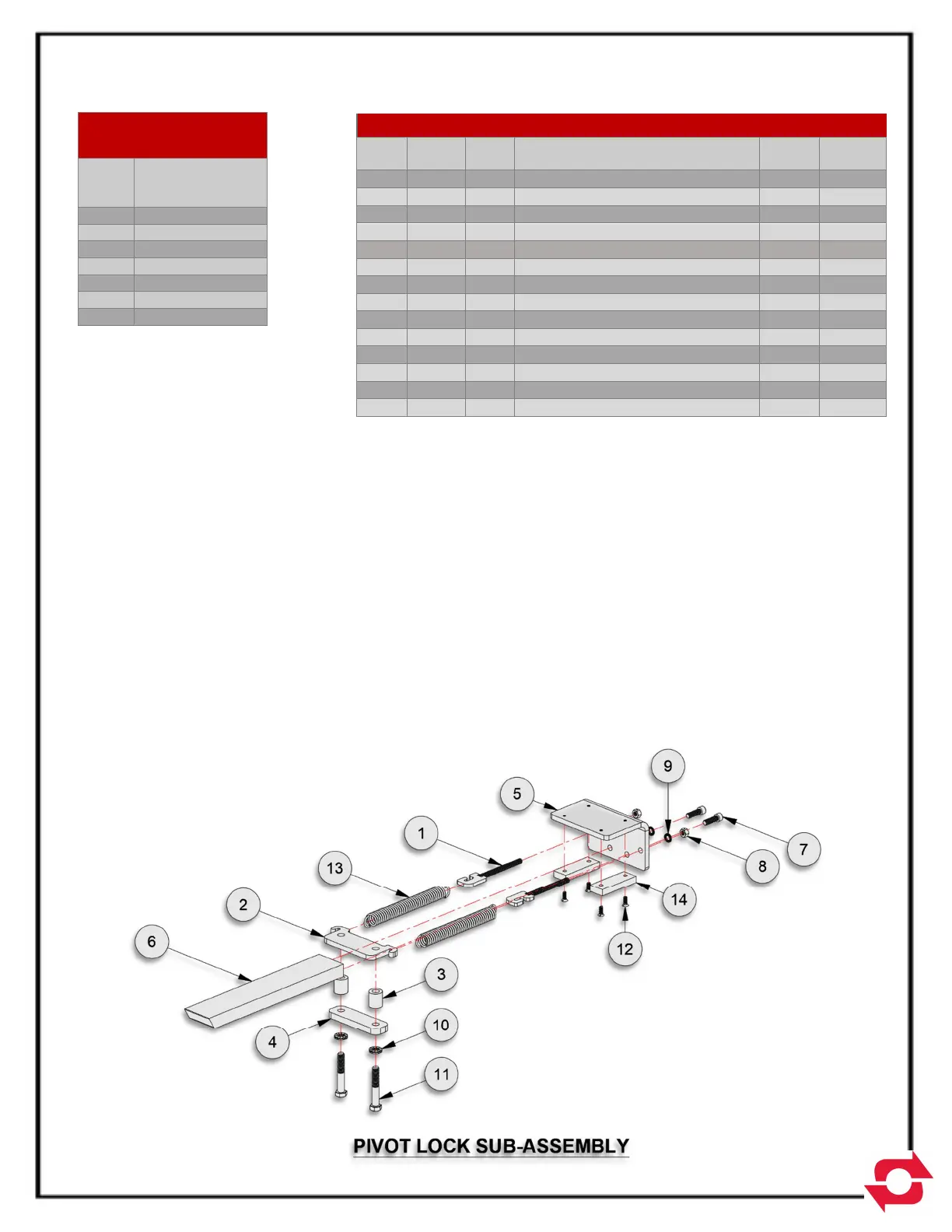

13H06 – PIVOT LOCK SUB-ASSEMBLY SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
13H24
2
Take Up Wdmt, 3/8-16UNCx4-1/2
0.21
0.42
2
25H76
1
Retainer, Lock Bar
0.58
0.58
3
25H77
2
Spacer, Pivot Lock 1-1/8
0.10
0.20
4 25H78 1
Spring Plate, SL-212
0.98 0.98
5 27H05 1 Safety Latch Lever 4.75 4.75
6
27H06
1
Pivot Lock Bar
9.60
9.60
7 00P32 2 SHCS 3/8-16 UNC x 1-1/4 0.07 0.14
8
00P34 2 Nut, Lock 3/8-16 0.02 0.04
9
01P28 2 Washer, Lock, Disc 3/8 Pr 0.01 0.02
10
01P30 2 Washer, Lock, Disc 1/2 Pr 0.02 0.04
11
01P48
2
HHCS 1/2-13 UNC x 3 Gr8
0.20
0.40
12
01P67
4
FHCS 1/4-20 UNC x 3/4 Brass
0.01
0.04
13
90P04
2
Spring, Extension 7/8 OD x 6 Lg
0.47
0.94
14
91P21
2
Wear Pad, 1-1/4 x 1/2 x 3-1/2
0.08
0.16
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-5
