swaploader SL-214 - Page 82

Section V: Parts
5.0.PAR.SL-214

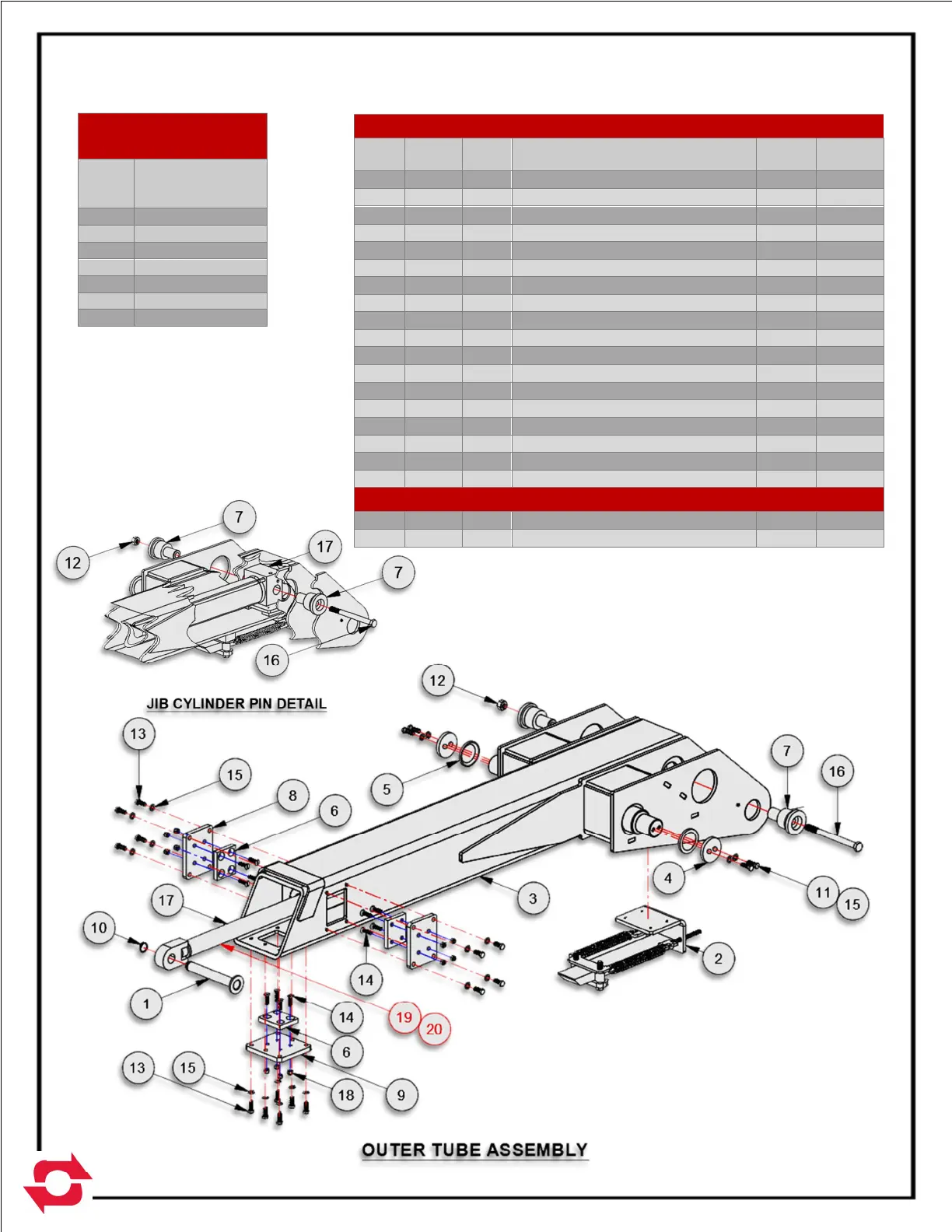

13H54 – OUTER TUBE SUB-ASSEMBLY SL-214
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-
lb/all
1
10H08
1
Pin, Jib/Cyl 1 x 6-3/4
1.70
1.70
2
13H06
1
Pivot Lock Sub-Assembly
19.15
19.15
3 13H15 1
Outer Tube Weldment
308.30 308.30
4 20H19 2 Pin Cap, 3/8 x 2-3/4 0.60 1.20
5
20H21
2
Spacer, 3/8 x 2-3/4OD
0.20
0.40
6
23H54
3
Wear Pad, 2-3/4x1/2x3-1/4
0.19
0.57
7
24H68
2
Pin, OT/Cyl 1-1/4 x 1-7/8
2.40
4.80
8
25H71
2
Jib Clamp, Outer
2.83
5.66
9
26H68
1
Jib Clamp, Under
3.54
3.54
10
00P05
1
Snap Ring, Ext 1 Shaft
0.01
0.01
11
00P13
4
HHCS 3/8-16 UNC x 1-1/4 Gr8
0.10
0.40
12
00P55
1
Nut, Lock 5/8-11 UNC Gr8
0.13
0.13
13
00P62
14
HHCS 3/8-16 UNC x 1 Gr8
0.05
0.70
14
01P16
12
FHCS 5/16-18 UNF x 1-1/4 Brass
0.03
0.36
15 01P28 18
Washer, Lock, Disc 3/8 Pr
0.01 0.18
16 01P43 1 HHCS 5/8-11 UNC x 7-1/2 Gr8 0.75 0.75
17
21P91
1
Hyd Cyl 3x1.75x36
93.10
93.10
18
23001
12
Nut, Nylock 5/16
0.01
0.12
SERVICE PARTS FOR JIB CYLINDER 21P91
19
20P28
1
C’Bal Cart, 3000 PSI CBCA-LHN
0.40
0.40
20 21P95 1
Seal Kit, Cyl (20P51 & 21P91)
0.10 0.10
DISC-LOCK WASHER
TORQUE SPECS
BOLT
SIZE
SAE GR 8
ASS’Y TORQUE
(FT
-
LBS)
3/8
50
7/16
80
1/2
120
5/8
230
3/4
380
7/8
400
1
400
5-4
