swaploader SL-214 - Page 45

Section II: Installation - Accessories
2.6.INS.ACC.11H99

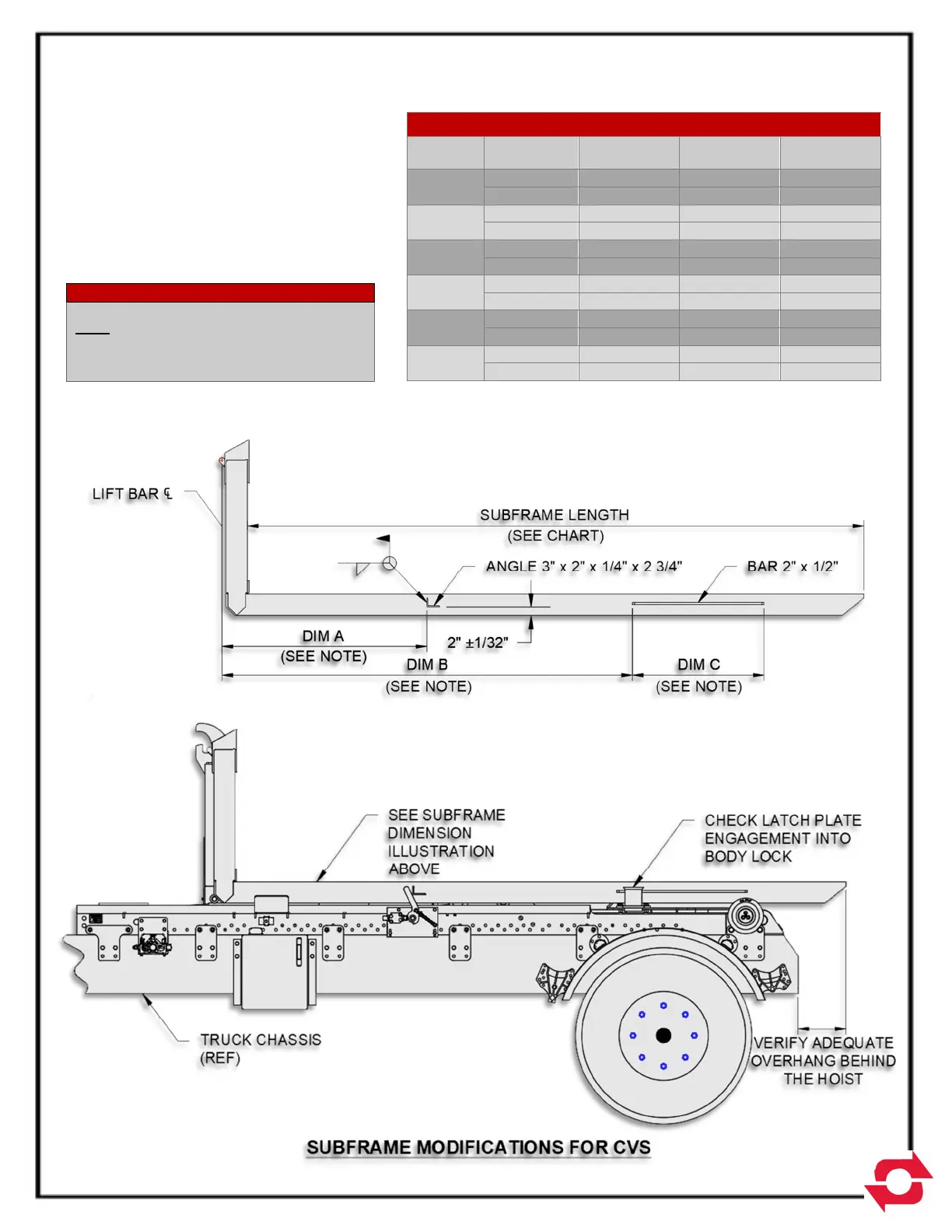

DIMENSIONS CHART
HOIST
SUBFRAME
LENGTH
A B
C
MINIMUM
SL-145
SL-212
10’-0” 40” 95” 12”
11’-0” 52” 95” 18”
SL-214
12’-0” 49” 95” 12”
13’-0” 61” 95” 18”
SL-220
SL-222
14’-0” 74 1/2" 124 5/8” 12”
16’-0” 98 1/2" 124 5/8” 18”
SL-240
12’-0” 58 1/2” 112 5/8” 12”
13’-0” 70 1/2" 112 5/8” 18”
SL-330
SL-400
12’-0” 75 1/4" 125” 12”
13’-0” 75 1/4" 125” 12”
SL-406
16’-0” 76” 134” 12”
17’-0” 88” 134” 24”
NOTE:
DIMENSIONS GIVEN ARE RECOMMENDATIONS
ONLY. IT IS THE RESPONSIBILITY OF THE
INSTALLER TO VERIFY THAT ADEQUATE REAR
END OVERHANG AND LATCH PLATE
ENGAGEMENT INTO BODY LOCK EXISTS.
2-33
