Section III: Operation
3.0.OPE.SL-214
CHANGING HOOK HEIGHT: 54” TO 36” JIB HEIGHT ADJUSTMENT PROCEDURE

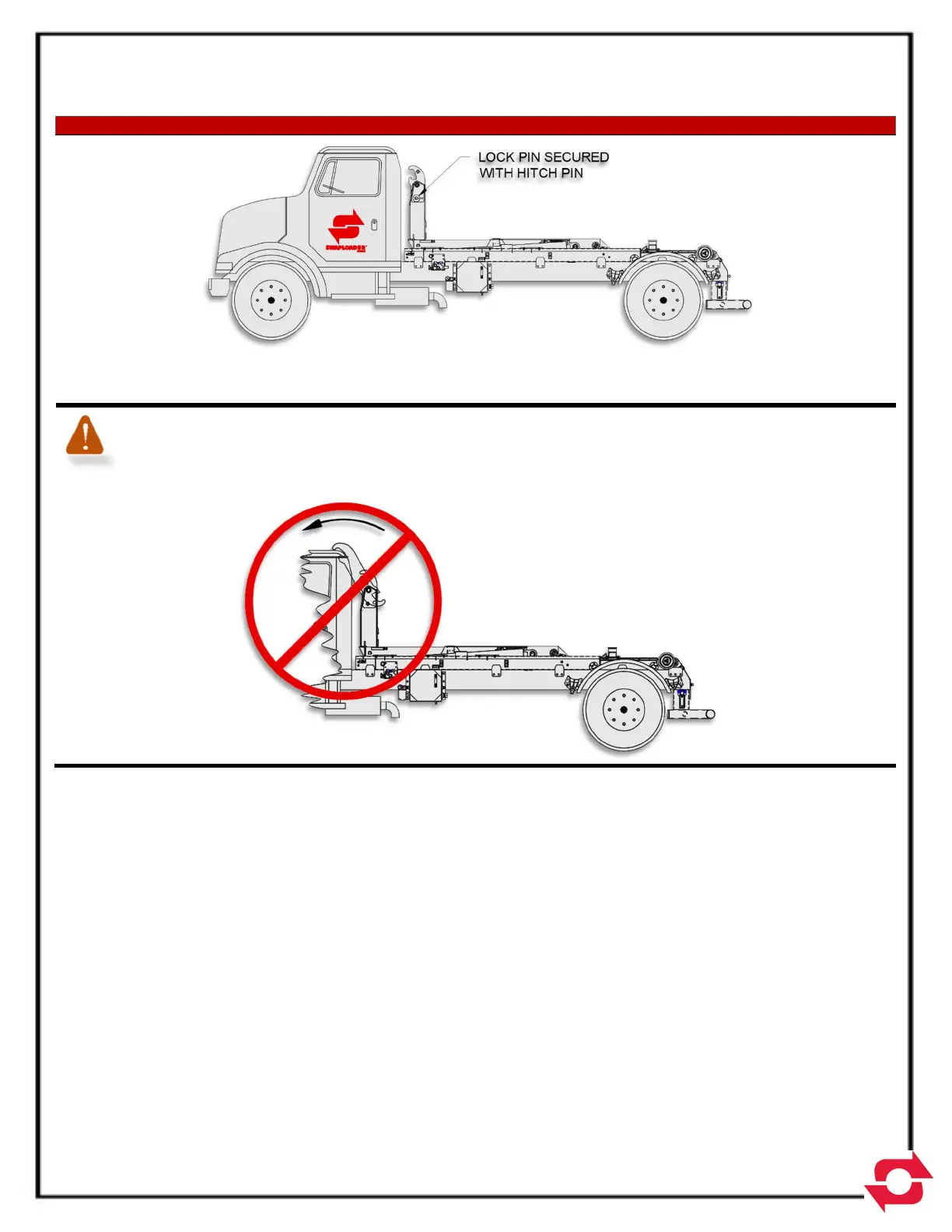

STEP 4. WITH THE TELESCOPIC JIB FULLY EXTENDED IN THE TRANSPORT POSITION (AS SHOWN); REPLACE THE
LOCK PIN AND SECURE WITH HITCH PIN.
WARNING:
DO NOT REMOVE LOCK PIN ON THE ADJUSTABLE JIB WHILE JIB IS IN THE 54” HOOK POSITION AND
THE TELESCOPIC ARM IN TRANSPORT POSITION (AS SHOWN). POSSIBLE PROPERTY DAMAGE AND/OR
PERSONAL INJURY MAY RESULT.
