3. Smart control panel
All ventilation unit functions can be controlled
and the settings can be changed by means of a
Smart control panel.
The control panel is equipped with a colour
screen and three touch buttons. When the
panel is not used it enters standby mode. The
control panel leaves standby mode when any
button is touched.
The control panel has a built-in temperature
sensor which can be used as room tempera-
ture measurement.

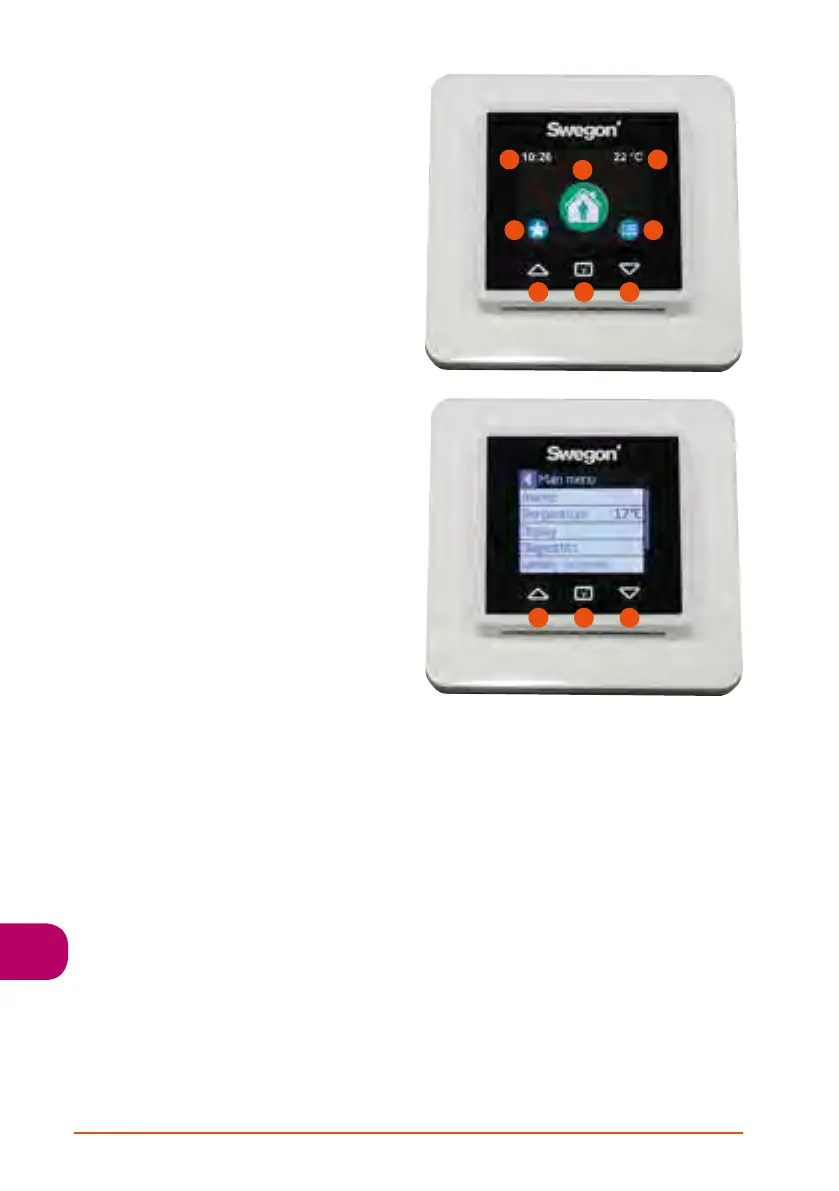

3.1 Description of the control
panel
1. Time display. (Hidden by default.)
2. Temperature display. (Hidden by default.)
3. Button 6 action.
In basic screen Smart functions menu.
4. Operating mode symbol.
5. Button 8 action.
In basic screen Main menu.
6. Up button
In basic screen opens Smart functions
menu.
In menu screen moves cursor up or
increases the selected value. Long press
moves the cursor to top.
7. Select button
In the basic screen changes the operat-
ing mode or disables the automatic boost
function temporarily.
In the menu activates or confirms selected
setting or function. Long press returns the
view to basic screen.
8. Down button
In basic screen opens Main menu.
In menu screen moves cursor down or
decreases the selected value. Long press
moves the cursor to bottom.
1 2
3
4
5
6 7 8
6 7 8
