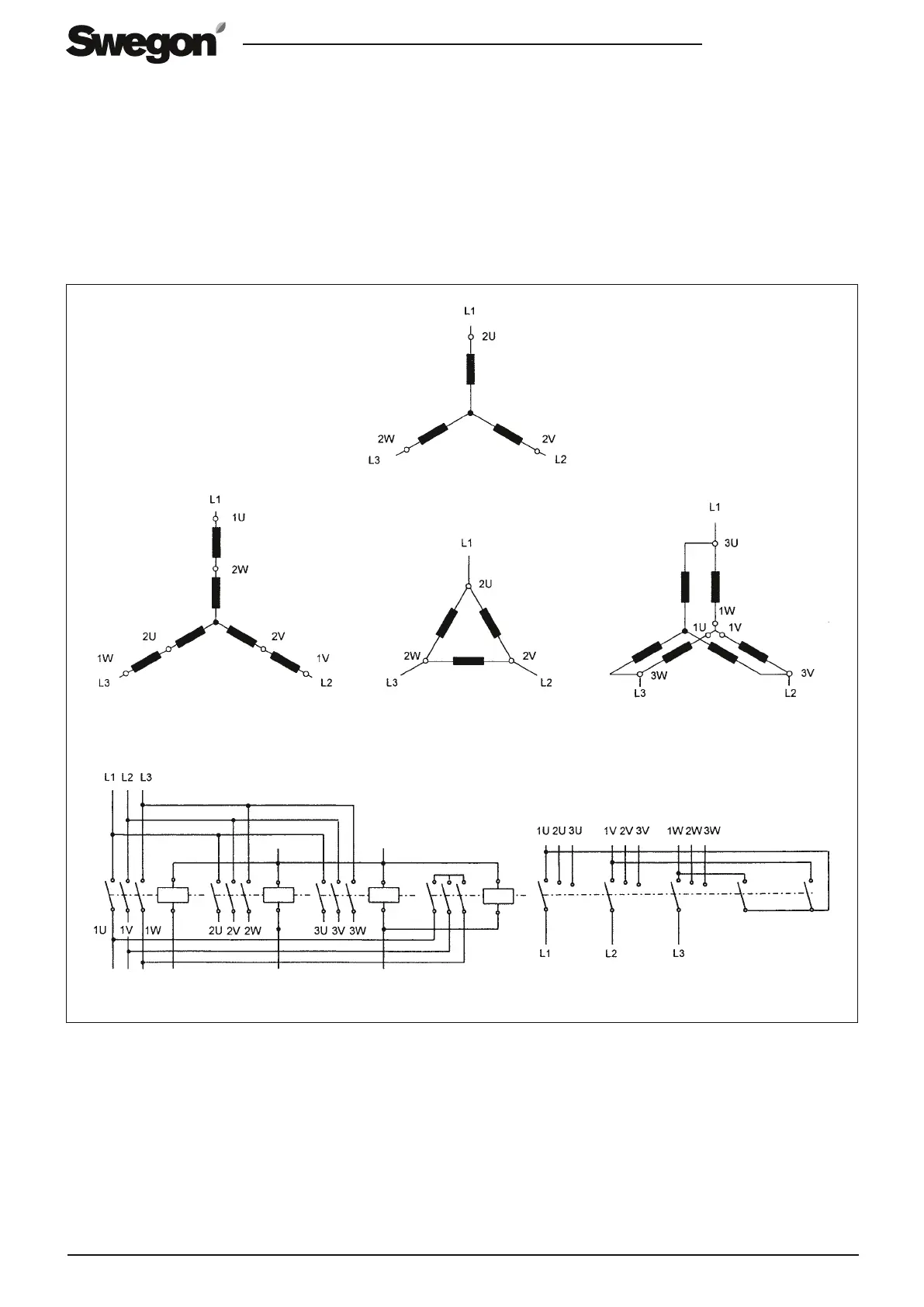

Couplings for three speeds
Two separate stator windings one of which is Dahlander
wound) Nine terminals are required here.
Version for 750/1000/1500 r/min. fan drives and 8/6/4
poles respectively; 750/1500 r/min. in Dahlander coupling.
750 r/min. 1500 r/min.1000 r/min.
Phase-winding version
Relay control Pole-changing switch
or
EN.SILVER.110322
The company reserves the right to make design changes without prior notice.
