SERVICES
54

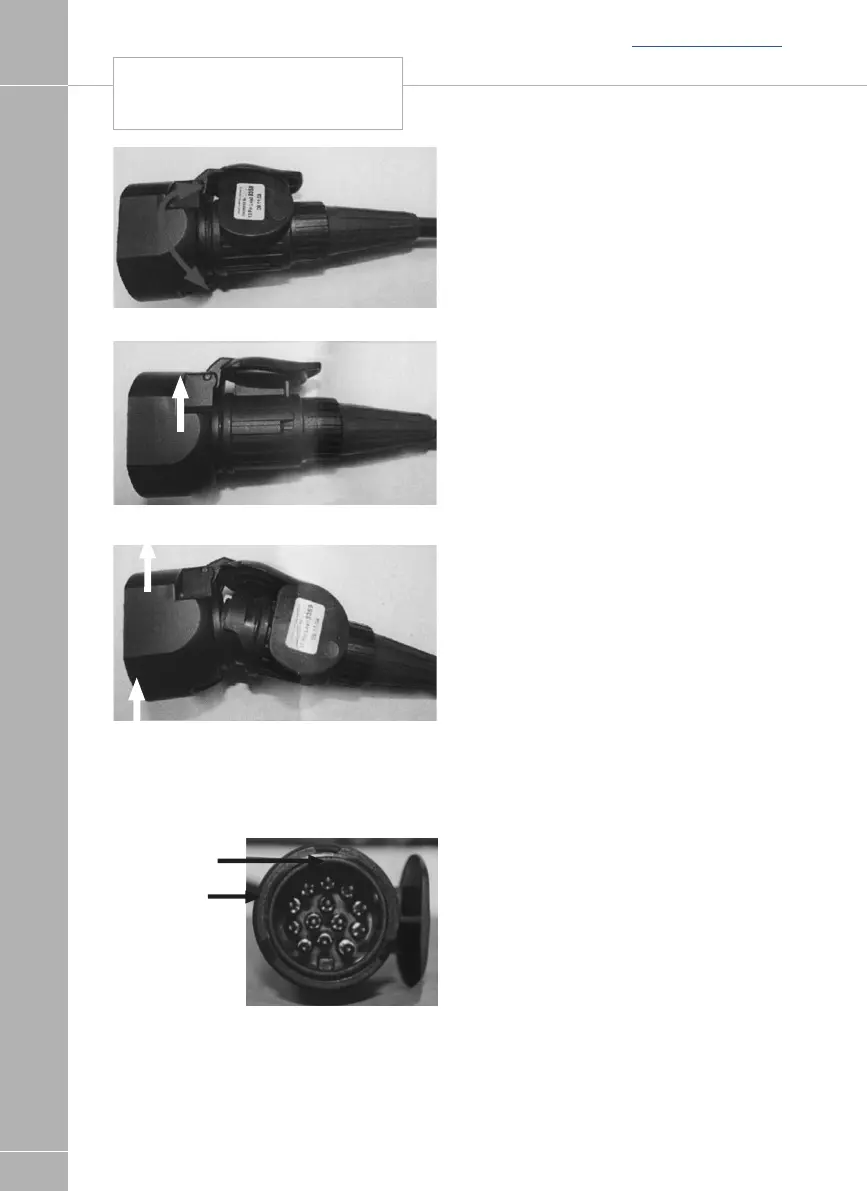

Fig. 6
Fig. 7
Fig. 8
Plug inner ring
(containing
male pin
terminals fitted
to the caravan)
Plug outer
body with locating
groove and hood
fitted to the
caravan)
Fig.9
230V mains electrical equipment
power consumption
Note: It is possible that the 230v mains
electrical equipment may not all operate
simultaneously. A typical UK site mains hook
up point provides a maximum output of 10
amps and on some continental sites the
available output may be as low as 5 amps.
If your loading exceeds the site supply it may
trip the site circuit breaker. Please check the
available mains supply with your site operator.
Similarly loadings on each circuit breaker within
the caravan should be observed.
A label positioned close to the MCB’s
(Miniature Circuit Breakers will identify which
appliances within the caravan are fed from
which MCB. Consulting the typical appliance
consumption figures table in conjunction
with this label, will give an indication of which
appliances can, and cannot, (site supply
allowing), be operated simultaneously.
13 PIN CONNECTION
