Swift caravan User Manual

TERMINAL COLOUR 12N PLUG
1 YELLOW L/H INDICATOR
2 BLUE REAR FOG LAMP
3 WHITE COMMON RETURN (1-7)
4 GREEN R/H INDICATOR
5 BROWN R/H SIDE TAIL & No PLATE LIGHT
6 RED STOP LAMP
7 BLACK L/H SIDE TAIL & No PLATE LIGHT
TERMINAL COLOUR 12S PLUG
1 YELLOW REVERSING LIGHT
2 BLUE NO ALLOCATION
3 WHITE NEGATIVE PIN 4
4 GREEN CONTINUOUS POWER SUPPLY
5 BROWN NO ALLOCATION
6 RED FRIDGE
7 BLACK RETURN FOR FRIDGE
ROAD LIGHTING
For your information the wiring diagram of the
12N and 12S connectors is shown opposite.
These should be checked regularly and if in
any doubt a qualified electrician consulted.
Some European cars may be equipped with
Volta, Jeager, West or multi-con sockets, an
adaptor or replacement sockets may be
required. If so consult your dealer or qualified
electrician.
The wiring allocations were changed in 1998
and it is important that you check the car to
caravan connections are compatible prior to
coupling up to the car.
WARNING: Always disconnect the
electrical connector between the towing
vehicle and the caravan before
connecting a low voltage supply to the
caravan (mains) and before charging the
battery (EN 1648-1).
WARNING: Do not cause any road lighting
to be obscured by the addition of any
options or accessories to your caravan.
PASSENGERS
Passengers are forbidden to ride in a caravan
with the exception of authorised test personnel.
BRAKES/BREAKAWAY CABLE
A breakaway cable is required for caravans
and the device must be such that the caravan
stops automatically if the coupling breaks
(Regulation 15 of the Road Vehicles
[Construction and Use] Regulations 1986).

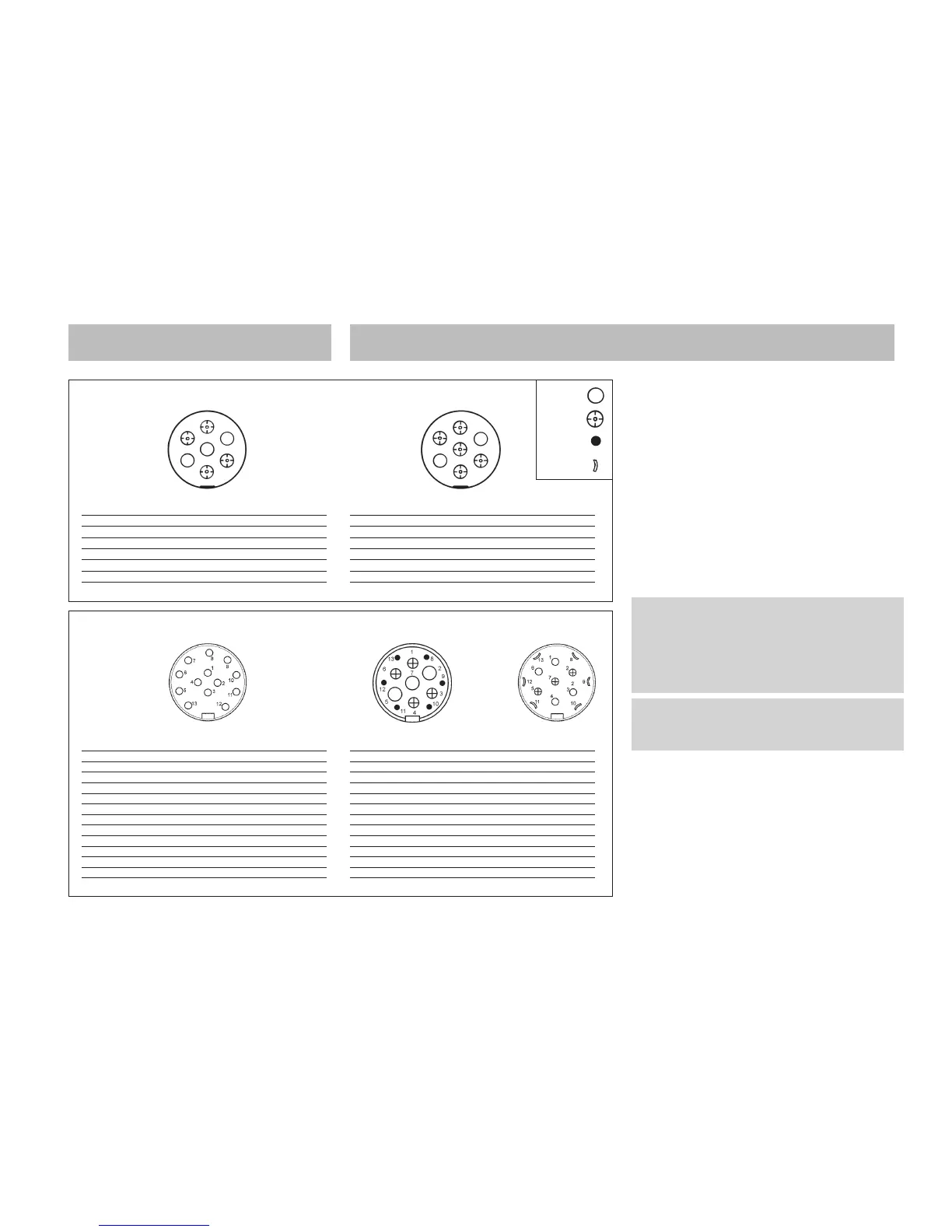

12N AND 12S VIEWED FROM REAR OF PLUG
12N (BLACK) 12S (GREY)
The Towing Code
12
TUBES
PINS
PINS
STRIPS
PIN NO
COLOUR
DESCRIPTION
1 YELLOW LEFT FLASHER
2 BLUE FOG HAZARD LIGHT
3 WHITE EARTH FOR 1-8
4 GREEN RIGHT FLASHER
5 BROWN
RIGHT T
AIL LIGHT
6 RED
STOP LIGHTS
7 BLACK LEFT TAIL LIGHT
8 ORANGE
REVERSE LIGHTS
9 BROWN/BLUE CAR +
10 BROWN/RED FRIDGE
11 WHITE/BLACK
EAR
TH FOR 10
12 NOT YET ALLOCATED
13 WHITE/GREEN EARTH FOR 9
PIN NO
COLOUR
DESCRIPTION
1 YELLOW LEFT FLASHER
2 BLUE FOG HAZARD LIGHT
3 WHITE EARTH FOR 1-8
4 GREEN RIGHT FLASHER
5
BROWN
RIGHT T
AIL LIGHT
6
RED
STOP LIGHTS
7 BLACK LEFT TAIL LIGHT
8
ORANGE
REVERSE LIGHTS
9 BROWN/BLUE CAR +
10 BROWN/RED FRIDGE
11
WHITE/BLACK
EAR
TH FOR 10
12 NOT YET ALLOCATED
13 WHITE/GREEN EARTH FOR 9
VOLTA/JEAGER & MULTICON FEDER 13 PIN PLUGS (viewed from rear)
VOLTA/JEAGER WEST
MULTICON
FEDER 13K
