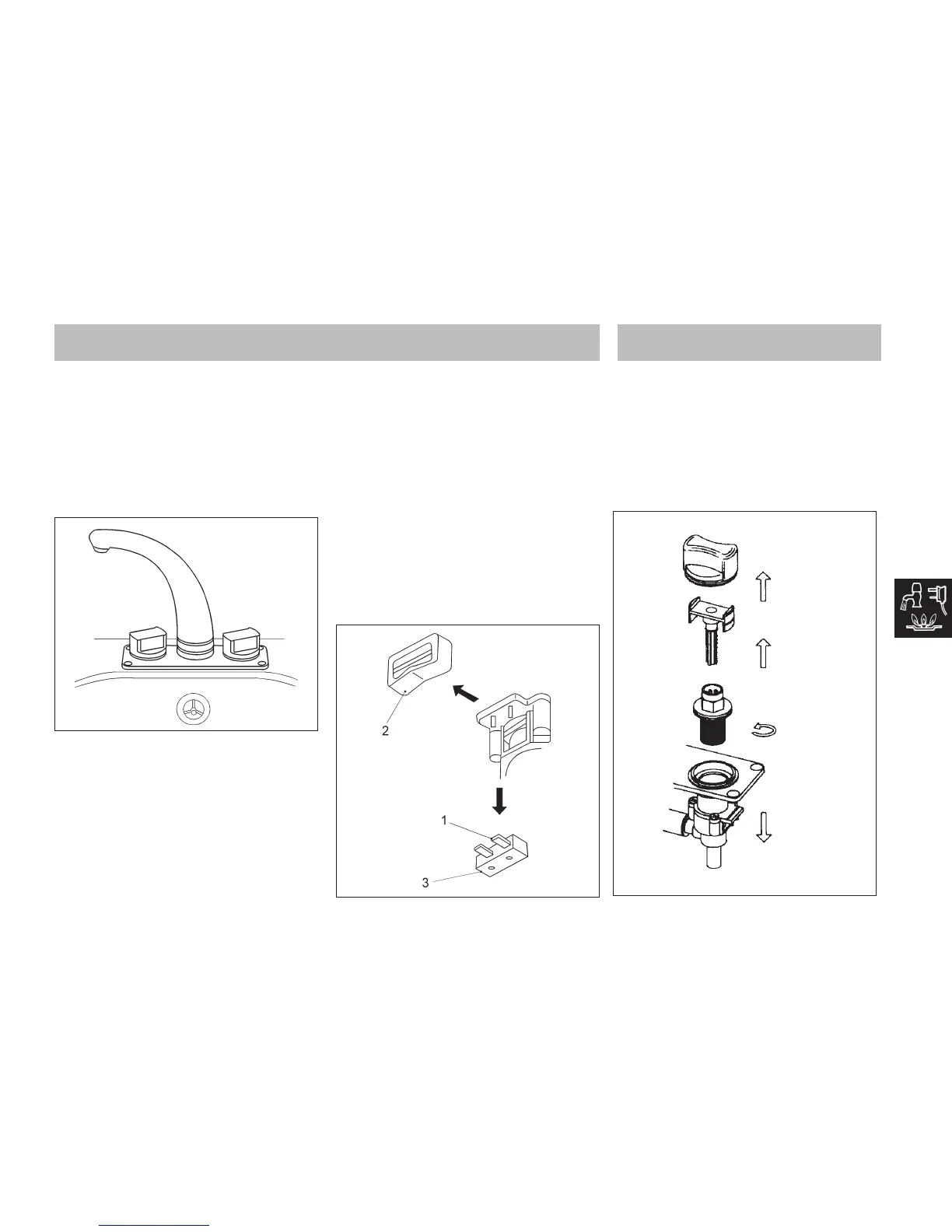

Fig. 2
Dismantling the taps for maintenance
1. Pull off knob(s) and spindle(s).
2. Unscrew securing screw(s), using a 17mm
(11/16") spanner.
3. Control unit(s) can now be released for
inspection (see fig. 2).
Knob
Drive
Spindle
Securing
Screw
Control
Unit
Operation
Swivel the tap spout to the required position
over the sink and turn on either the hot or
cold tap to activate the pump and allow
water to flow. To adjust the water
temperature, open both taps to the required
mix.
Cleaning
It is recommended that a non-abrasive damp
cloth is used for cleaning the Elegance tap.
WHALE ‘ELEGANCE’
MICROSWITCH MIXER TAPS
The microswitch taps are used when the
water supply is not pressurised.
When the tap is turned on, the microswitch
(which is fitted inside the tap), activates the
pump to supply water.
Microswitch replacement
Before you start:
• Ensure the pump is isolated.
• Ensure the taps are in the OFF position.
1. Remove the crimp terminals.
2. Hold the sides of the microswitch clip with
your thumb and finger and gently pull off
the clip.
3. The microswitch should slide off the two
retaining pins. Be careful not to break the
pins off (see fig. 1).
4. Replace in the reverse order.
Fig. 1
