Fitted Equipment
53
5. During the initial operation of a brand new
appliance (or after it has not been used
for some time, a certain amount of fumes,
and a slight smell, may be noticed for a
short time. Remedial action is to
immediately run the heater at maximum
output and to ensure adequate room
ventilation.
6. If the burner makes an unusual noise or if
the flame lifts off, it is likely that the
regulator is faulty and it is essential to
have it checked.
Technical Data
Water contents: 10 litres
Water pressure: up to max. 2.8 bar
Type of gas: Liquid Gas
(propane or butane)
Operating Pressure: 30mbar (or 28mbar
butane, 37mbar
propane)
Rated thermal output: 1500W
Gas consumption: 120g/h
Heating time to approx. 70°C:
Gas operation: approx. 35 mins
Electrical operation: approx. 70 mins
Gas and electrical
operation: approx. 20 mins
Power consumption 12 V
Ignition: 0.17 A
Heating Up: 0.08 A
Standby: 0.04 A
Power consumption 230 V
Heating Up: (2A) 450 W
Weight (empty): 6.7 Kg
THE TRUMA S 3002 P & S 3002
AUTO SPACE HEATER
INSTRUCTIONS FOR HEATERS FITTED
WITH AUTOMATIC IGNITOR OR PIEZO
IGNITOR
Switching On
1. Open the valve on the gas cylinder. Open
quick-acting valve in gas supply line.
2. Turn control knob to thermostat setting
1-10 and press it down as far as the stop.
At the same time keep operating the
piezo ignitor rapidly until the flame ignites.
3. Keep the control knob depressed for a
further 10 seconds to allow the safety
pilot to operate.
4. (Piezo only) Watch through the flame
window for another 10 seconds to make
sure that the flame does not go out
through air in the supply pipe (caused by
the valve being closed or changing the
cylinder).
Attention: Always wait at least 2 minutes
before attempting to re-ignite, otherwise
there is a risk of blowbacks (misfiring).
This also applies if a working heater
goes out has to be re-lit.

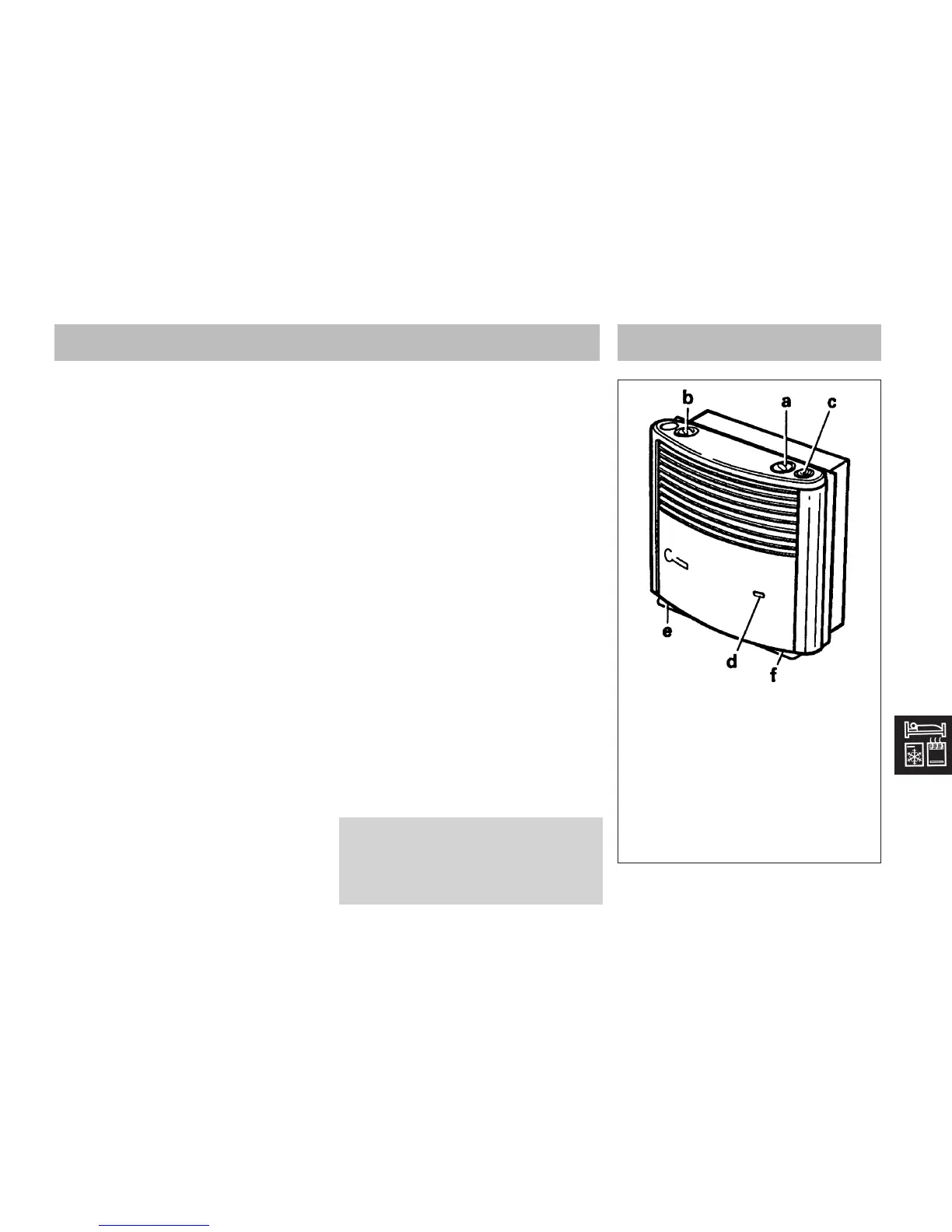

a = Control knob
b = Integrated control panel for
Trumavent fan TEB
c = Piezo ignitor or automatic ignitor
d = Flame observation window
e = Name plate (remove casing)
f = Thermostat probe
In the case of left-handed installation,
the parts are arranged on the other
side.
