Services
25
REICH MICROSWITCH TAPS
The micro switch taps are used when the
water supply is not pressurised.
When the tap is turned on the micro switch
(which is fitted inside the tap) activates the
pump to supply water.
Operation

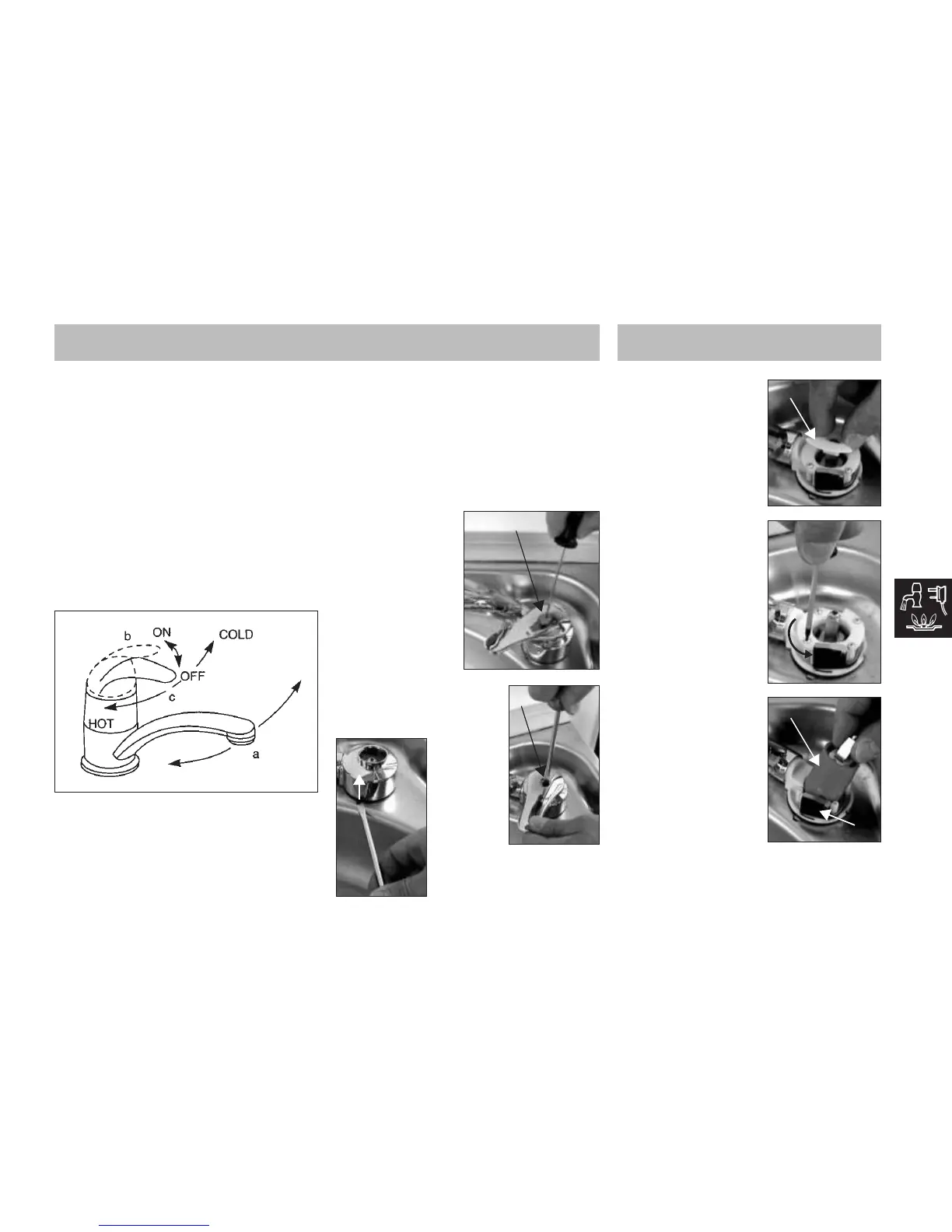

Swivel the tap spout (a) to the desired
position over the sink, lift the control lever (b)
to activate the pump and allow water to flow
simultaneously. To adjust the temperature
swivel the lever (c) to the left or right as
shown opposite.
Note: Before commencing microswitch
replacement ensure instructions are read
through thoroughly. The entire process can
be completed without the need to remove
the tap from the worktop.
5. Detach the plastic
part (3) from the
cartridge lever.
6. Loosen screws with
screwdriver
(Tor® TX6).
7. Detach the plastic
ring.
8. Pull out the ceramic
cartridge (4).
9. If the cartridge is
defect:
- Install a new
ceramic cartridge,
part no.:
240-0552M
- Make sure that the
cartridge is in the
right position.
10.If the microswitch (5)
is defect:
- Pull the wire out
of the mixer
- Install a new
microswitch,
part no.: 240-
06220M.
Before you Start
1. Ensure pump is isolated.
2. Position lever in central, i.e. mixer, off
location.
REICH TWIST SINGLE LEVER MIXER TAP
Exchange of the ceramic cartridge/
micro switch
1. Detach cover
(1) carefully.
If the cover is
damaged use
spare part
no.: 240-054312
(red cover) and
240-054313
(blue cover).
2. Loosen screw
inside the
handle.
3. Detach the handle (2).
4. Detach the housing
carefully.
1
2
3
4
5
