Make NEUTRAL and EARTH connections from incoming Mains
supply to NEUTRAL and EARTH terminals on Hanger Bracket as
appropriate. Make SWITCHED LIVE (Active) connection from Wall
Controller to LIVE terminal on Hanger Bracket.
UNSWITCHED LIVE (Active) wire from incoming Mains supply
should be looped to Wall Controller using an insulated joiner.
UNSWITCHED LIVE (Active) to be connected directly to
Hanger Bracket terminal.
must not
Terminal Block
EARTH
SWITCHED LIVE
from Wall Controller
NEUTRAL
B
Ensure that electrical connections
are good and that terminal block
screws are secure.
A
A
B
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE

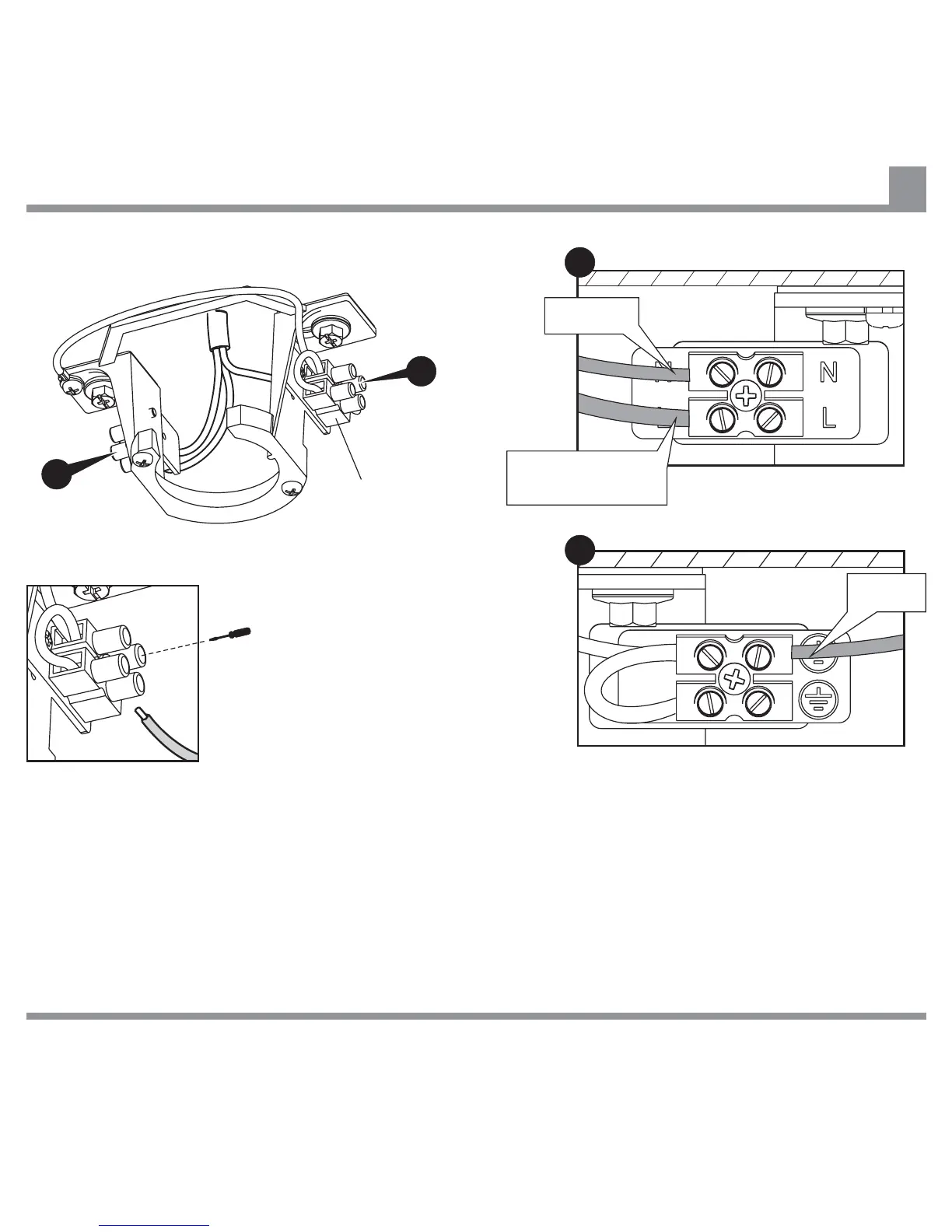

Connecting Live, Neutral and Earth Wires from Supply Wiring to Terminal Block on Hanger Bracket
