A

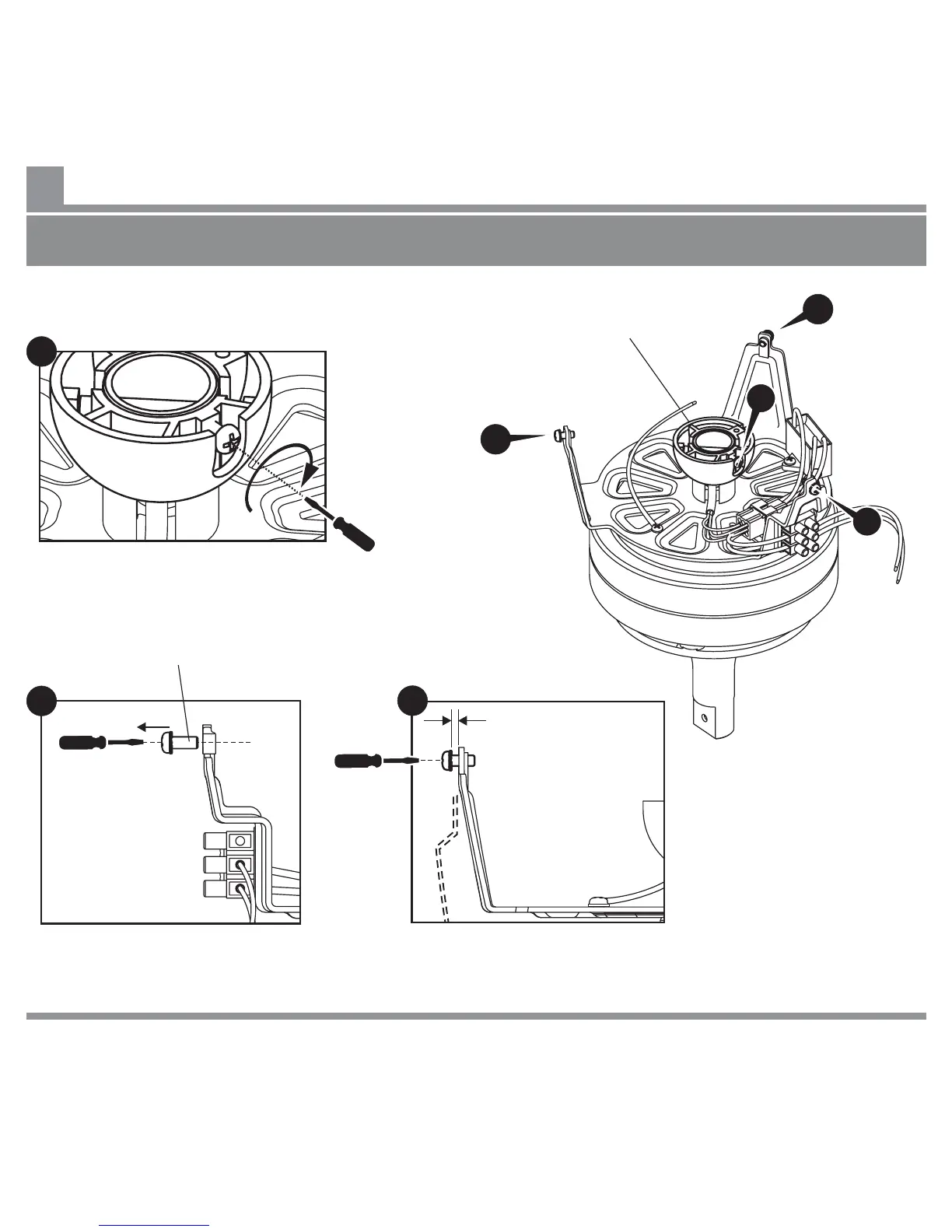

Remove one Fan Motor Housing fixing
screw, and put it aside for re-assembly
during Fan Motor Housing installation.
Check that the Suspension Ball fixing
screw is securely tightened.
Adjust remaining two Fan Motor Housing
fixing screws to provide clearance for
installing Fan Motor Housing.
6 - 8mm (1/4” - 5/8”)
C
Fan Motor Housing
Fixing Screw
B
C
Suspension Ball
C
B
A
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE
Preparing Fan Motor Assembly
10
If installing a fan with a Suspension Rod, refer to Additional Instruction Manual for Suspended Installation for
remaining installation steps.
