SWITCHED
LIVE
PURPLE
BROWN
RED
UNSWITCHED LIVE
NEUTRAL
To Fan Hanger Bracket
From Mains
Capacitor
ON/OFF
Switch
Speed
Controller
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE
Note:
NEUTRAL wire may not be present in
some types of existing lighting circuit and
is not required. If present it may be
terminated as shown or otherwise
properly insulated.
Make electrical connections from Supply
Wiring to ON/OFF Switch, Speed
Controller, Capacitor and Fan Wiring as
shown. Ensure that electrical connections
are good, and terminal screws are secure.

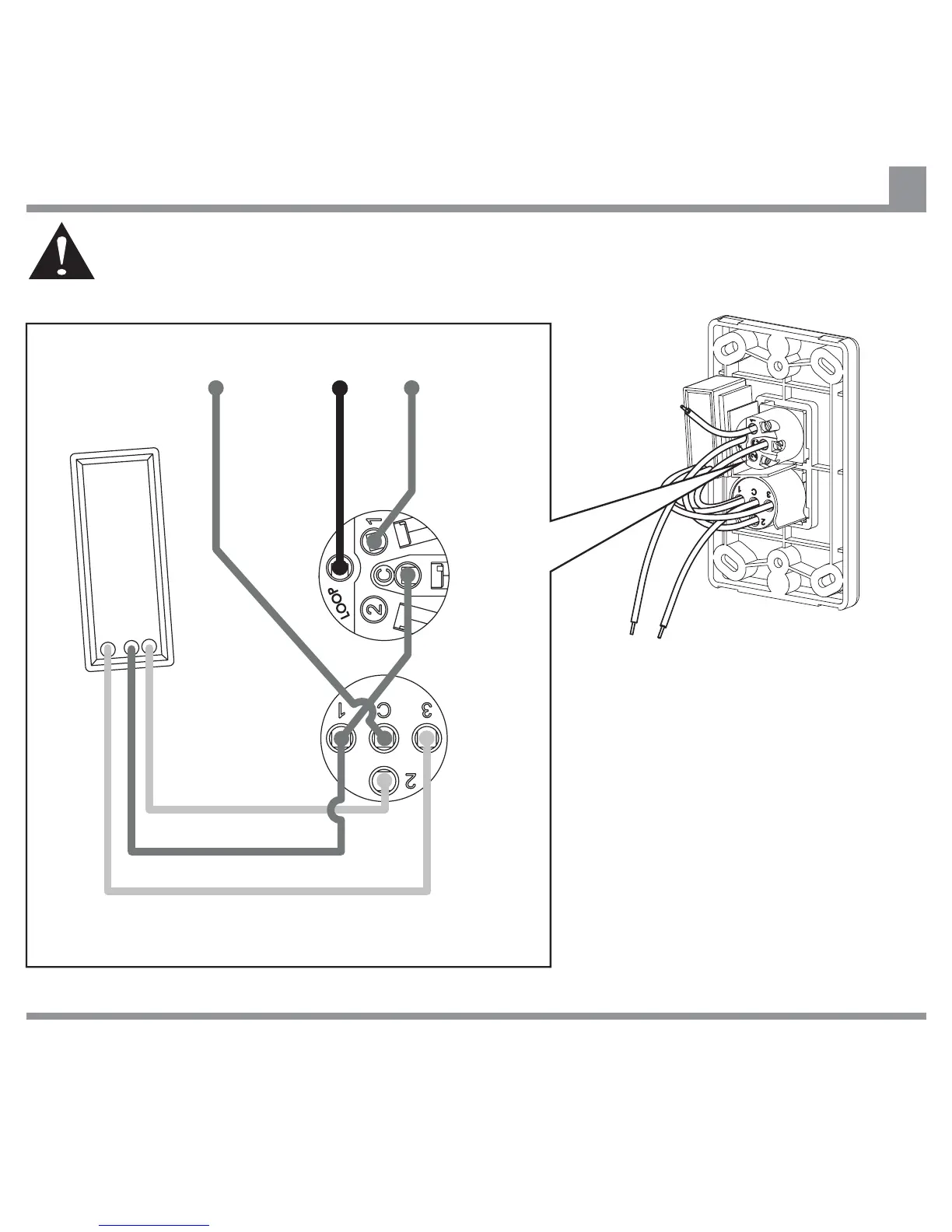

Connecting Wires for Wall Controller
15
Warning: Do not attempt to control the operation of this fan from any wall controller that is not
approved by Hunter Pacific International Pty. Limited for use with this fan. Do not use a solid
state wall controller. The use of an unapproved wall controller voids the warranty.
