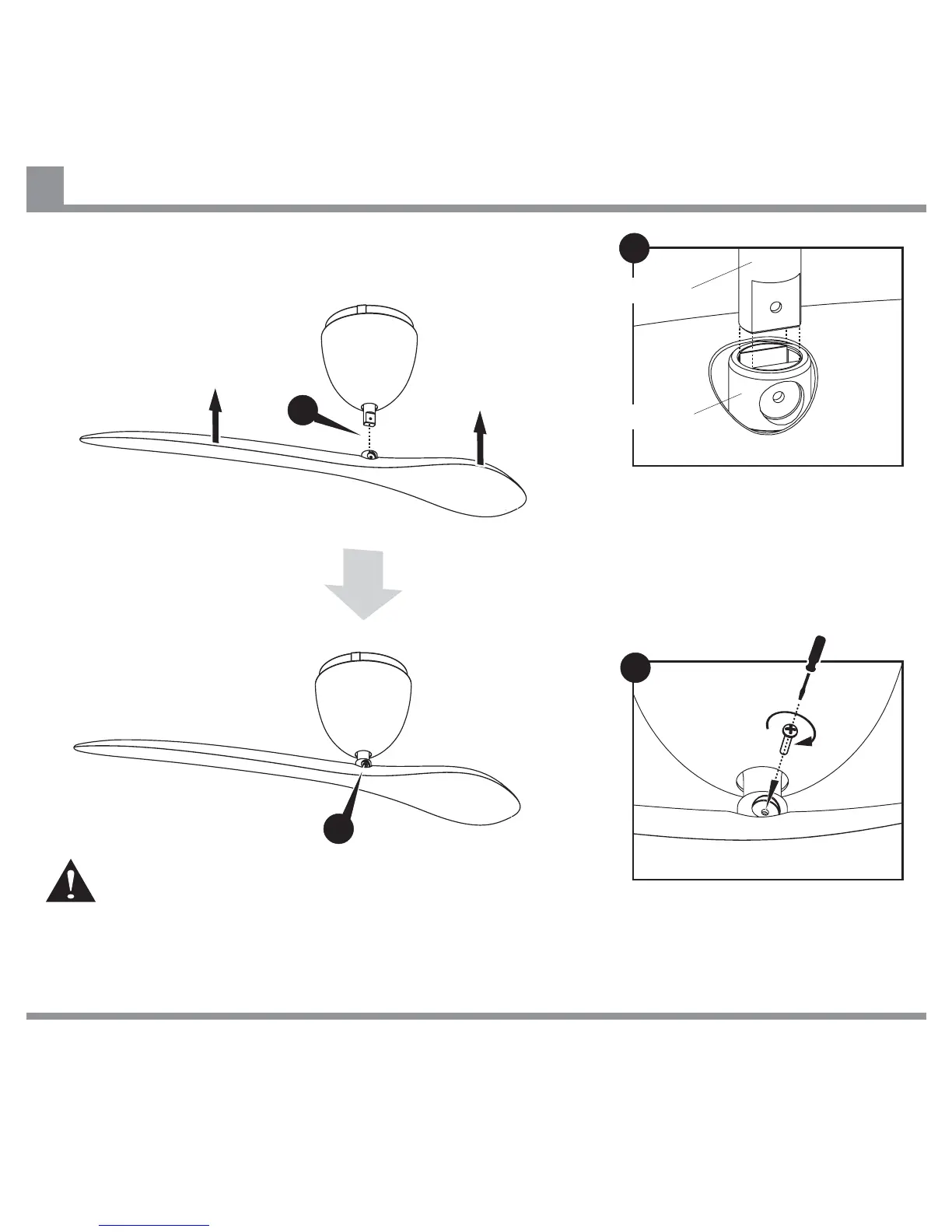

Attaching Fan Blade to Fan Motor Assembly
30
A
B
Align flats on Pivot Connector
with flats on Drive Shaft and
install Fan Blade by sliding
Pivot Connector onto Drive
Shaft.
Take care not to lift Drive Shaft when installing Fan Blade, as
this may disengage Suspension Ball from lug on Hanger
Bracket (see page11.)
Hold Fan Blade in position,
insert blade fixing screw and
tighten securely.
IF THERE ARE ANY PROBLEMS DURING INSTALLATION OF THE FAN, THE INSTALLER MUST CONTACT THE
HUNTER PACIFIC INTERNATIONAL WARRANTY LINE . TEL: 1300 360 280BEFORE LEAVING THE WORK SITE
A
B
Drive Shaft
Pivot Connector
To Next Page
