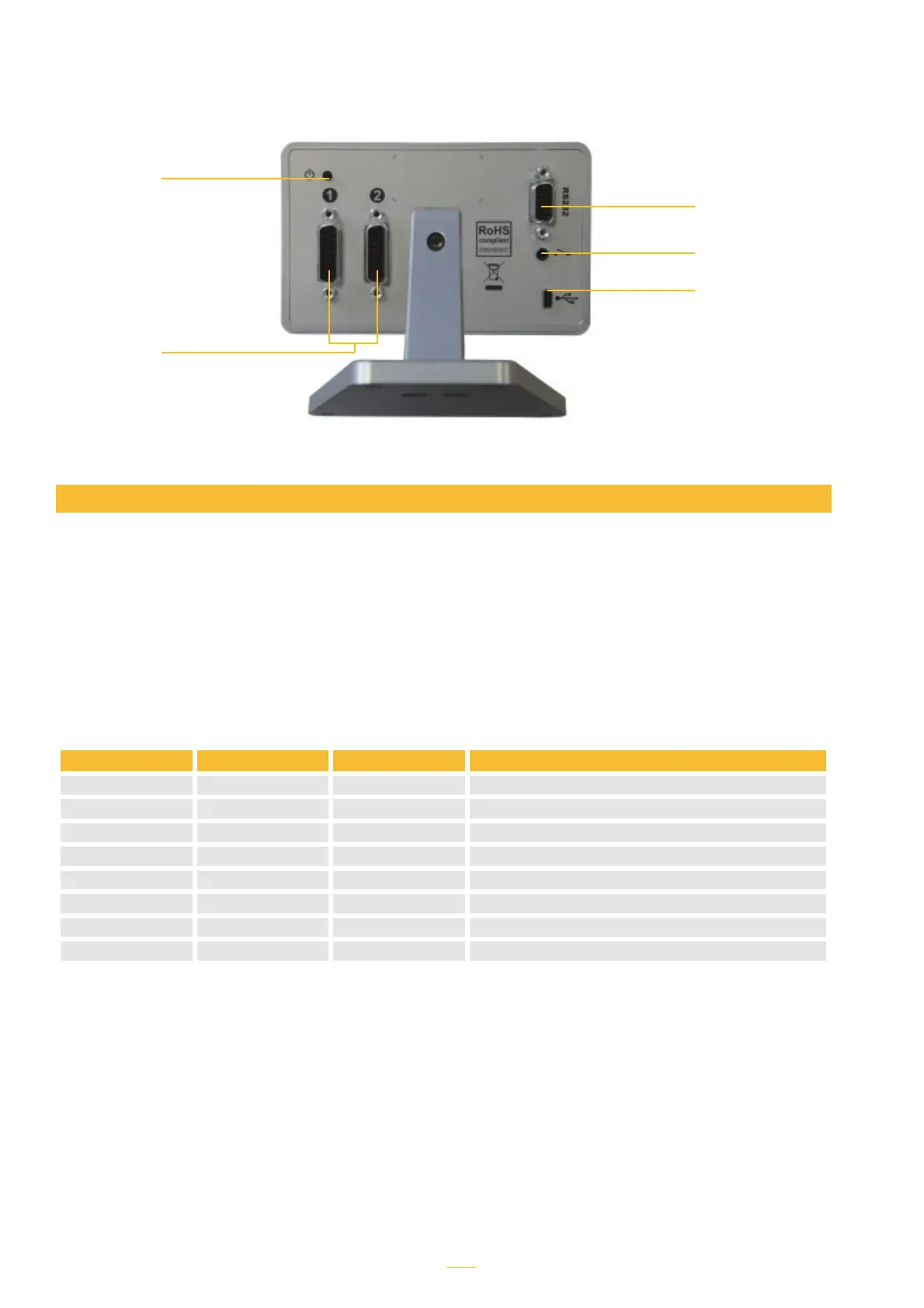

D70HD70H

On/off button

(hold for 2s to

switch off)

2 ports for Hein-

dehain sensors

RS-232 connector for

PC communication

Connector for pedal

Mini-USB connector

for power supply and

transferring the meas-

urement to a PC

The D70 has an RS-232 port, which means that it can be connected to a machine or external

system. The speed, parity and format can be adjusted by the user.

Connector pins

Equipped with a 9-pin SUB-D female connector.

Description of the RS-232 signals and pin assignments:

Communication ports

Pin Signal Direction Description

1 Unused

2 RX Input Receive data

3 TX Output Transmit data

4 IN1 Input Factory testing only, do not connect

5 Ground - Signal ground

6 Not used

7 IN2 Input Factory testing only, do not connect

8 & 9 Not used

Mini-USB connector

The mini-USB connector has two functions:

1. Powering the display via the adapter. This adapter supplies a regulated constant voltage of

5V/1A.

2. Transferring measurements. If you connect the D70 to a PC, it will be detected as a keyboard

using the standard drivers for the operating system. When you transfer a measurement, the

number will be «written» to the PC as if you had typed it in on a keyboard.
