Sym JOYMAX 300i User Manual

9
. Final Drive Mechanism
9-3

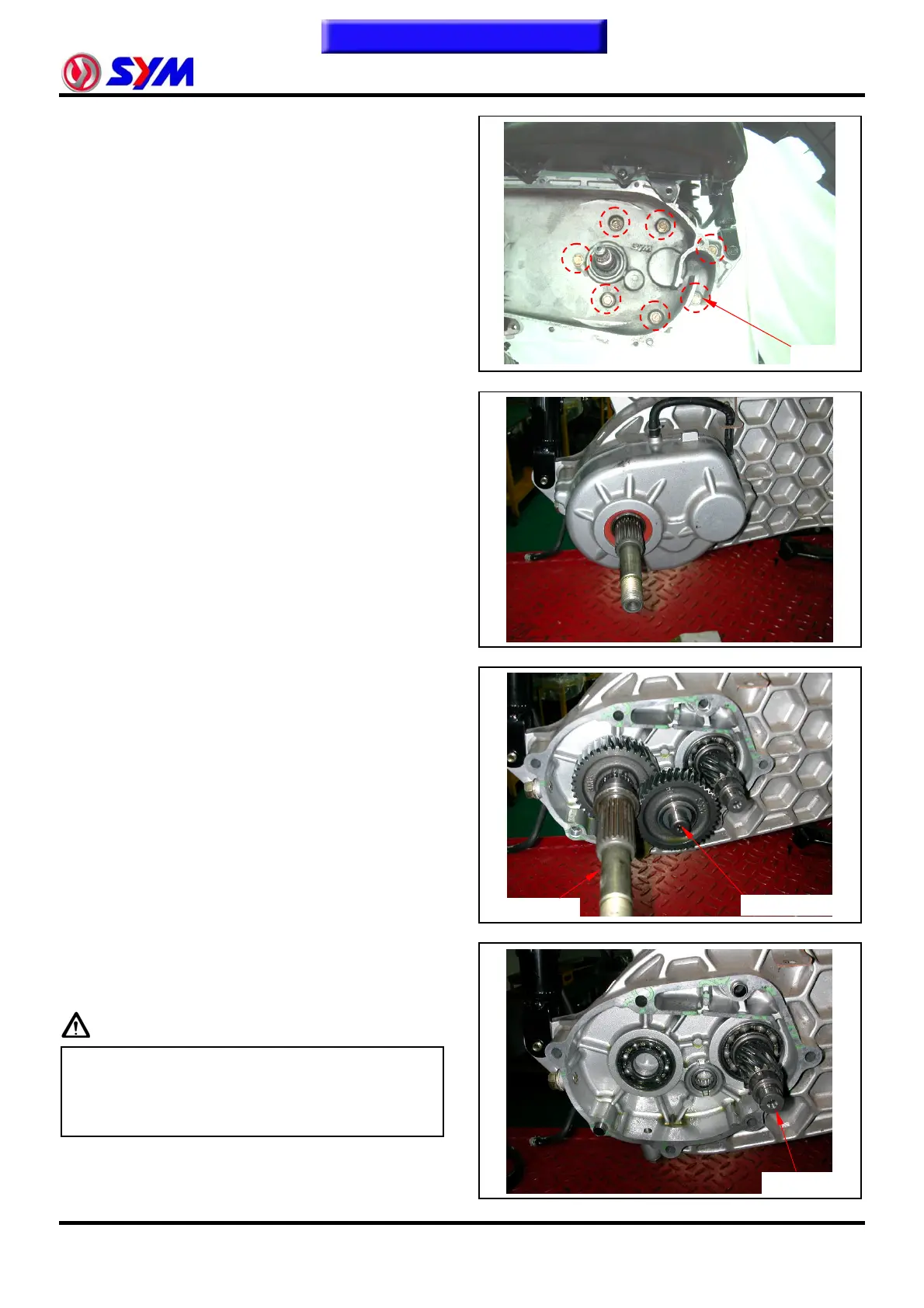

Final Drive Mechanism Disassembly
Remove the rear wheel.
Remove the clutch.
Drain out gear oil from gear box.
Loosen 7 bolts and remove gear box cover bolts.
Remove the gear box cover.
Remove the gasket & dowel pin.
Remove final gear.
Remove counter shaft, gear and 2 washers.
Remove final shaft.
Remove the drive shaft.
Special tool:
Shaft protector
Caution
y If non- essential do not remove the drive shaft
from the cover upper side.
y If remove the drive shaft from the gear box
cover, then its bearing has to be replaced.
7 bolts
Drive shaft
Final shaft
Counter shaft
To this chapter contents

Sym JOYMAX 300i Specifications

General

Displacement	278.3 cc
Cooling System	Liquid cooled
Fuel System	Electronic Fuel Injection (EFI)
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Disc
ABS	Yes
Front Tire	120/70-15
Rear Tire	140/70-14
Width	760 mm
Height	1, 420 mm
Fuel Capacity	12 L
Engine Type	Single-cylinder, 4-stroke
Length	2190 mm
Wheelbase	1550 mm
Rear Suspension	Dual shocks
