Sym RS-50 - Steering, Front Wheel, and Front Shock Absorber; Mechanism Illustration

13. Steering/Front Wheel/Front Shock Absorber
13-1
Mechanism Illustration ....................... 13-1
Precautions in Operation.................... 13-2
Trouble diagnosis ............................... 13-2
Steering Handle................................... 13-3
Front Wheel....................................... 13-4
Front cushion.................................... 13-7
Front fork/steering column .............. 13-7

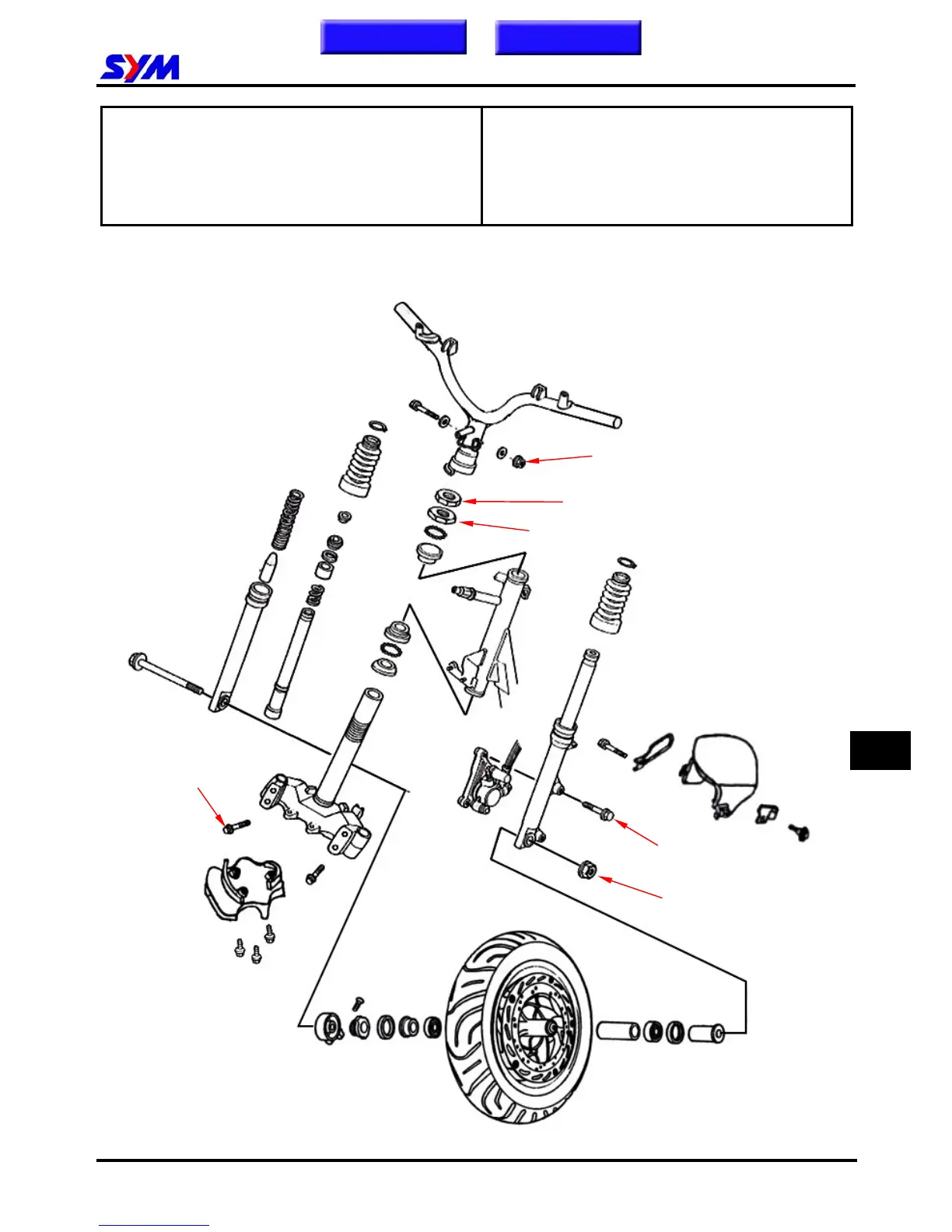

Mechanism Illustration
3.1~3.5kgf-m
1.0~2.0kgf-m
0.2~0.3kgf-m
4.0~5.0kgf-m
5.0~7.0kgf-m
2.4~3.0kgf-m
