13. Steering/Front Wheel/Front Shock Absorber
13-4
Front Wheel

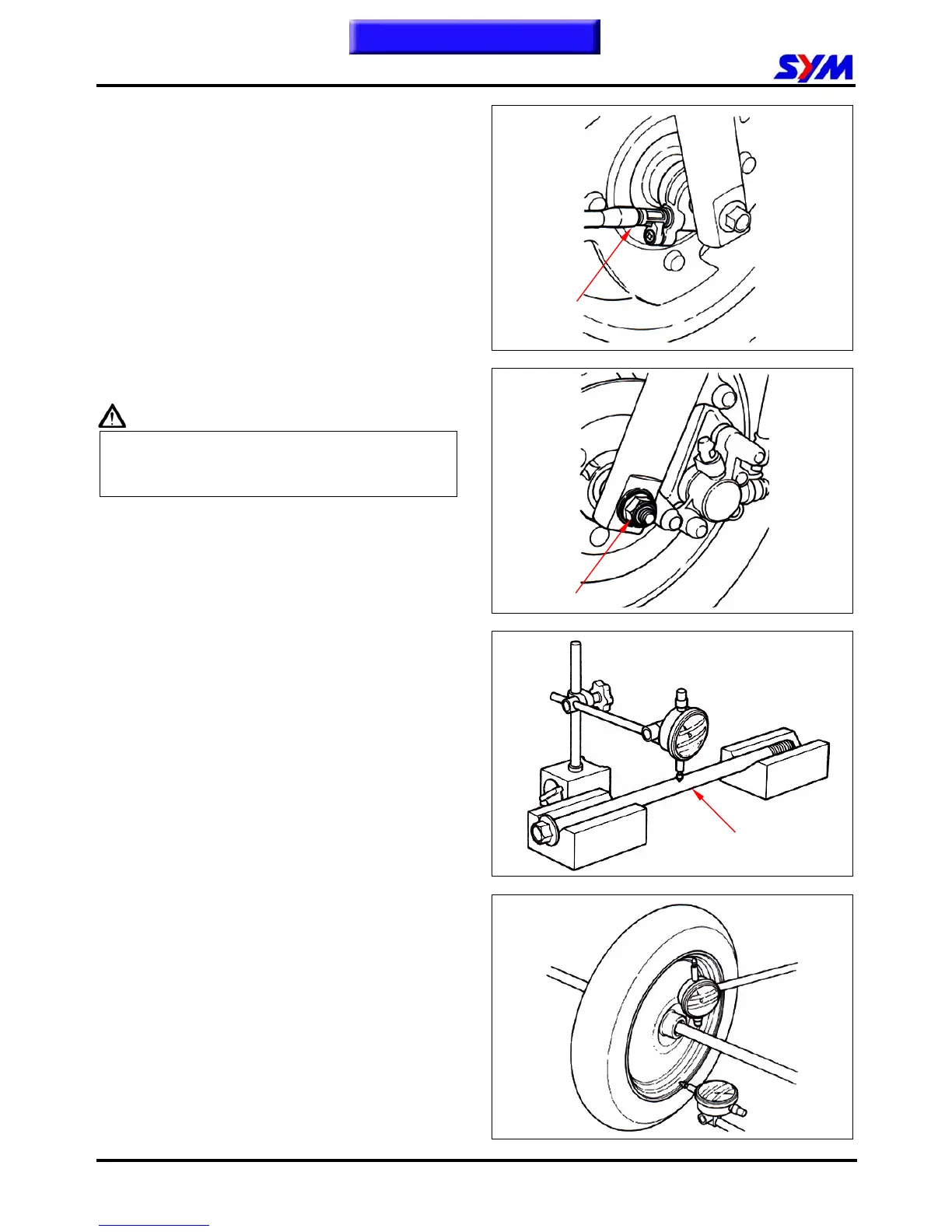

Removal
Support body bottom and lift front wheel free of
ground.
Remove the screw, and disconnect speedometer
cable from the gear box.
Remove the wheel axle nut and pull out the axle.
Then, remove the front wheel.
Caution
Do not operate the front brake lever to avoid to
pressing out the brake lining when removing
the master cylinder.
Inspection
Wheel axle
Set the axle in V-blocks and measure the run-out.
Service limit: 0.2 mm
Wheel Rim
Place the wheel onto a rotated bracket.
Turn the wheel with hand and measure its wobble
value with a dial gauge.
Service limit:
Radial : 2.0 mm
Axial : 2.0 mm
This Chapter Contents
Speedometer cable
Wheel axle nut
Wheel axle
To Next Page
