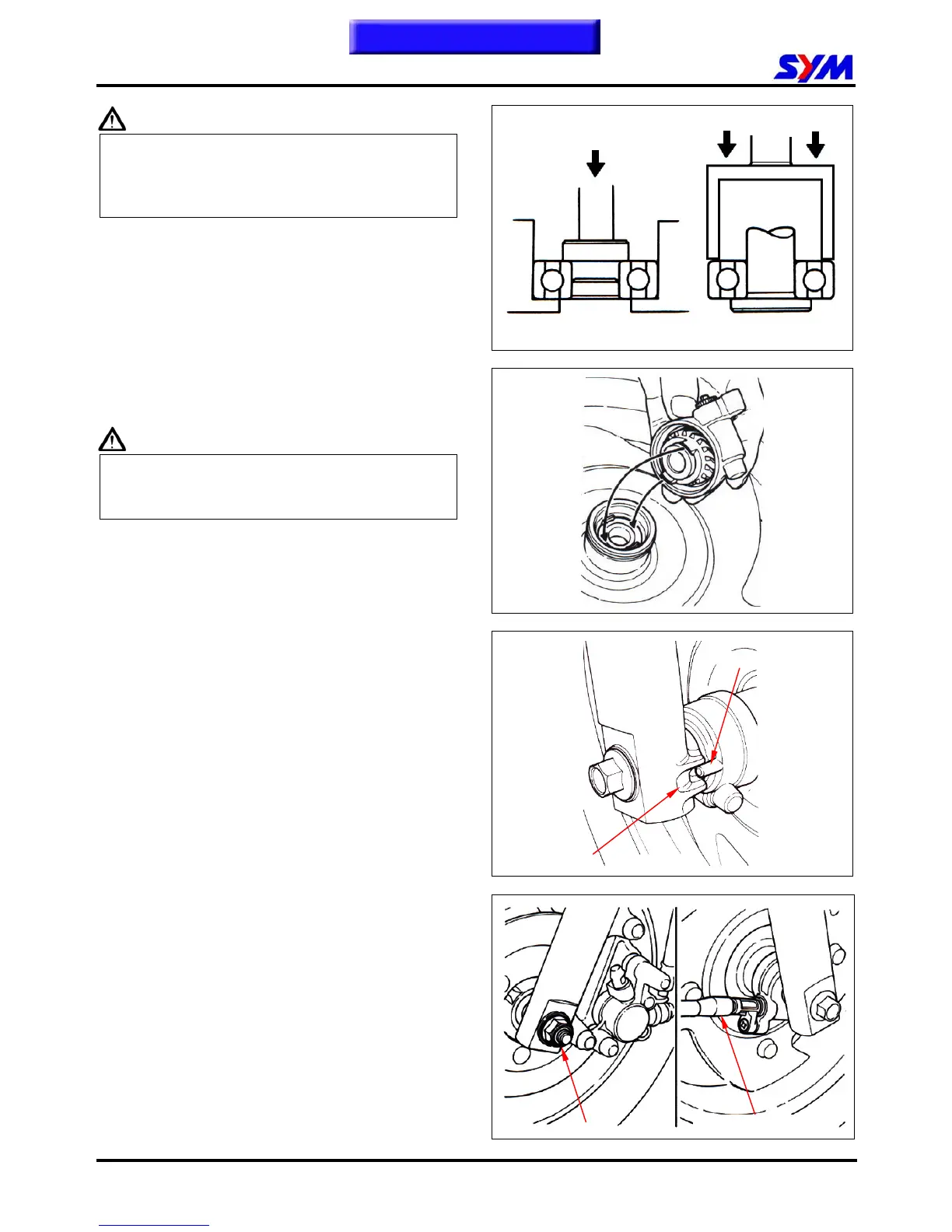

13. Steering/Front Wheel/Front Shock Absorber
13-6
Caution
Do not install used bearing and replace the
bearing once it has been removed.
Do not the bearing in tile motion when
installing.
Tool:
C-type compressor or bearing driver
Align the flange part on the speedometer gear with
the slot of wheel hub, and then install the
speedometer gear box.
Caution
Contaminated brake lining will reduce brake
performance so the brake lining, brake drum
and disc must be free of grease.
Place the front wheel between the front cushions.
Align the flange part on the speedometer gear box
with the slot of cushion stopper.
Install the front wheel axle from right cushion side.
Install the wheel axle nut, and tighten it to
specified torque value.
Torque value: 5.0~7.0kgf-m
Connect the speedometer cable to the
speedometer gear box.
This Chapter Contents
Both samples will damage bearing
Stopper
Speedometer cable
Wheel axle nut
Brake panel slot
