15. ELECTRICAL EQUIPMENT
15-8

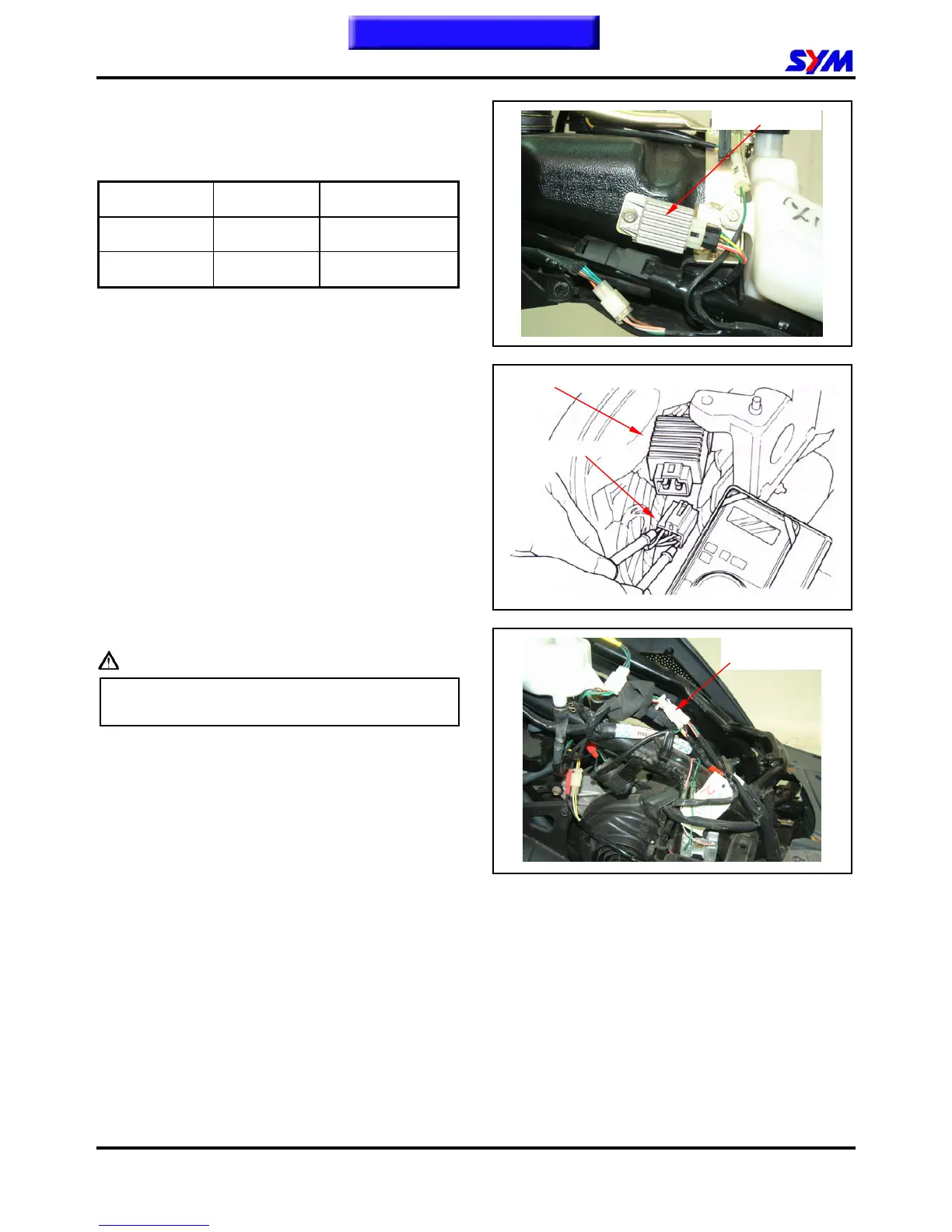

Regulator rectifier Inspection
Remove the rear carrier.
Remove the luggage box and body cover.
Disconnect the 6P coupler of the regulator.
Item
Measurement
point
Standard Value
Main switch
connection wire
R~B
Battery voltage (ON)
Battery
connection wire
R~G
Battery voltage
Check the parts onto the abnormal wire circuit if
the measured values are not within standards.
If the part is OK, then it is the wire circuit
abnormal.
Replace the regulator if both checks are OK.
Inspection on the Charging Coil
Caution
The test can be carried out without removing
the charging coil from the engine.
At the alternator side from the regulator coupler,
measure the resistor between pink and yellow
wires.
Standard value: 0.16~0.8
AC generator
harness coupler
This chapter Contents
Regulator rectifier
Regulator
rectifier coupler
Regulator rectifier
