15. ELECTRICAL EQUIPMENT
15-23

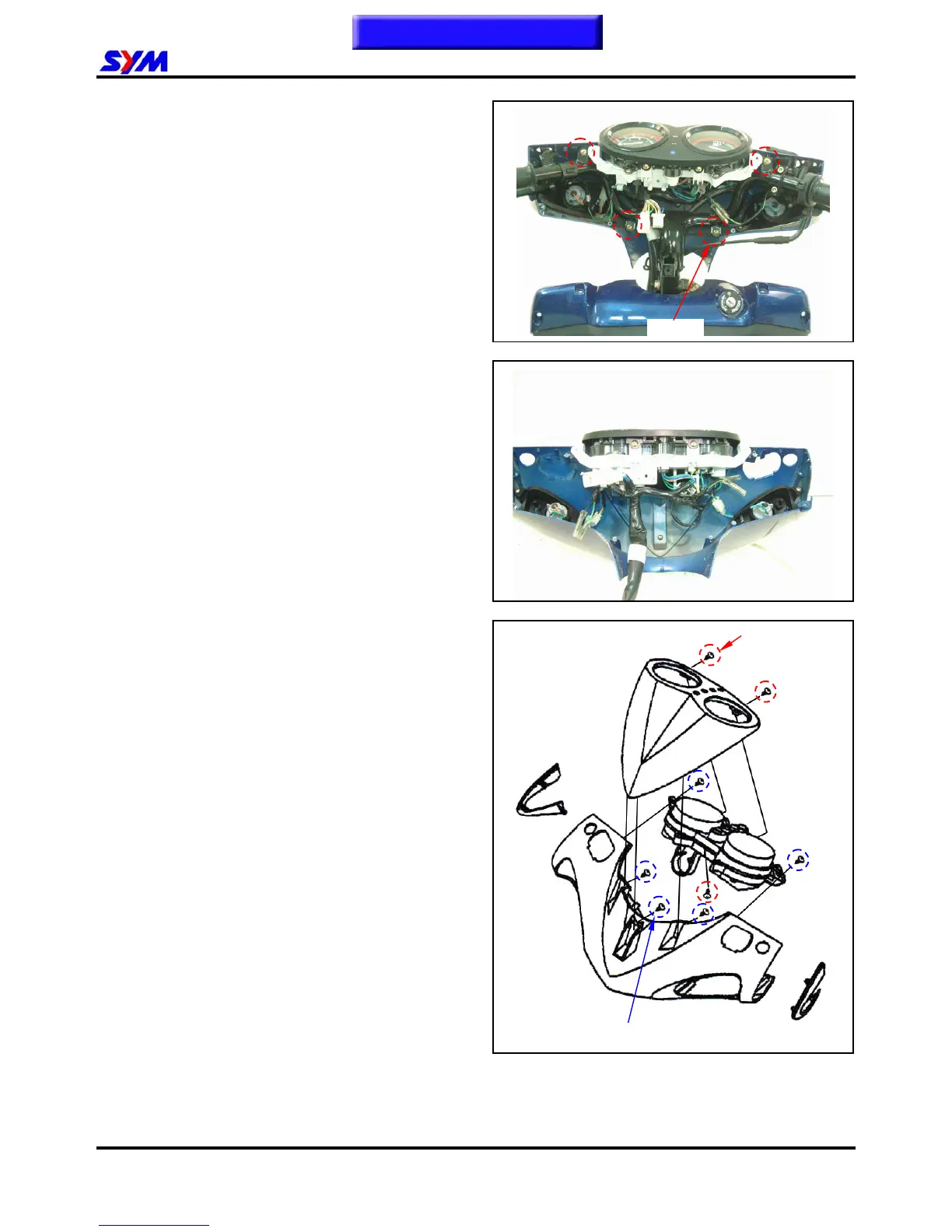

Meter
Remove the front cover, and then remove the
meter wire coupler.
Remove speedometer cable.
Remove handle rear cover.
Remove handle front cover and meter. (4 screws)
Take out the bulb seat from the bottom of
instrument panel.
Check if the bulb is burnt or damage, and replace
it if necessary.
Handle front cover and meter disassembly
Remove meter cover and meter from handle front
cover. (5 screw)
Remove meter from meter cover. (3 screw)
This chapter Contents
4 screws
Meter screws X 3
Meter cover screws X 5
