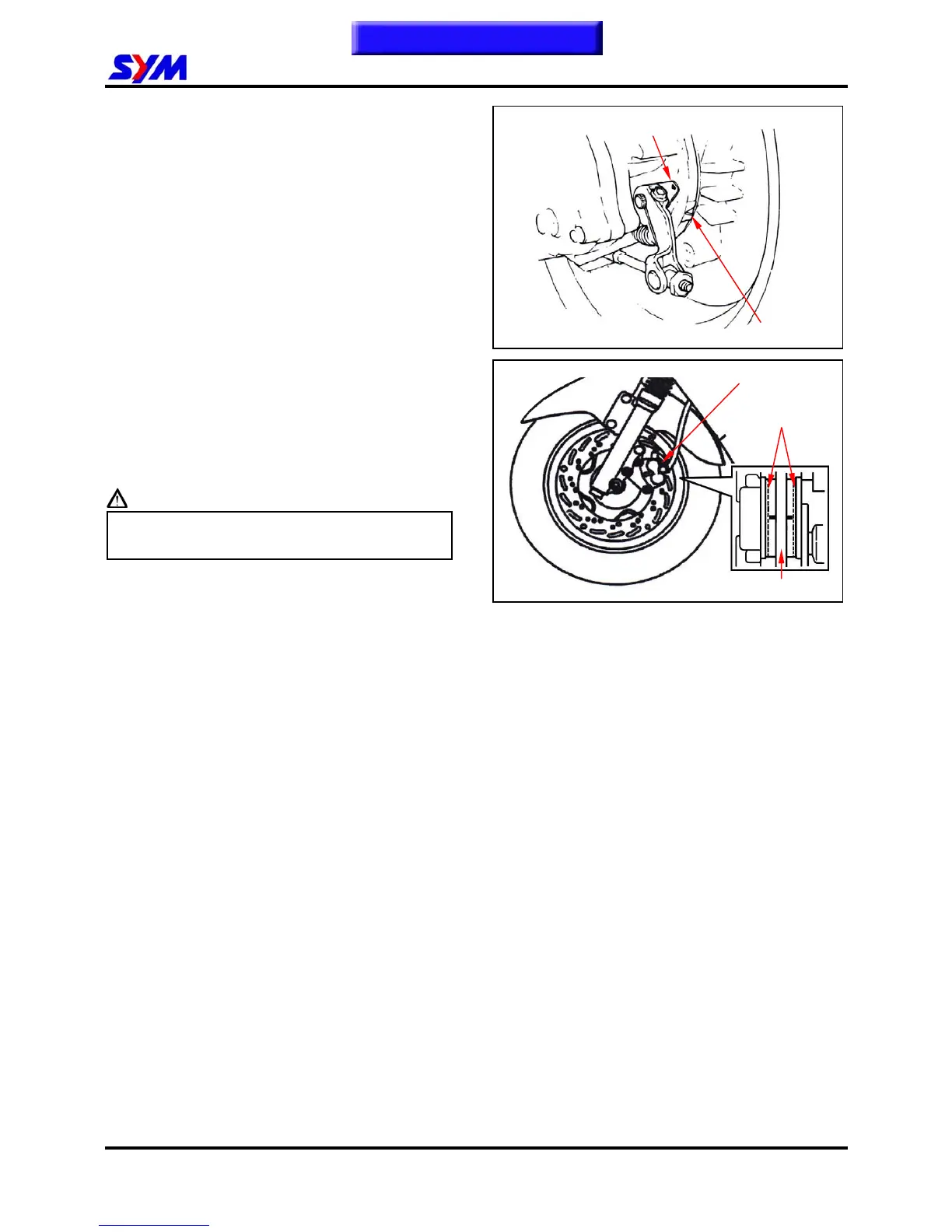

Brake Lining Wear: (Rear Drum Brake
Type)
Replace the brake lining if the wear limit mark
“△ ” on the brake arm aligning with the indicator
of brake drum.
Brake Lining Wear: (Front Disc Brake
Type)
The arrow mark on brake lining is the wear
limitation.
Replace the brake lining if the wear limit mark
closed to the edge of brake disc.
Caution
In order to maintain brake power balance, the
brake lining must be replaced with one set.
Brake lining
Brake caliper
Brake disc
Wear limit mark
Arrow
