10
2D Desktop Barcode Scanner

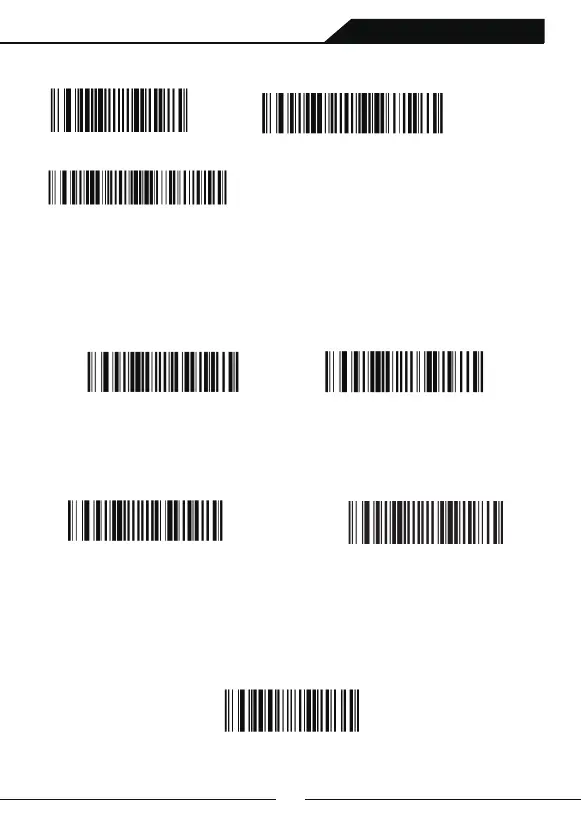

Ending Character Settings
CR(Carriage Return)
(890000.)
(888002990A.)
(888002990D0A.)
（8210042）
（8
210040）
LF(Line Feed)
CR+LF
Start Keyboard Operation
Stop Keyboard Operation
Keyboard Operation
Function Code Transmission Setting
When the function characters transmission is enabled and the data of code contains
the function characters, the barcode scanner will transmit the data of function
character to the terminal.Default setting is enable.
Enable
Disable
(8000051.)
(8000050.)
E.g.1：Setting all code types adding keyboard operation.
Step 1:Checking Appendix 1:the HEX value of all barcode types is 99
Step 2:Checking Appendix 4:the HEX value of save is 13 in keyboard operation ASCII transform.
Step 3:Scanning following setting code”Start Keyboard Operation”
Step 4:Find setting codes corresponding to 9,9,1,3 in Appendix 3 and scan them one by one
Step 5:Scanning setting code“Save”
E.g.1：Setting data transmission 100ms delayed
Step 1:Scanning setting code“Data Transmission Delayed”in page 18
Step 2:Find setting codes corresponding to 2, 0 in Appendix 3 and scan them one by
one(Why 2,0? Because 100/5=20,if setting 150ms delayed,it will be 3,0)
Step 3:Scanning setting code“Save”in page 18
(851004.)
Data Transmission Delayed
Data Transmission Delayed
