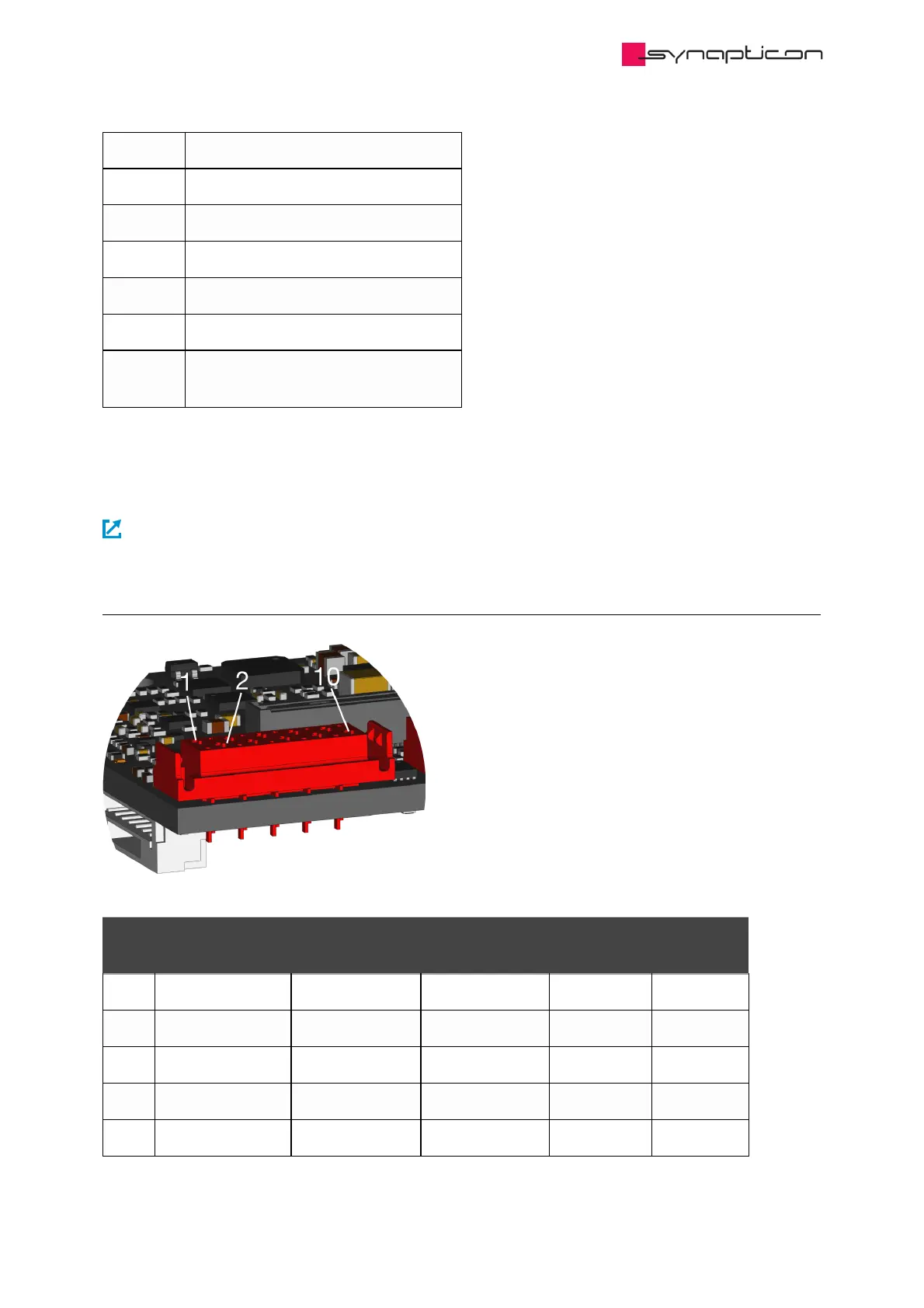

2 Phase B
3 Phase C
4 Phase D
5 Ground
6 Main Power Supply 12-48 V *
7 Optional Logic Ground
8 Optional Logic Supply 12-24 V (20 W
max)**
* To be run with an appropriate extra-low voltage supply without contactors behind the power supply.
Further information can be found here
** not connected by default. Upon request only, please contact sales@synapticon.com
Grounding and attaching power and brake cables
1.3.3.2 Encoder Port 1
Pin # ABI/ABZ (RS422) ABI/ABZ (TTL)* HALL (TTL)** BiSS
(RS422)
SSI (RS422)
1 MA- Clock-
2 5 V *** 5 V *** 5 V *** 5 V *** 5 V ***
3 Ground Ground Ground Ground Ground
4 MA+ Clock+
5 A- A W (C) SLO- Data-
Hardware Manuals / SOMANET Node / SOMANET Node rev.
D.3/D.4
© 2020 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.2.0 | Build: 2020-10-02 13/27
