3 Ground Ground Ground Ground Ground

4 – – – MA+ Clock+

5 A- A W (C) SLO- Data-

6 A+ – – SLO+ Data+

7 B- B V (B) – –

8 B+ – – – –

9 I- I U (A) – –

10 I+ – – – –

* To use ABI/ABZ with TTL please ensure that your Encoder is capable to sink 5 mA to GND when the

output of the encoder is 0

** This is a 5 V supply that can provide up to 250 mA for external use.

The supply is protected against short to ground and keeps the current below 400 mA in a continuous

short.

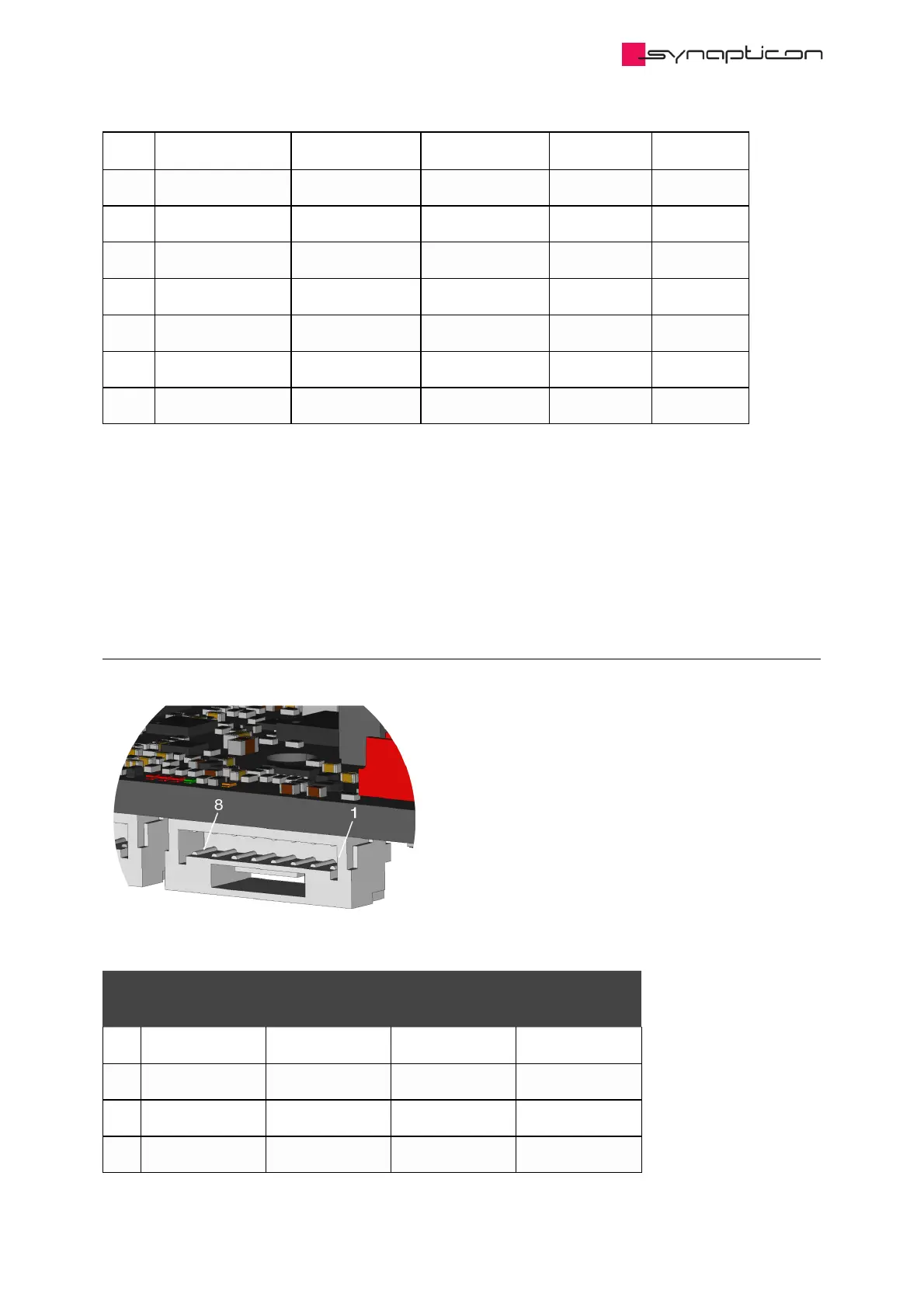

1.3.3.4 Encoder Port 3 / Digital IO

GPIO REM 14/16MT BiSS (LVTTL) SSI (LVTTL)

1 3.3 V * 3.3 V * 3.3 V * 3.3 V *

2 Digital IO 1** SS SLO Data

3 Digital IO 2** SCK MA Clock

4 Ground Ground Ground Ground

Hardware Manuals / SOMANET Node / SOMANET Node rev.

D.3/D.4
