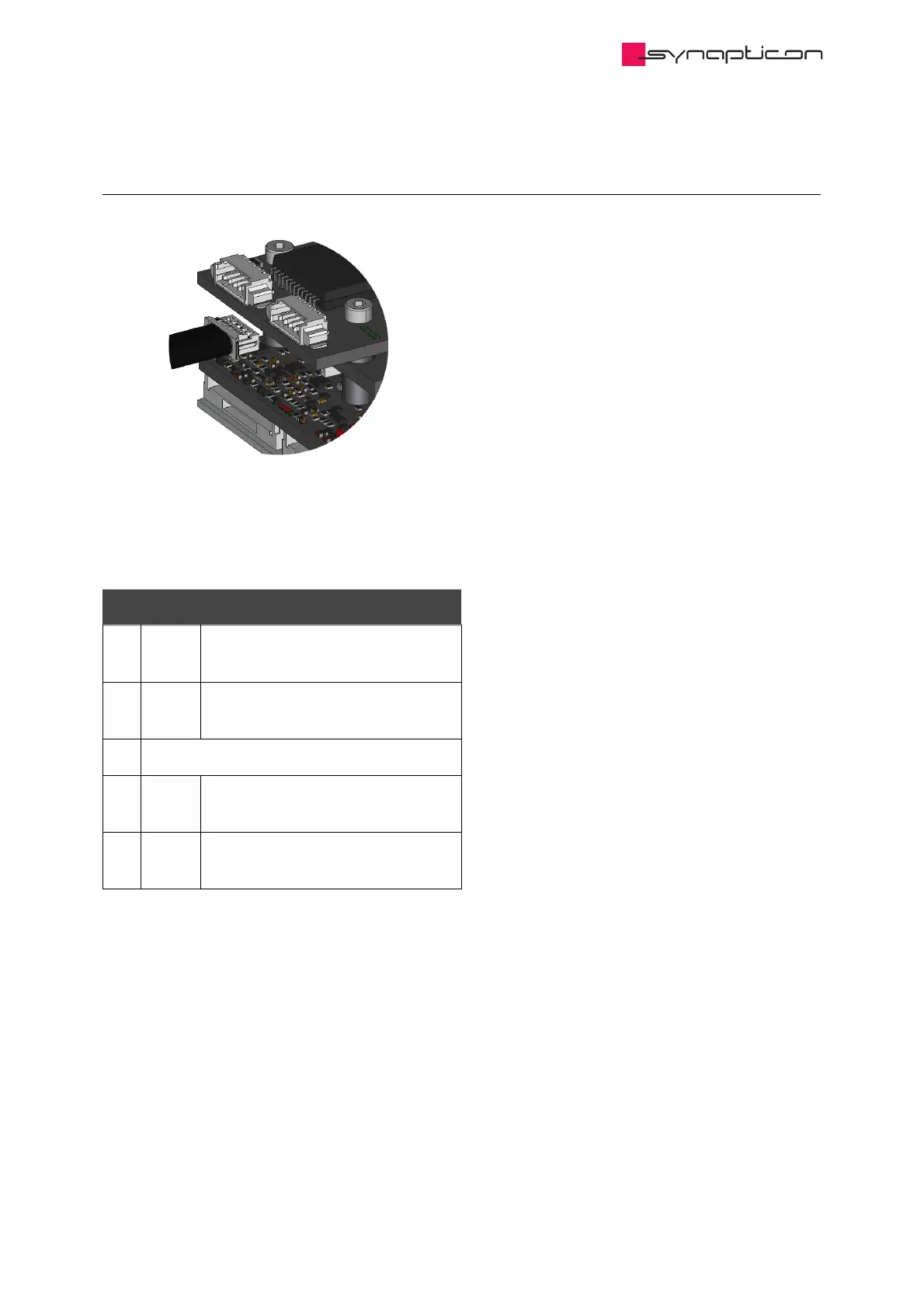

1.3.3.6 EtherCAT port
1.3.3.6.1 EtherCAT IN Port
Pin Name Function
1 * TX+ Differential transmit pair, positive
line
2 TX- Differential transmit pair, negative
line
3 Shield
4 RX+ Differential receive pair, positive
line
5 RX- Differential receive pair, negative
line
* Pin 1 is on left
Hardware Manuals / SOMANET Node / SOMANET Node rev.
D.3/D.4
© 2020 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.2.0 | Build: 2020-10-02 18/27
