Synesso MVP - Side Panel Access Procedures


10
MVP&MVPHydra‐2PieceSidePanels

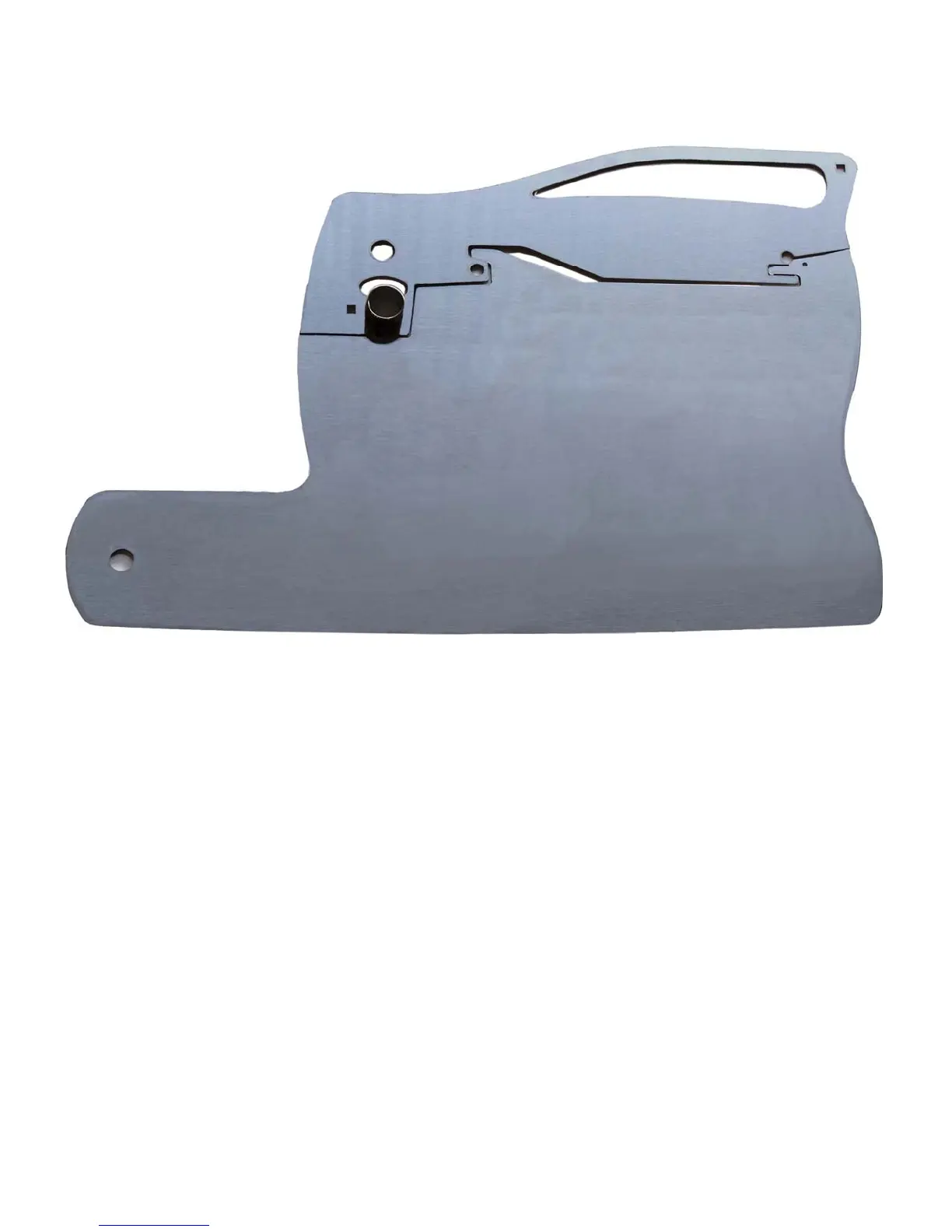

Thissidepanelisshownwiththetrimplatesremoved,todisplaythewaythelowerpanelinterlockswith
theupperpanel.
WhenremovingtheLowerSidePanelfromtheespressomachine:
 Loosenthe2sidepanelmounngbolts,butdonotremove.
 RemovetheThumbScrewfromthedraintray
 Pushthepaneltothebackofthemachinewhileliingslightlyup
Thisallowstheusereasyaccesstothedrainbox&allowsthetechnicianeasyaccesstoallwatercontrol
valvesonthewaterinlet(right)sideandtothelevelprobesandthermalswitchesontheleside.
Forthetechniciantoaccessthesteamvalve,theUpperPanelmustberemoved.
WhenremovingtheUpperPanelfromtheespressomachine:
 Removethe2sidepanelmounngboltscompletely.
 Eachboltisthreadedintoaplatefastenerinsidetheframe.Be careful not to lose the fasteners.
 TheSafariRackissuspendedby,butnotthreadedonto,shortboltsoneachsidepanel.*The Safari
Rack needs to be supported while removing the Upper Panel.
