Synesso Sabre User Manual

9

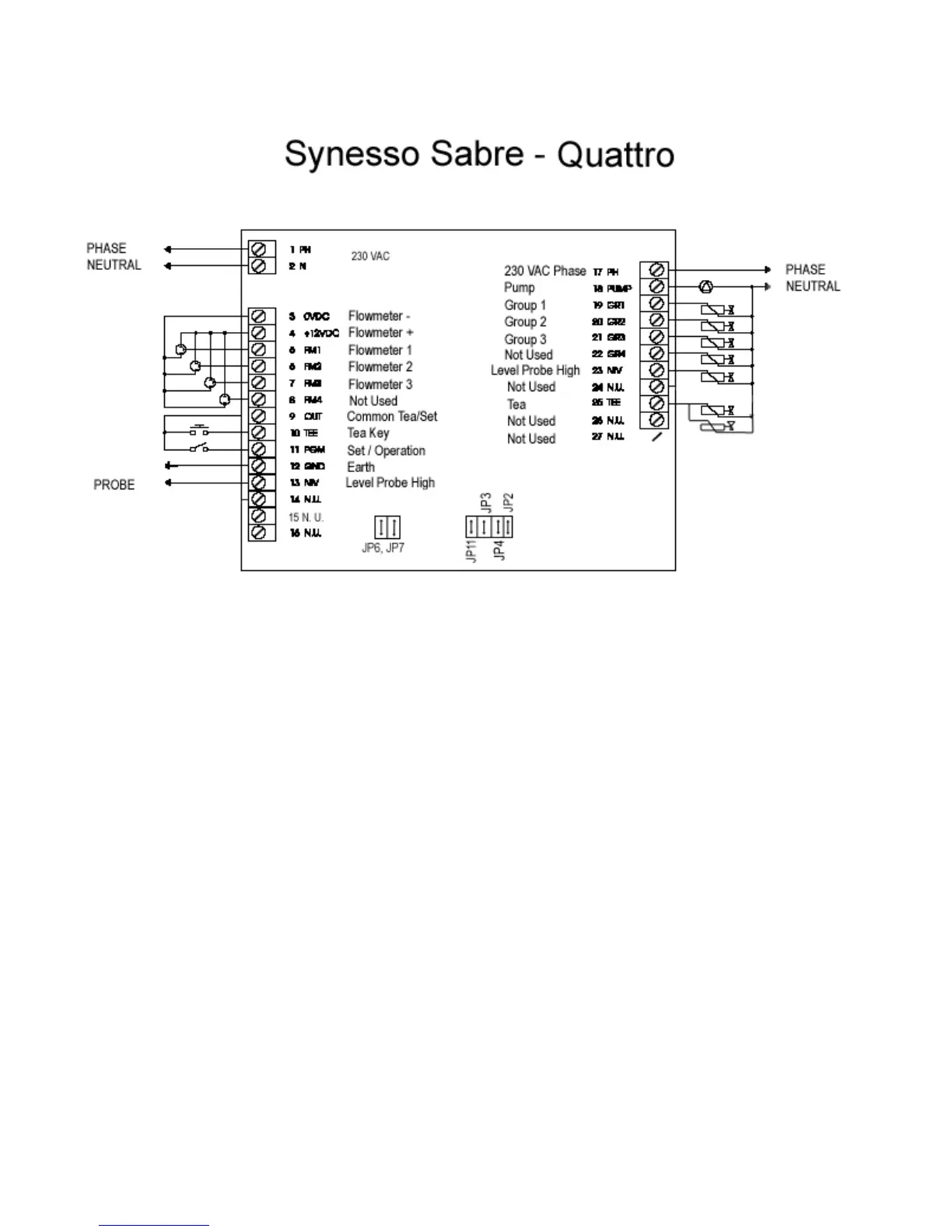

1B. Quattro - Terminal Assignment & Diagram (3 Group)
1. 1st main voltage terminal. The phase is usually connected here (L1)
2. 2nd main voltage terminal. The neutral conductor is usually connected here (L2)
3. Earth to all flowmeters (-).
4. + Supply to all flowmeters (+)
5. Pulse input flowmeter # 1.
6. Pulse input flowmeter # 2.
7. Pulse input flowmeter # 3.
8. Not Used
9. Common tea/set. Common return line for the tea key and the Set/Operation switch
10. Hot water Tea key Terminal. The return line is connected to terminal 8
11. Set/Operation switch Terminal. The return lead is connected to terminal 8.
12. Earth Terminal Important: Please read the section "EARTHING" in this manual.
13. Steam Level Probe High.
14. Not Used.
15. Not Used.
16. Not Used.
17. Common lead for contact assemblies. (L1)
18. Pump Control Terminal. To the pump relay
19. Group 1 Control Terminal Relay contact to the solenoid of group 1
20. Group 2 Control Terminal Relay contact to the solenoid of group 2
21. Group 3 Control Terminal Relay contact to the solenoid of group 3
22. Not Used.
23. Level probe High. Control Terminal Relay contact to fill solenoid
24. Not Used.
25. Not Used.
26. Not Used.
