Synology DS2422+ - Page 12

12
Chapter 2: Hardware Setup
3

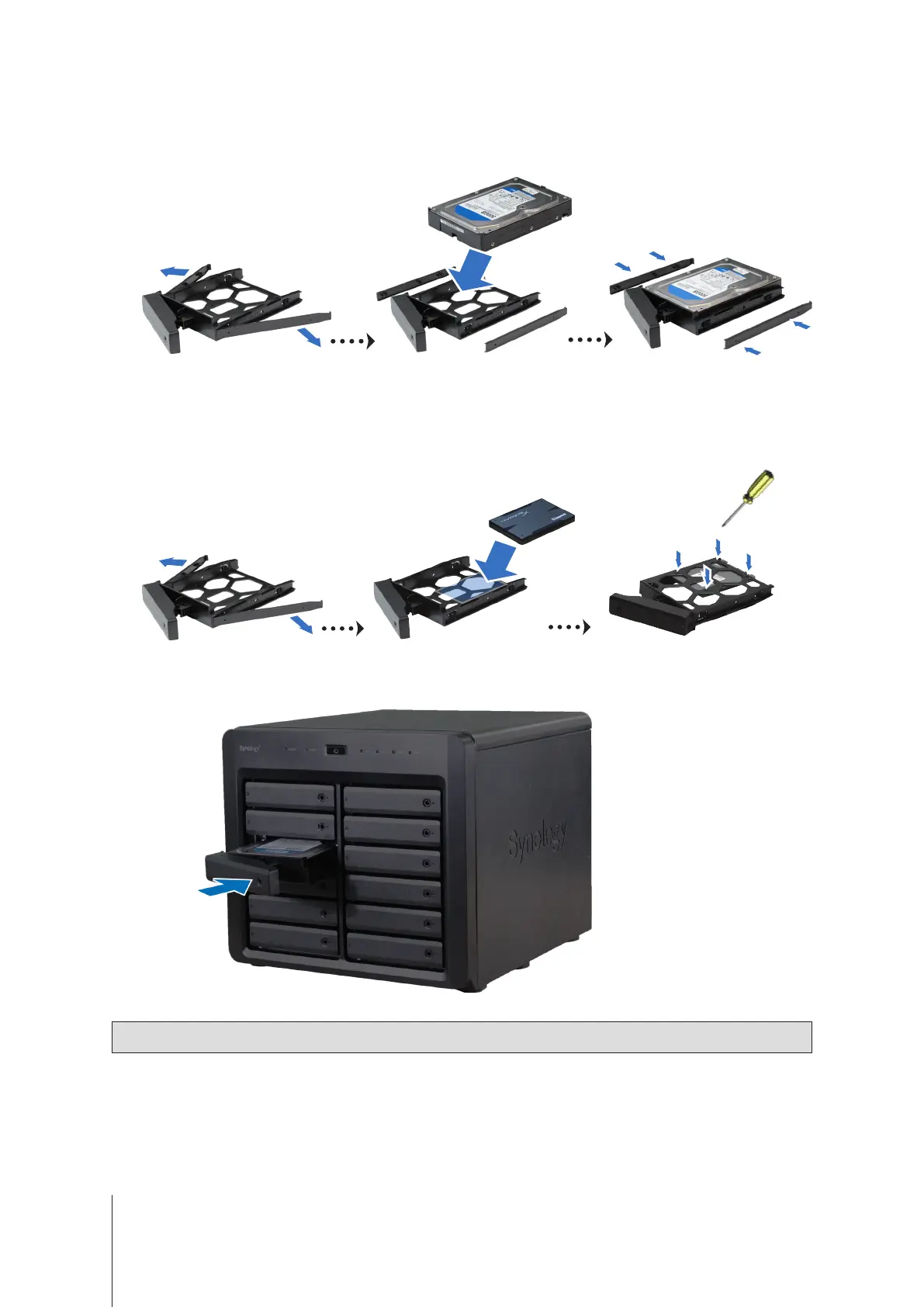

Load drives in the drive trays.
•
For 3.5" drives:
Remove the fastening panels from the sides of the drive tray. Place the drive in the drive
tray. Then insert the fastening panels to secure the drive in place.
•
For 2.5" drives:
Remove the fastening panels from the sides of the drive tray and store them in a safe
place. Place the drive in the area of the drive tray indicated by a blue rectangle below. Turn the tray upside
down and tighten the screws to secure the drive in place.
4
Insert the loaded hard drive tray into the empty hard drive bay and push it into position by the upper half of the
handle.
DS2422+
Note:
Make sure that the drive tray is completely inserted. Otherwise, the drive might not function properly.
