Chapter 2: Hardware Setup
c

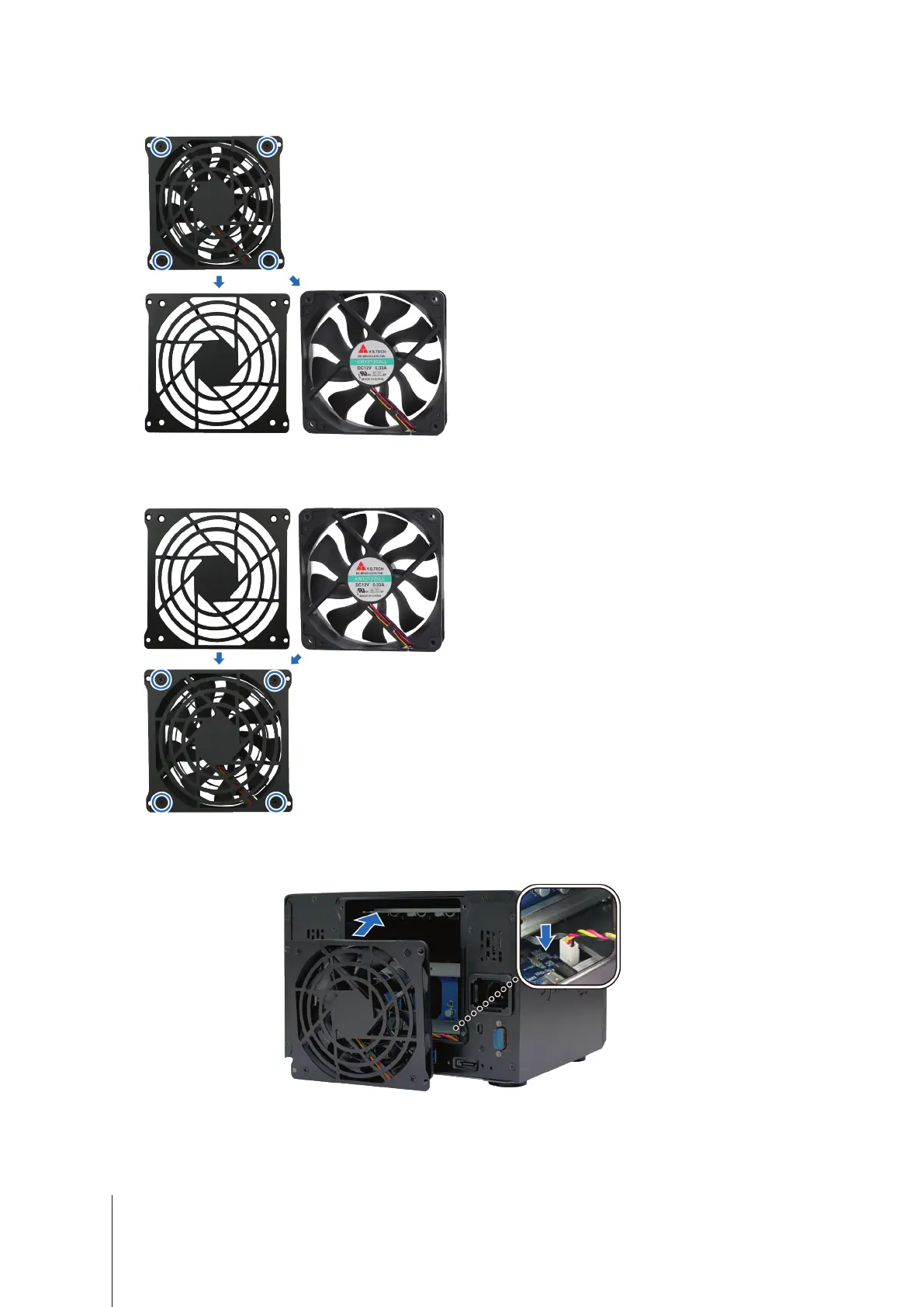

Remove the 4 screws that secure the malfunctioning fan, and then remove the fan.
4
Install the new fan:
a
Replace the malfunctioning fan with a good one (with the fan cable within the fan pointing at the bottom-right
corner), and then tighten the 4 screws to secure the new fan.
b
Connect the fan cable to the connector located near the bottom of the fan socket, and then replace the fan
panel.
5
Replace and tighten the 4 screws you removed in step 2.
6
Reconnect the cables you removed in step 1, and then press and hold the power button to turn on your
Network Video Recorder.
