Chapter 1: Before You Start
Synology Network Video Recorder at a Glance

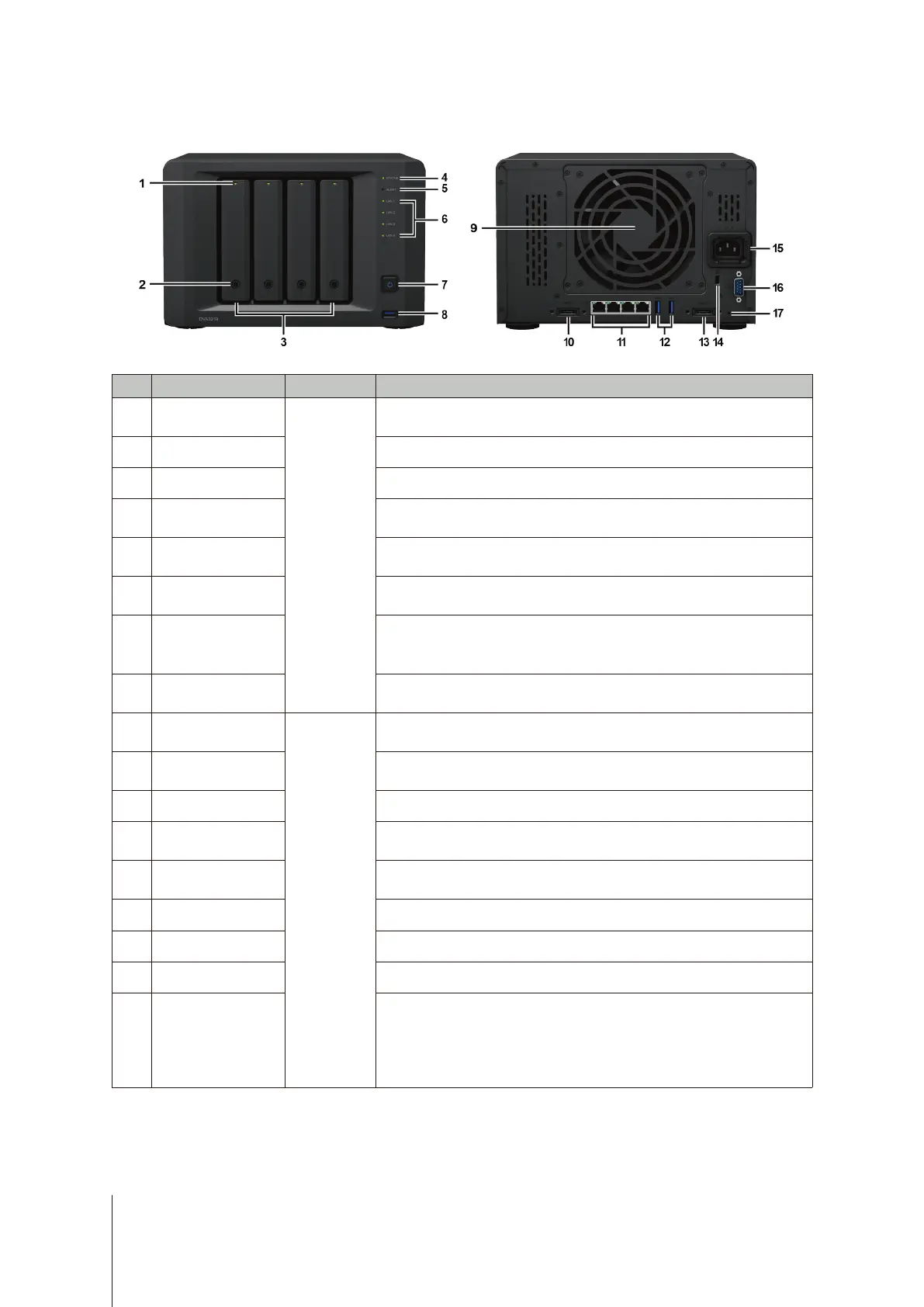

No. Article Name Location Description
1
Drive Status Indicator
Front
Displays the status of the installed drive. For more information, see "Appendix
B: LED Indicator Table".
2
Drive Tray Lock Lock or unlock drive trays.
3
Drive Tray Install drives (hard disk drives or solid state drives) here.
4
Status Indicator
Displays the status of the system. For more information, see "Appendix B:
LED Indicator Table".
5
Alert Indicator
Displays warnings regarding fan or temperature. For more information, see
"Appendix B: LED Indicator Table".
6
LAN Indicator
Displays the status of the network connection. For more information, see
"Appendix B: LED Indicator Table".
7
Power Button
1. Press to power on the Network Video Recorder.
2. To power o󰀨 the Network Video Recorder, press and hold until you hear a
beep sound and the Power LED starts blinking.
8
USB 3.0 Port
Connect external hard drives or other USB devices to the Network Video
Recorder here.
9
Fan
Back
Disposes of excess heat and cools the system. If the fan malfunctions, the
Network Video Recorder will emit a beeping sound.
10
eSATA Port 1
Connect external SATA drive or Synology Expansion Unit
1
to the Network
Video Recorder here.
11
LAN Port Connect network cables here.
12
USB 3.0 Port
Connect external hard drives or other USB devices to the Network Video
Recorder here.
13
eSATA Port 2
Connect external SATA drive or Synology Expansion Unit
1
to the Network
Video Recorder here.
14
Kensington
Security Slot
Attach a Kensington security lock here.
15
Power Port Connect the AC power cord here.
16
COM Port Connect a POS device here.
17
RESET Button
1. Press and hold until you hear a beep sound to restore the default IP
address, DNS server, and password for the
admin
account.
2. Press and hold until you hear a beep sound, then press and hold again
until you hear three beep sounds to return the Network Video Recorder
to “Not Installed” status so that DiskStation Manager (DSM) can be
reinstalled.
1
For more information about Synology Expansion Unit supported by your Network Video Recorder, please visit
www.synology.com
.
