PCIe IP Prototyping Kit Installation Guide Status LEDs
Supervisor Design – Loaded OK
ERROR Stop
Supervisor Firmware – Check and Load OK
Error Stop
Power Modules – Check OK
Error Stop
Slave Systems Version – Check OK
Error Stop
Startup Project – Load Yes
No Continue
Startup Project – Loaded Successfully Yes
Error Continue

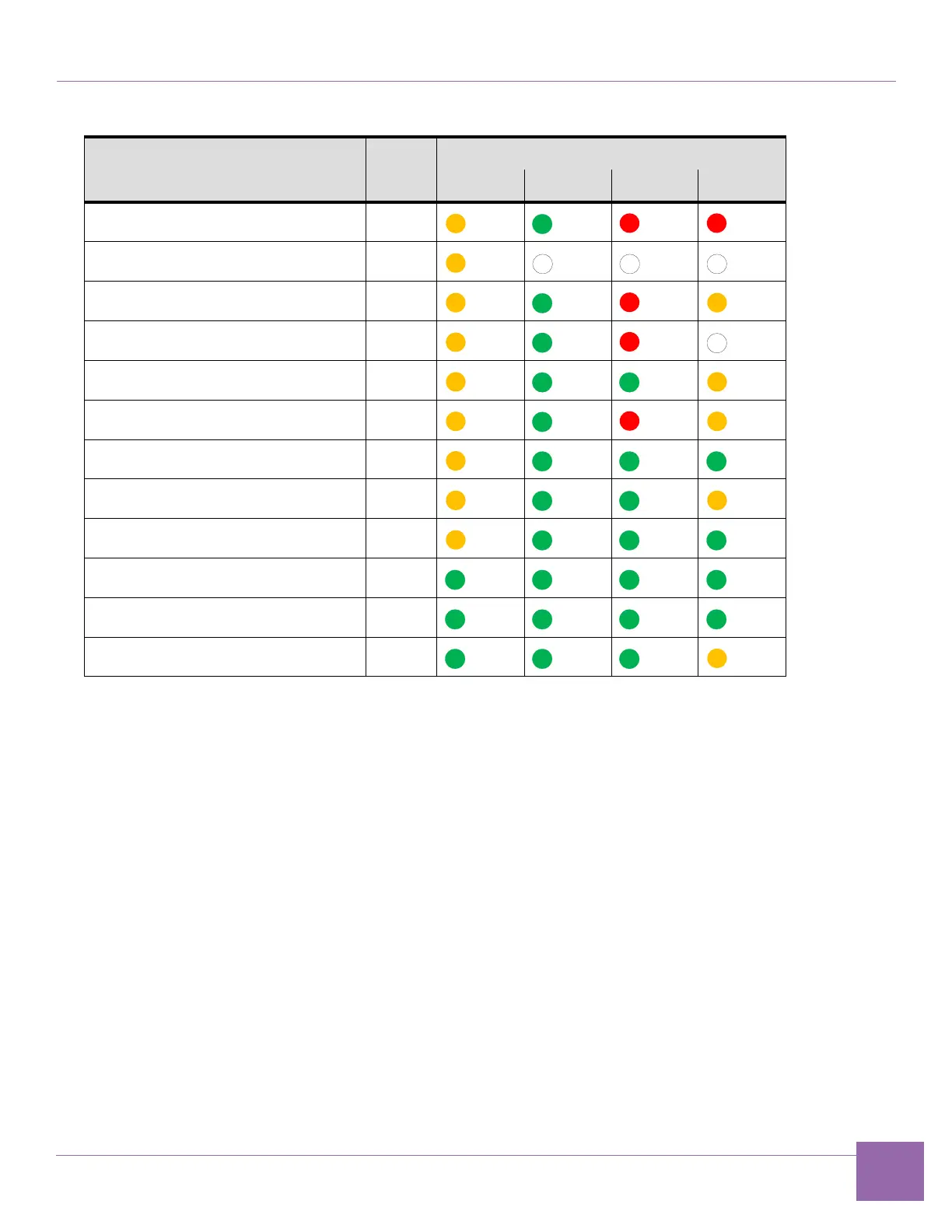

Table A-2 HAPS-80 Power-up Supervision LEDs (Continued)
LED
Power-up Procedure Action RESET READY ALERT PWR
To Next Page
