PCIe IP Prototyping Kit Installation Guide Setting Up Hardware Components
1.1 Contents of PCIe IP Prototyping Kit
This section provides details about the contents of the prototyping kits.
Figure 1-1 shows PCIe Root Complex IP Prototyping Kit recommended components for the kits using
Synopsys PHY on HAPS-80

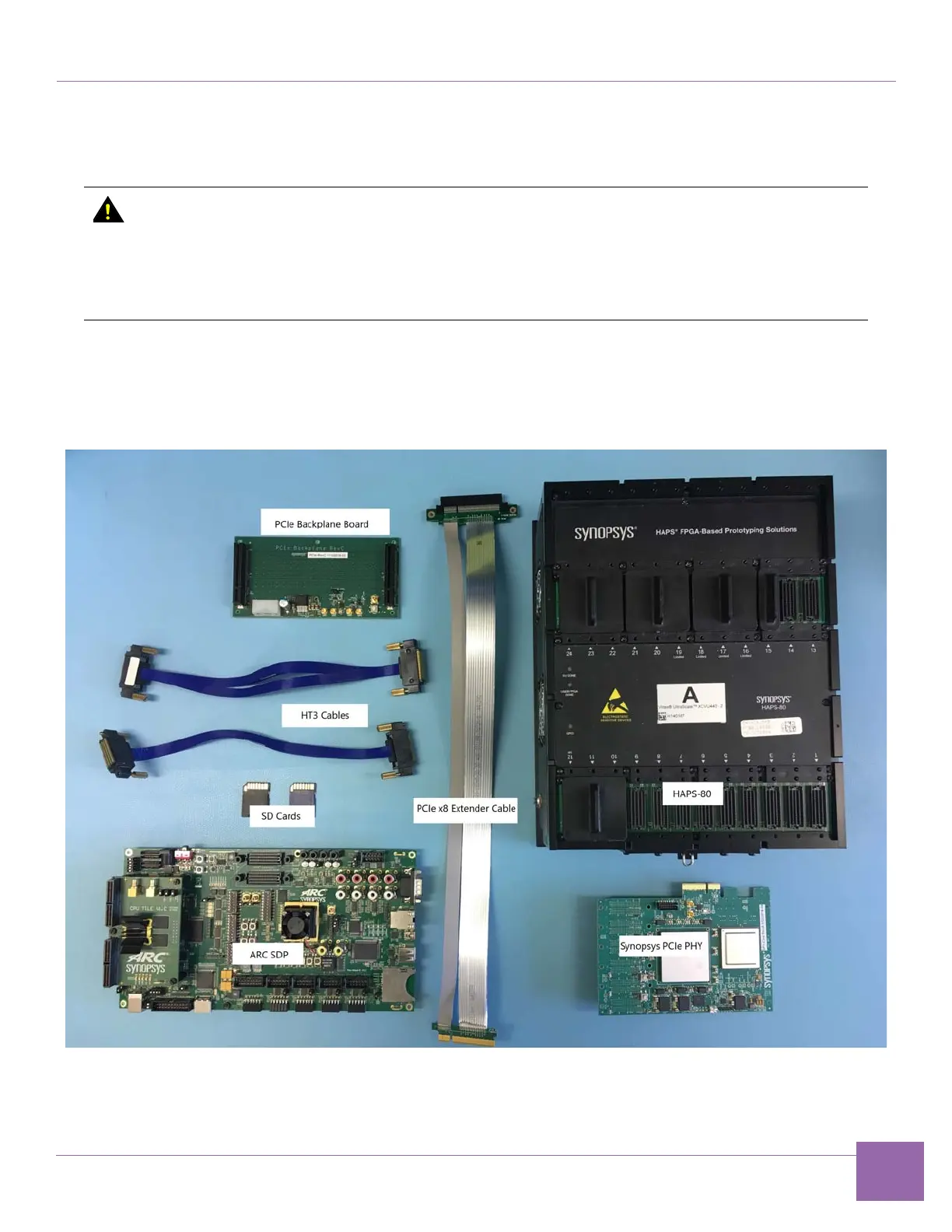

Figure 1-1 PCIe Root Complex IP Prototyping Kit Components with Synopsys PHY on HAPS-80
Attention
All PCIe IP Prototyping Kits were developed for use with HAPS FPGA board.
The HAPS, ARC SDP Mainboard and the PHY Daughter Card contain static sensitive
devices
. Handle with care.
Electrostatic discharge (ESD) can damage the IP Prototyping Kit components. Perform
the procedures described in this section at an ESD workstation using an anti-static wrist
strap and a conductive foam pad.
