Setting Up Hardware Components PCIe IP Prototyping Kit Installation Guide
Figure 1-2 shows the PCIe Endpoint IP Prototyping Kit recommended components for the kits using
Synopsys PHY on HAPS-80.
Figure 1-3 shows the PCIe Root Complex IP Prototyping Kit recommended components for the kits using
the Xilinx PHY on HAPS-80.

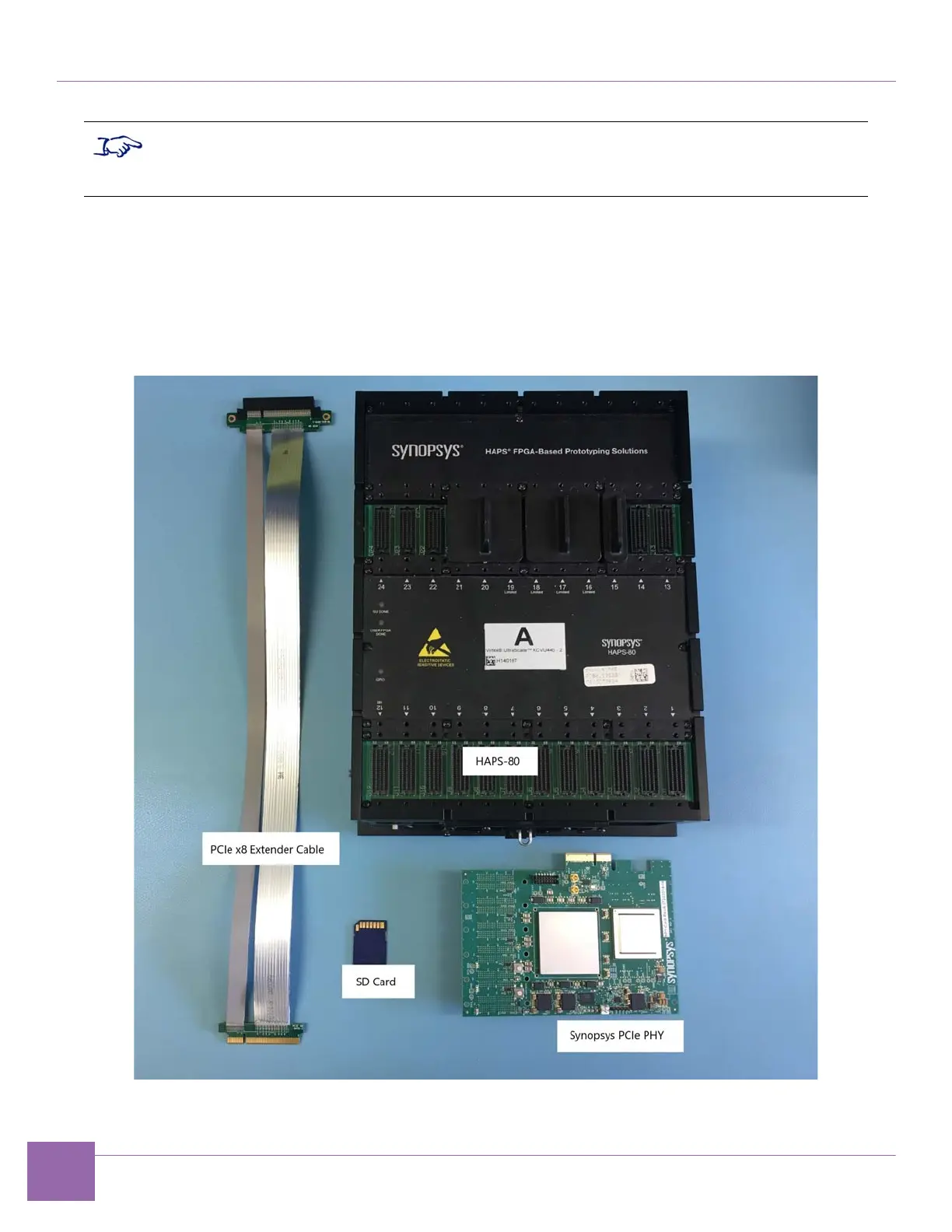

Figure 1-2 PCIe Endpoint IP Prototyping Kit Components with Synopsys PHY on HAPS-80
Note
NoteNoteNote
The Synopsys PCIe PHY can be a Synopsys C10 PHY, a Synopsys E16 PHY or a E32 PHY
board.
See Table 1-2 for more details.
