Synrad p250 - Finished Setup

18 p250 Laser Quick Start Guide Version 3.1
250
p250 Quick Start Guide
To
DC Power
Source
To Laser
BNC port
To PC
Ethernet
port
To Chiller
From
Chiller
To User
I/O
TCP/IP
Interface
Power
Supply
Gas
Purge
To Chiller
From Chiller
(not shown)

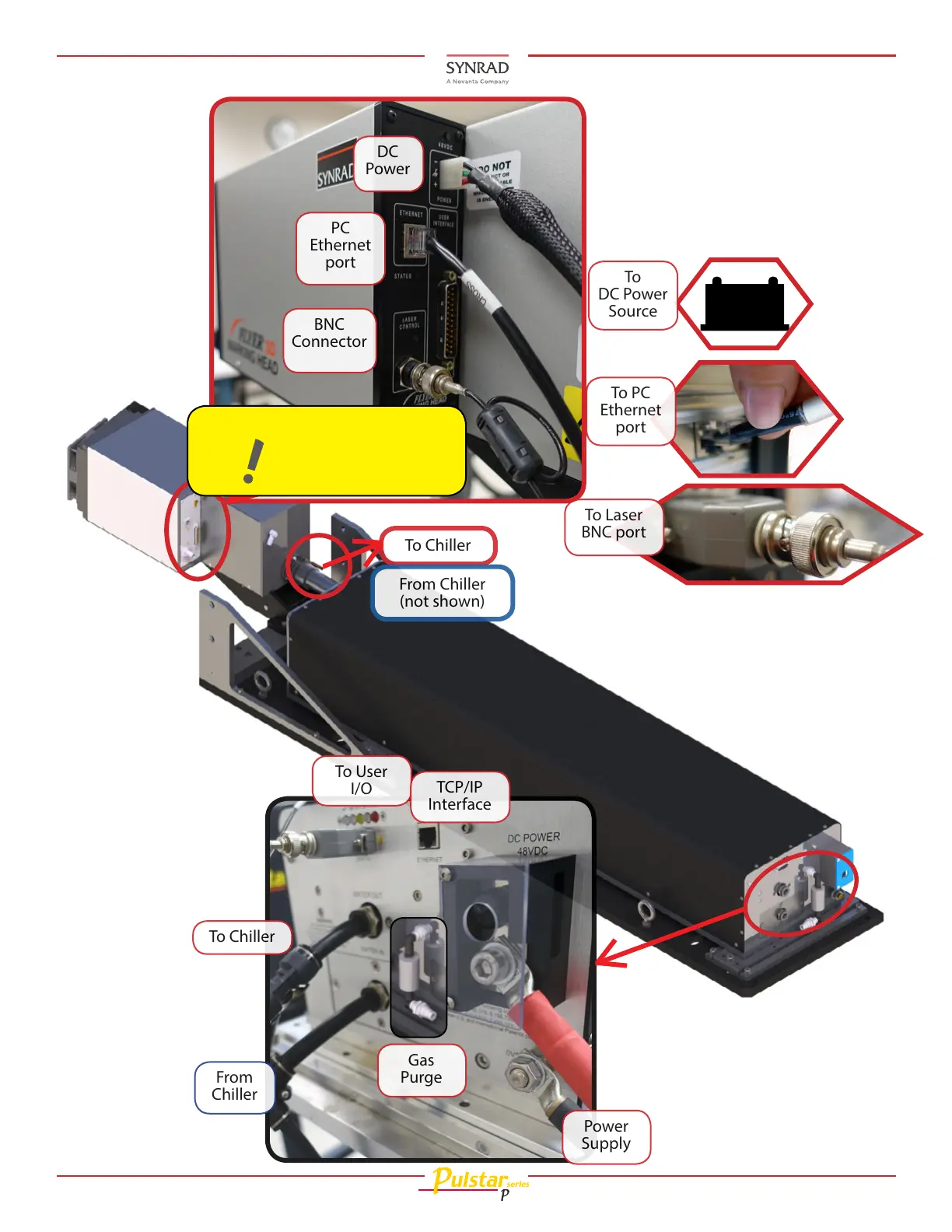

Finished Setup:
BNC
Connector
DC
Power
PC
Ethernet
port
Important
Note:
Ferrite bead adjacent
to Marking Head.
