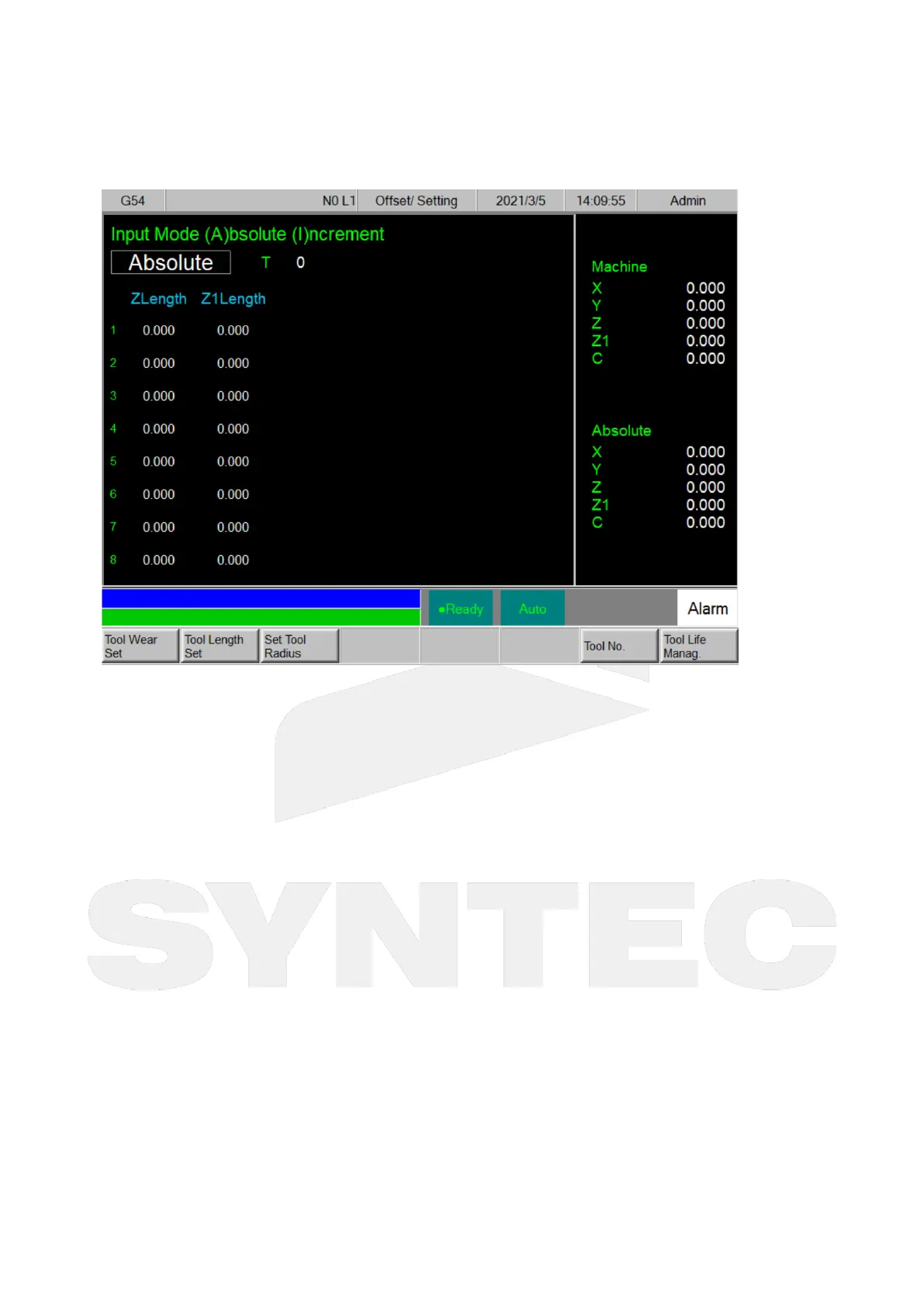

4.7.4 Multi Z-axis tool table:
Path
5key, 8key: F3 Offset/Setting → F2 Tool Set
10+8 key：G3 Offset/Setting → F2 Tool Set
Valid Version
From 10.118.11
Function
Enable condition: Tool length compensation mode using H-code multi-axis (Please refer to
Pr3816 *Tool length compensation mode)
Multiple Z-axes can be displayed and set at the same time.
The displayed axes must meet the following three conditions at the same time:
Must be Z-axis
Must be a linear axis
The axis must be visible (not hidden)
Provides 96 sets of tool setups.
Operation method
Move the cursor with arrow keys【↑】【↓】【←】【→】
Use 【PageUp】【PageDown】 to switch the page.
Input method
Normally applies absolute mode for tool nose or tool length compensation.
Normally applies incremental mode for cutter radius wearing compensation or tool length
wearing compensation.
Input with axis name is not supported.ex: Z10.、Z1=20.
