7
The side guides should be on proper position to hold the paper stack. The paper
press is used to hold the paper on the top to avoid feeding failure as the top paper
is flowing up by the blow flow. To get a smooth feeding, the blow flow, separator
gap and stack height should be adjusted in cooperation.

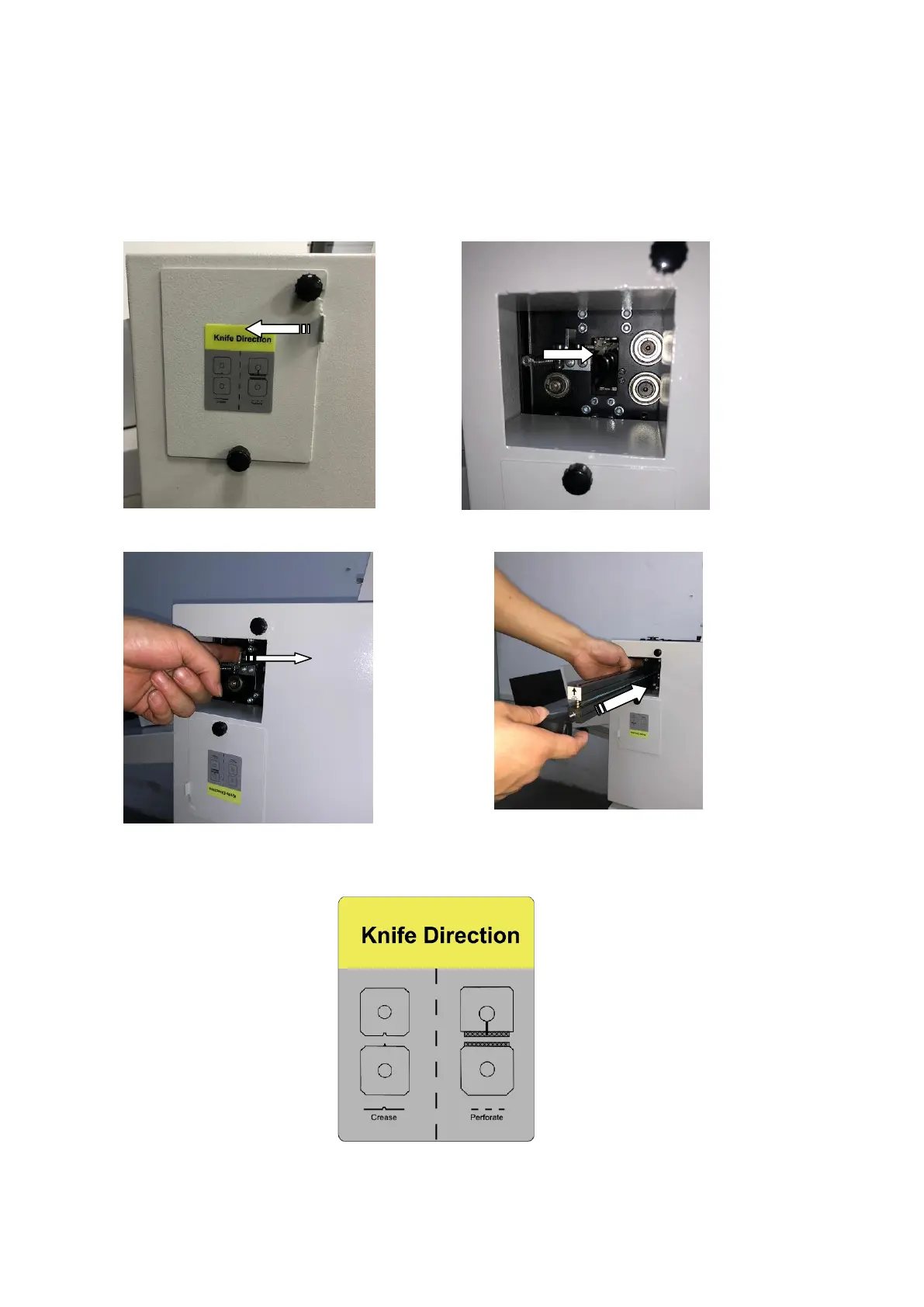

3.7 Installation of Blade
Step 1: Loosen the 2 screws on the blade gate and turn the blade to left to open it.
Step 2: Push the lever of the blade lock Step 3 :Push the blade all the way into the
to right. machine.
The installation direction refers to the label on the blade gate or on the blade.
To Next Page
