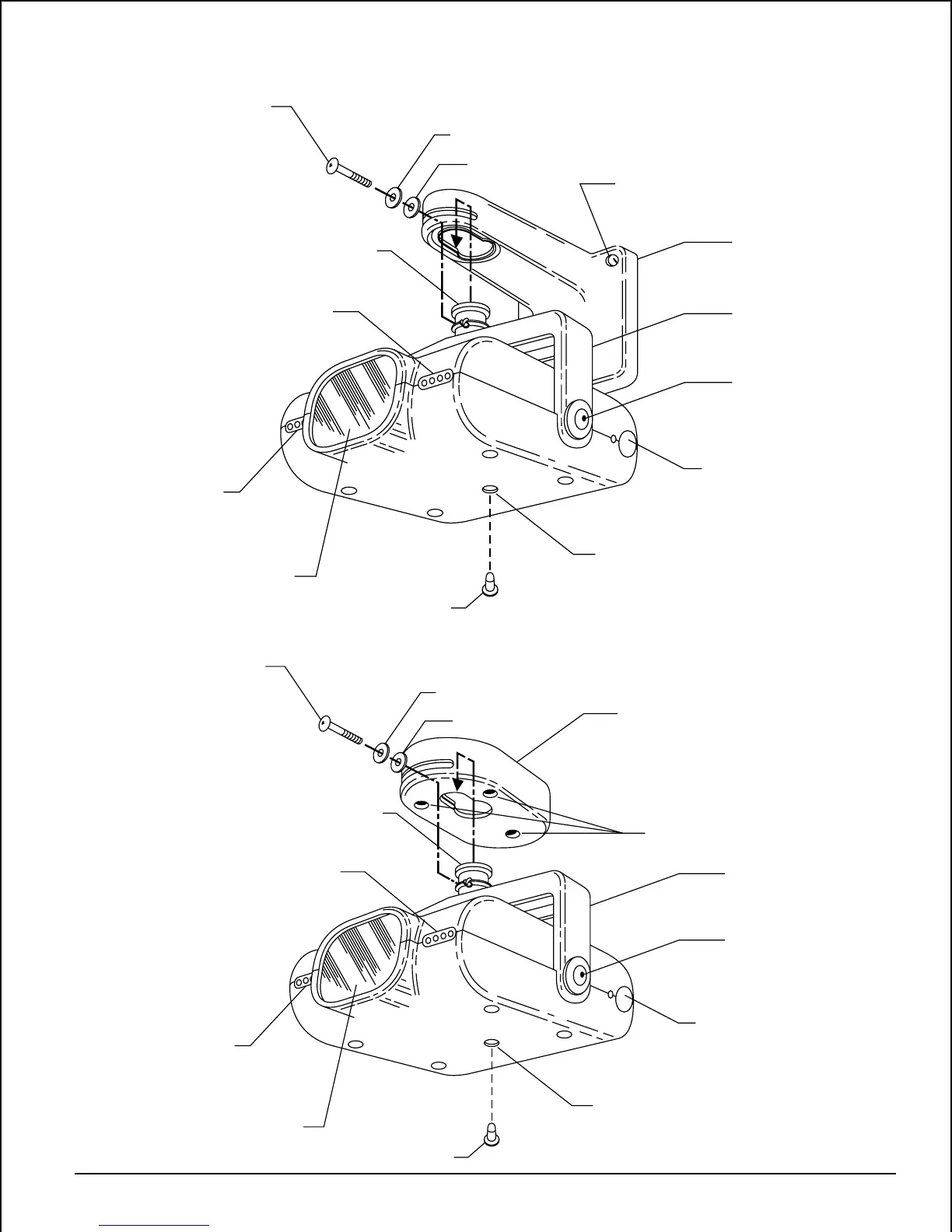

Figure 12. Wall mounting:
HORIZONTAL
ADJUSTMENT SCREW
(#10-24 x 1-3/8 in.)
METAL WASHER
MOUNTING HUBMOUNTING HUB
ALIGNMENT
LEDs
STATUS
LEDs
(RECEIVER ONLY)
BEAM LENS
HOLE PLUG
ALIGNMENT ADJUST
POTENTIOMETER
(RECEIVER ONLY)
CABLE EGRESS
HOLE PLUG. USED TO
PLUG UNUSED HOLE.
VERTICAL
ADJUSTMENT
SCREWS (2)
“U” BRACKET
WALL MOUNTING
BRACKET
MOUNTING HOLE
PLASTIC WASHER
A78-2034-01
Figure 13. Ceiling mounting:
MOUNTING HUBMOUNTING HUB
ALIGNMENT
LEDs
STATUS
LEDs
(RECEIVER ONLY)
BEAM LENS
HOLE PLUG
ALIGNMENT ADJUST
POTENTIOMETER
(RECEIVER ONLY)
CABLE EGRESS
HOLE PLUG. USED TO
PLUG UNUSED HOLE.
VERTICAL
ADJUSTMENT
SCREWS (2)
“U” BRACKET
HORIZONTAL
ADJUSTMENT SCREW
(#10-24 x 2-1/4 in.)
CEILING MOUNTING
BRACKET
MOUNTING HOLES
METAL WASHER
PLASTIC WASHER
A78-2033-01
