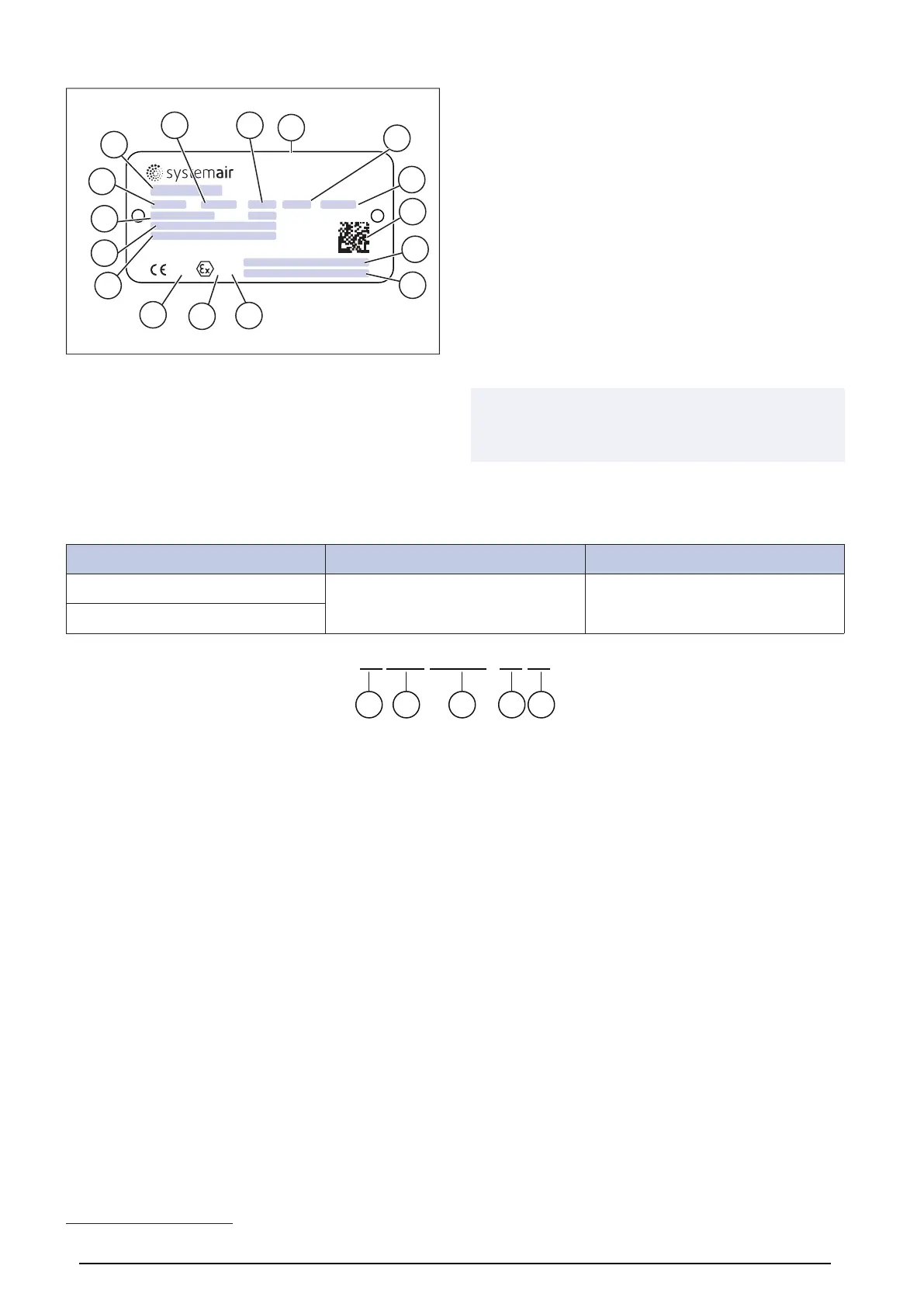

1.6 Name plate
Systemair Sverige AB
Industrivägen 3
739 30 Skinnskatteberg SE
www.systemair.com
The PTC shall be connected to a triggering device
certified acording to ATEX directive
2460 II 2G
V ~Hz W A rpm
IP
kg
°C
V
7
1
2
5
4
3
8
9
10
11
12
13
6
15
16
14
1. Type designation: Product name, dimension and motor
type. Refer to 1.6.2 Type designation.
2. Frequency, Hz
3. Input power, W
4. Country of production
5. Current, A
6. Revolutions per minute
7. Voltage, V
8. IP class, enclosure class
9. Ambient temperature
10. Speed controllable
11. Identification number of Notified Body
12. Equipment group II is intended for use in areas with ex-
plosive gas, except mining gas.
13. Category 2, zone 1, G = potentially explosive gas mix-
ture can be occasionally expected to during normal
operation.
14. Scannable code
1
15. Explosion proof classification. Refer to 1.6.1 Classifica-
tion and Certification
16. Certification number. Refer to 1.6.1 Classification and
Certification
Note:
The data on the name plate applies to “standard air” that is
specified in the standard ISO5801.
1.6.1 Classification and Certification
Product name Certification Classification
DKEX 225–355
Presafe 17 ATEX 9970 X Ex eb IIB + H
2
T3 Gb
KTEX 50-30–70-40
Ex eb h IIB + H
2
T3 Gb
A B C D E
A. Explosion-protected material
B. Type of protection, e = increased protection against sparks
C. Apparatus group IIB (also applies to IIA)+H
2
also applies to hydrogen.
D. Temperature class T3, maximum surface temperature for fan housing and motor is 200 °C, can be used for gas mixtures
with ignition temperature exceeding 200 °C.
E. EPL, Equipment Protection Level.
3
1. Use a mobile device to scan the scannable code
