SystemAir DKEX 225-4

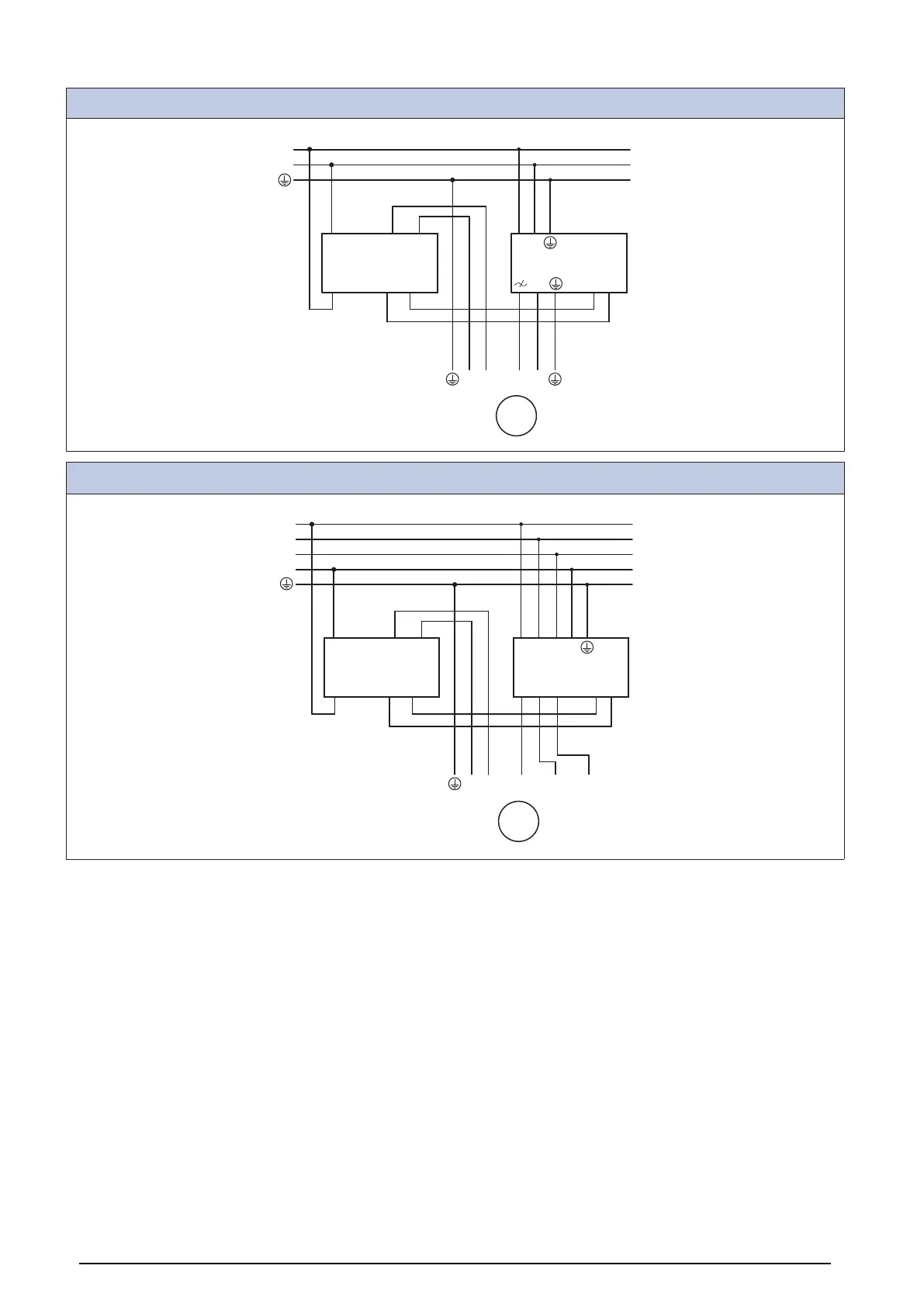

14.2 Wiring diagram for speed controller for ATEX motors
U-EK230E + RTRE
L
N
A1
A2
T2 T1
14 11 12
U-EK230E
L N
TP TP
M
1~ D/Y
L N
RTRE
N TK TK
U-EK230E + RTRD, RTRDU
L1
L2
L3
N
A1
A2
T2 T1
14 11 12
U-EK230E
L1 L2 L3
TP TP
M
3~ D/Y
L1 L2 L3 N
RTRD/U
U1 V1 W1 TK TK
