SystemAir DVEX Series Installation And Operating Instructions

Temperature Max. input power in proportion to nominal power in %
40 °C 100 °C
45 °C 95 °C
50 °C 90 °C
55 °C 85 °C
60 °C 80 °C
Table 6: Motor load
1
2
3
4 5
10
6
7
9
10

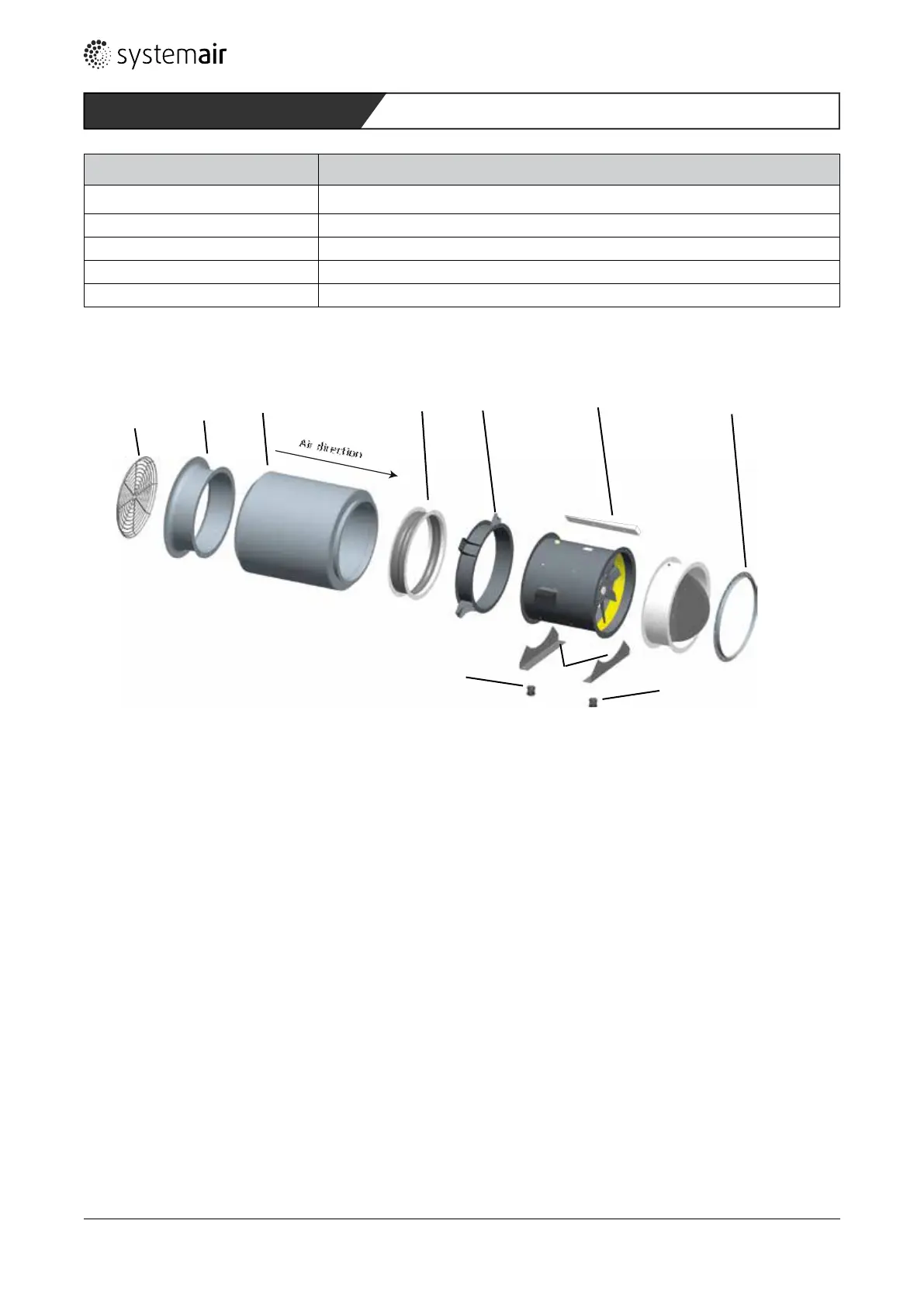

Fig. 3: Fans of the AXCBF-EX / AXC-EX series with accessories
Legende
1 SG Protection guard 6 MP (4x angle 90°) Mounting brackets up to size 1000
2 ESD-F Inlet cone 7 LRK Air operated damper
3 RSA Silencer 8 GFL Counterange
4 EV-AR/AXC Flexible connection 9 MFA Mounting feet
5 MPR Mounting ring 10 FSD (4x) AV Spring mounts
